DTC P0705: Transmission Range Sensor Circuit Mal-Function (PRNDL Input), P0850: Park/Neutral Switch Input Circuit: Wiring Diagram

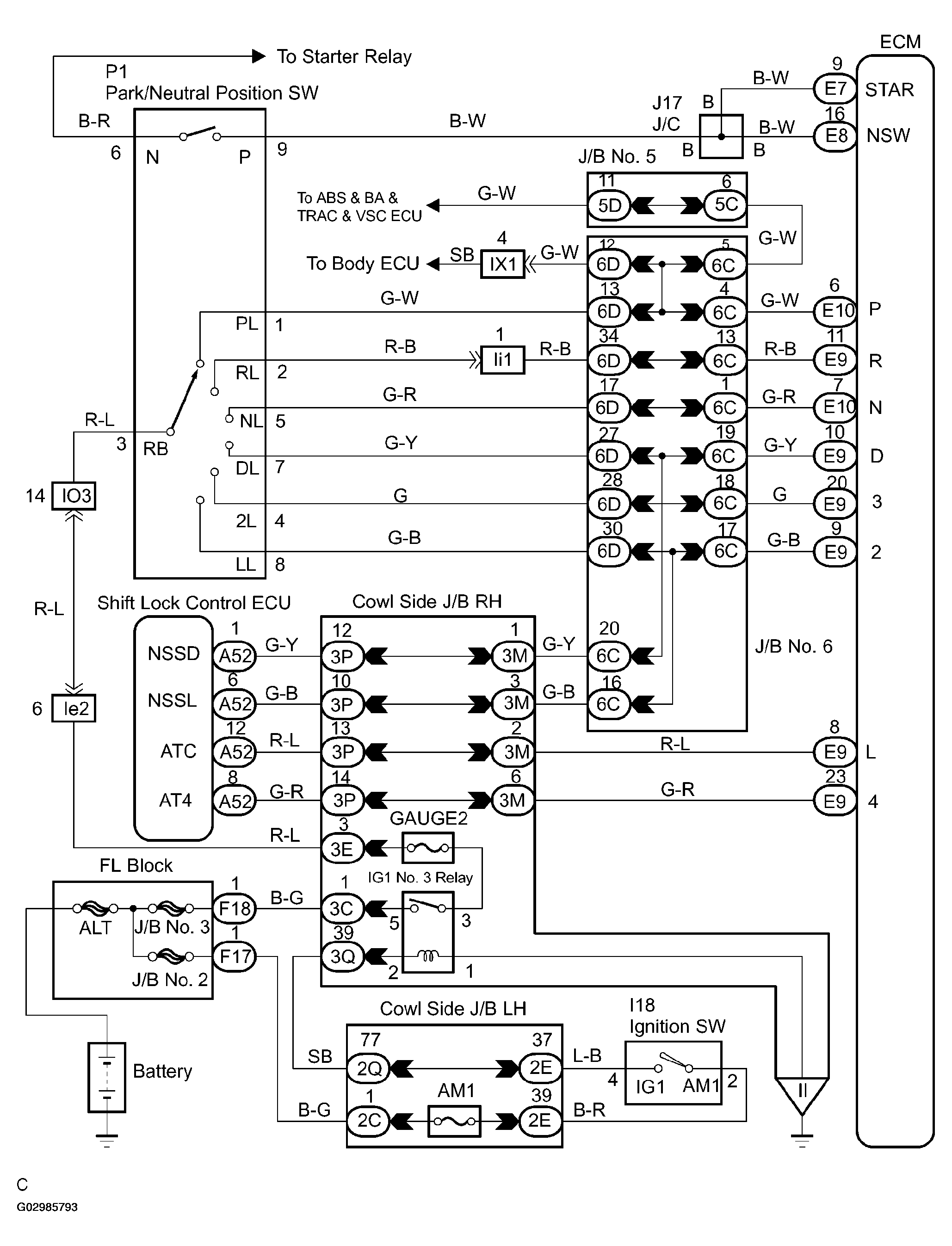

Fig 1: Transmission Range Sensor Wiring Diagram
G02985793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
