Typical Malfunction Thresholds

P0705:

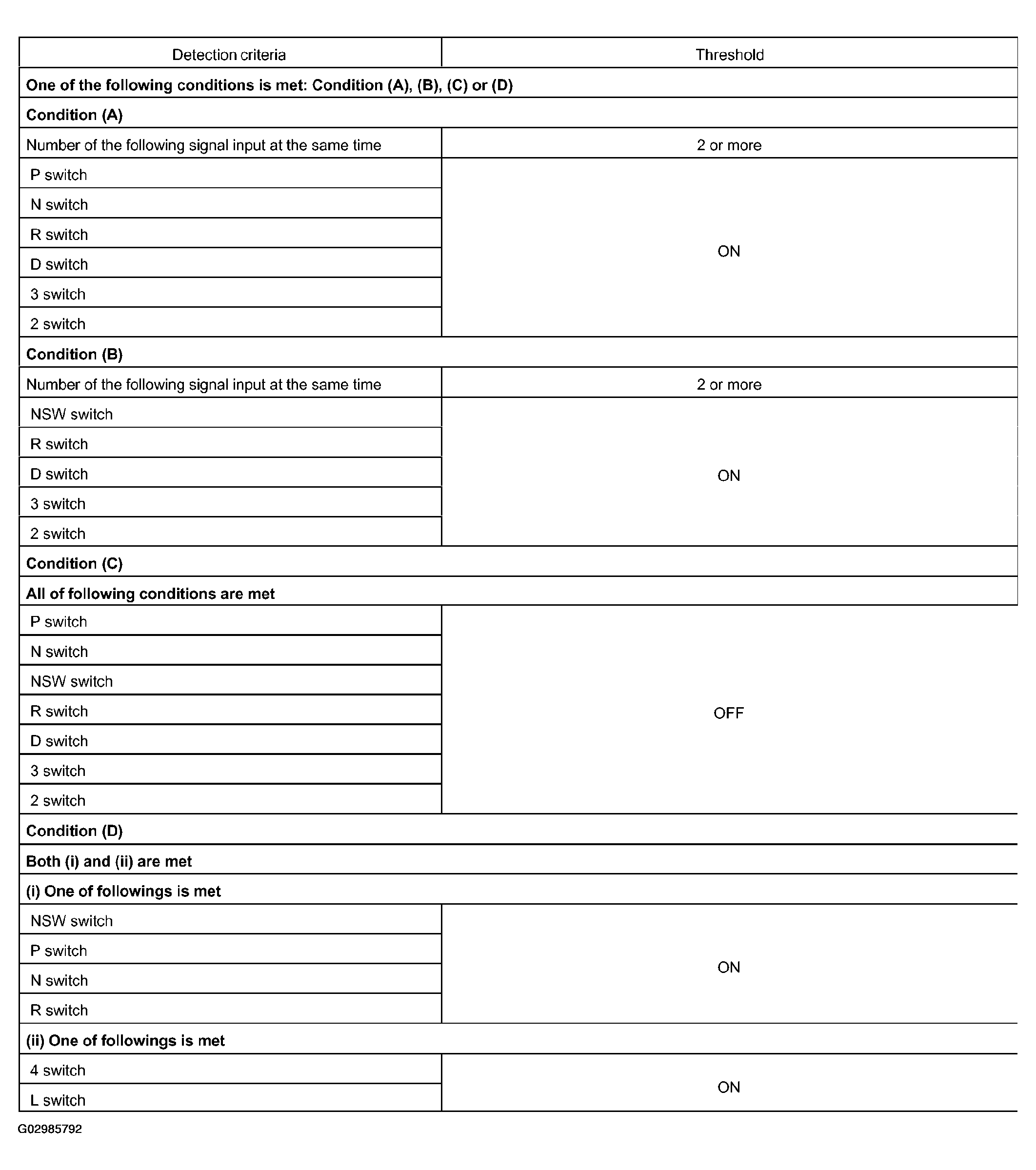

Fig 1: Typical Malfunction Thresholds Chart P0705
G02985792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

P0850:

TYPICAL MALFUNCTION THRESHOLDS P0850

Detection criteria Threshold
NSW signal ON
