Home >> Lexus >> 2005 >> LX 470 >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Auxiliary Emission Control Systems >> Emission Control >> Parts Layout And Schematic Drawing >> Drawing

Parts Layout And Schematic Drawing: Drawing

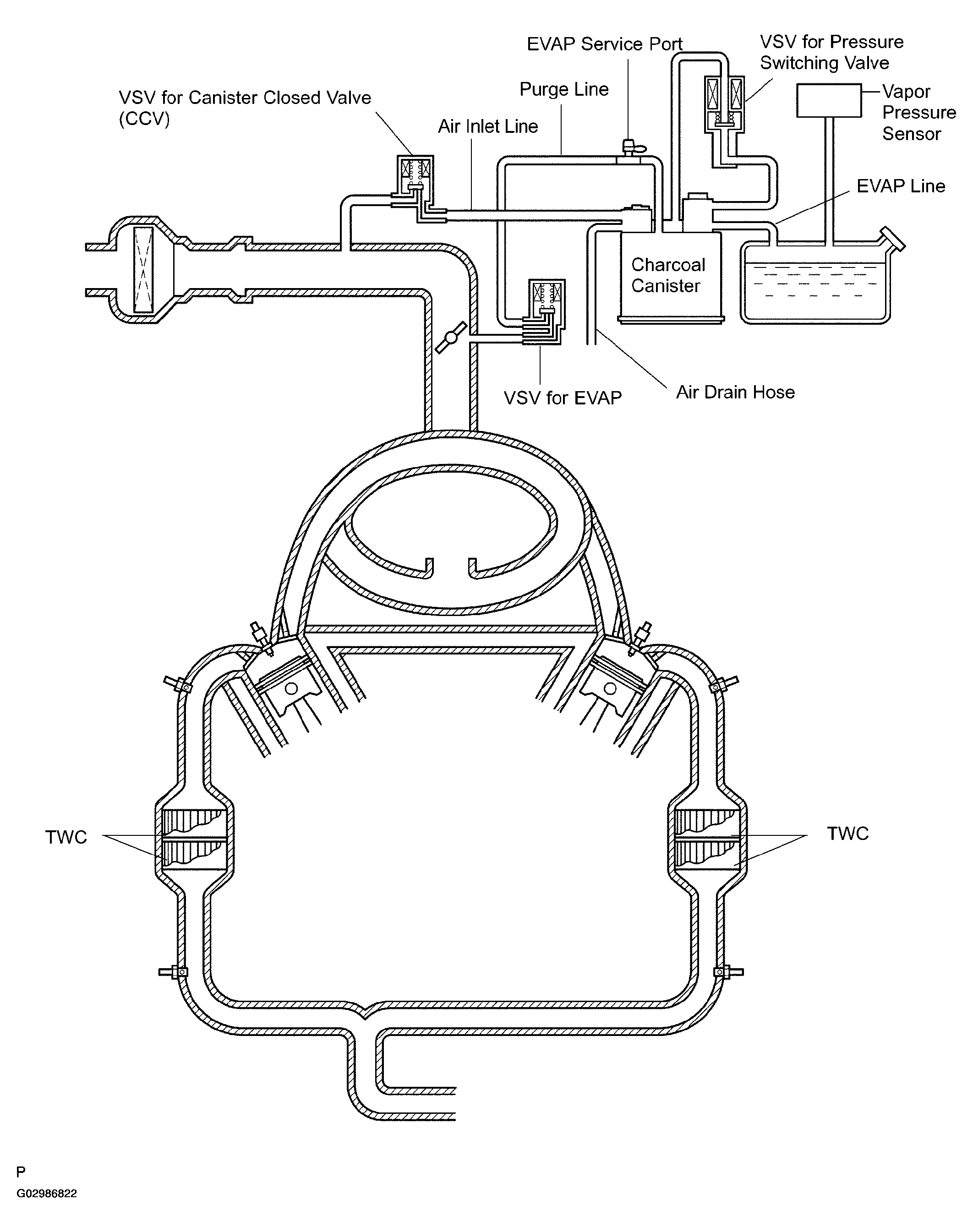

Fig 1: Identifying Schematic Diagram

G02986822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
