Power Source Circuit (Multi-Display Assembly): Wiring Diagram

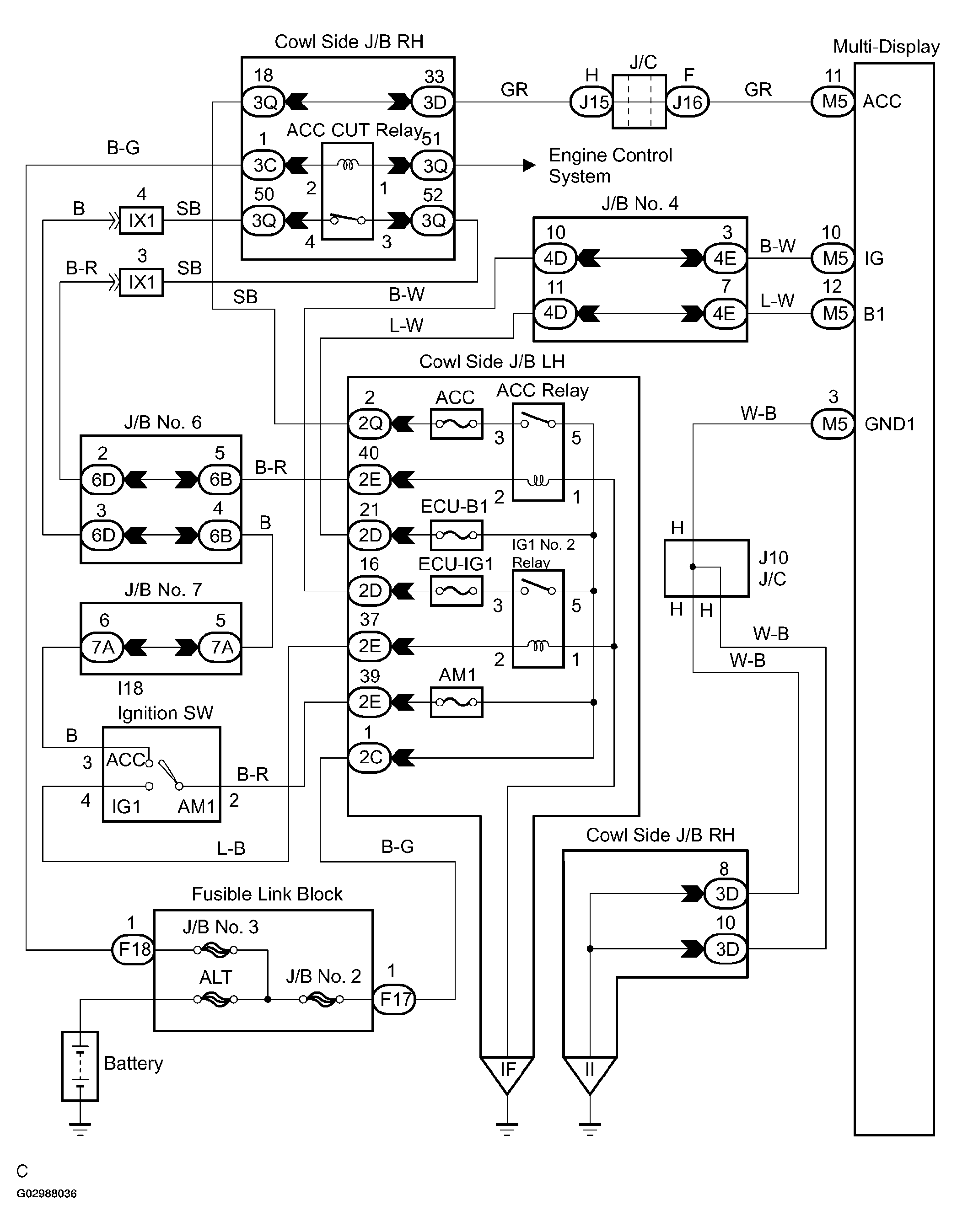

Fig 1: Power Source Circuit (Multi-Display Assembly) - Wiring Diagram

G02988036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
