System Diagram

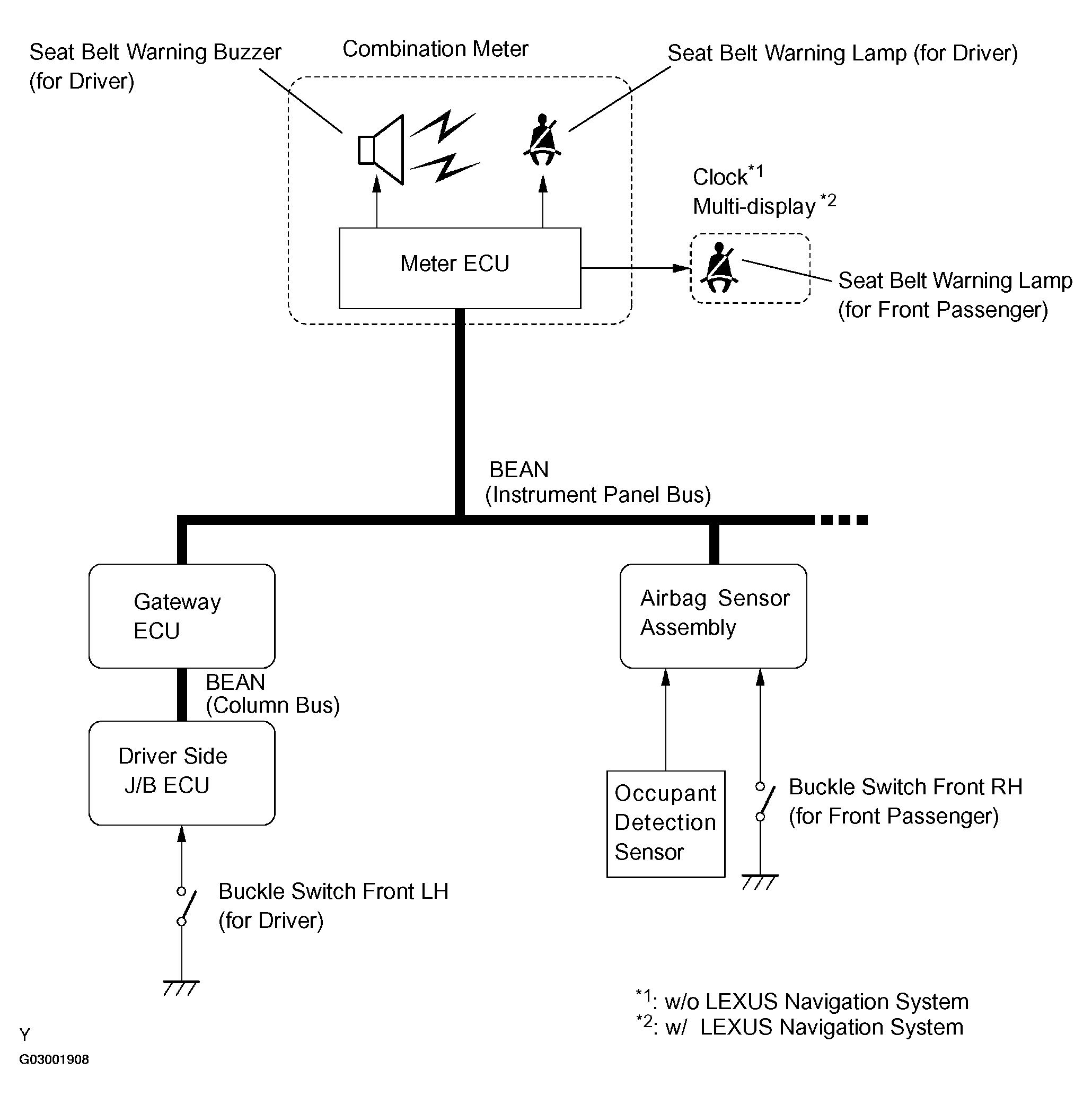

Fig 1: Identifying Seat Belt Warning System Diagram
G03001908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION

Sender Receiver Signal Line
Driver Side J/B ECU Meter ECU Driver seat belt buckle signal BEAN
Airbag Sensor Assembly Meter ECU Passenger seat belt buckle signal BEAN
Airbag Sensor Assembly Meter ECU Passenger occupant detection signal BEAN
