Seat Belt Warning System - Diagnostics: Location

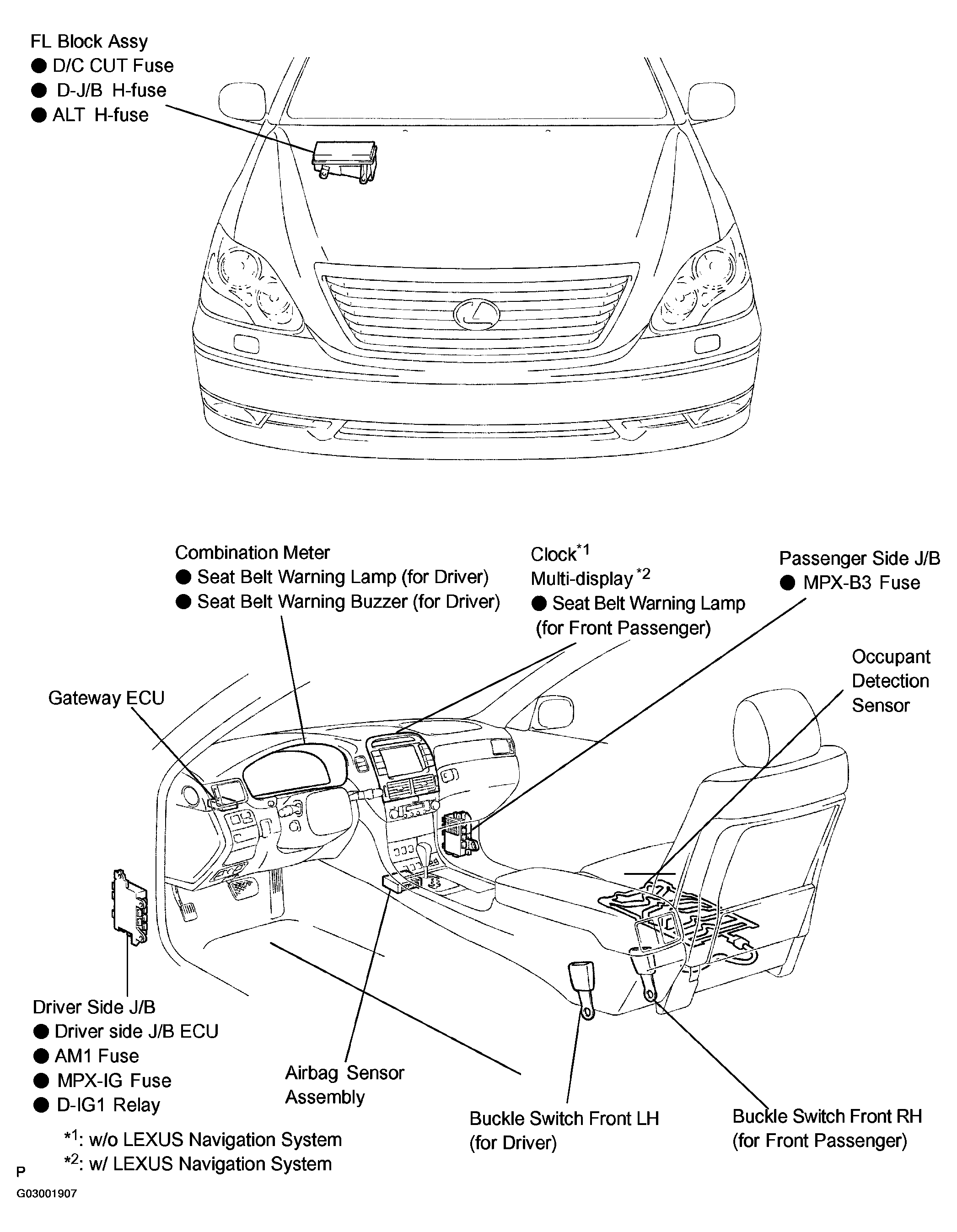

Fig 1: Identifying Location Of Seat Belt Warning System Components

G03001907

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
