Buckle Switch Circuit: Wiring Diagram

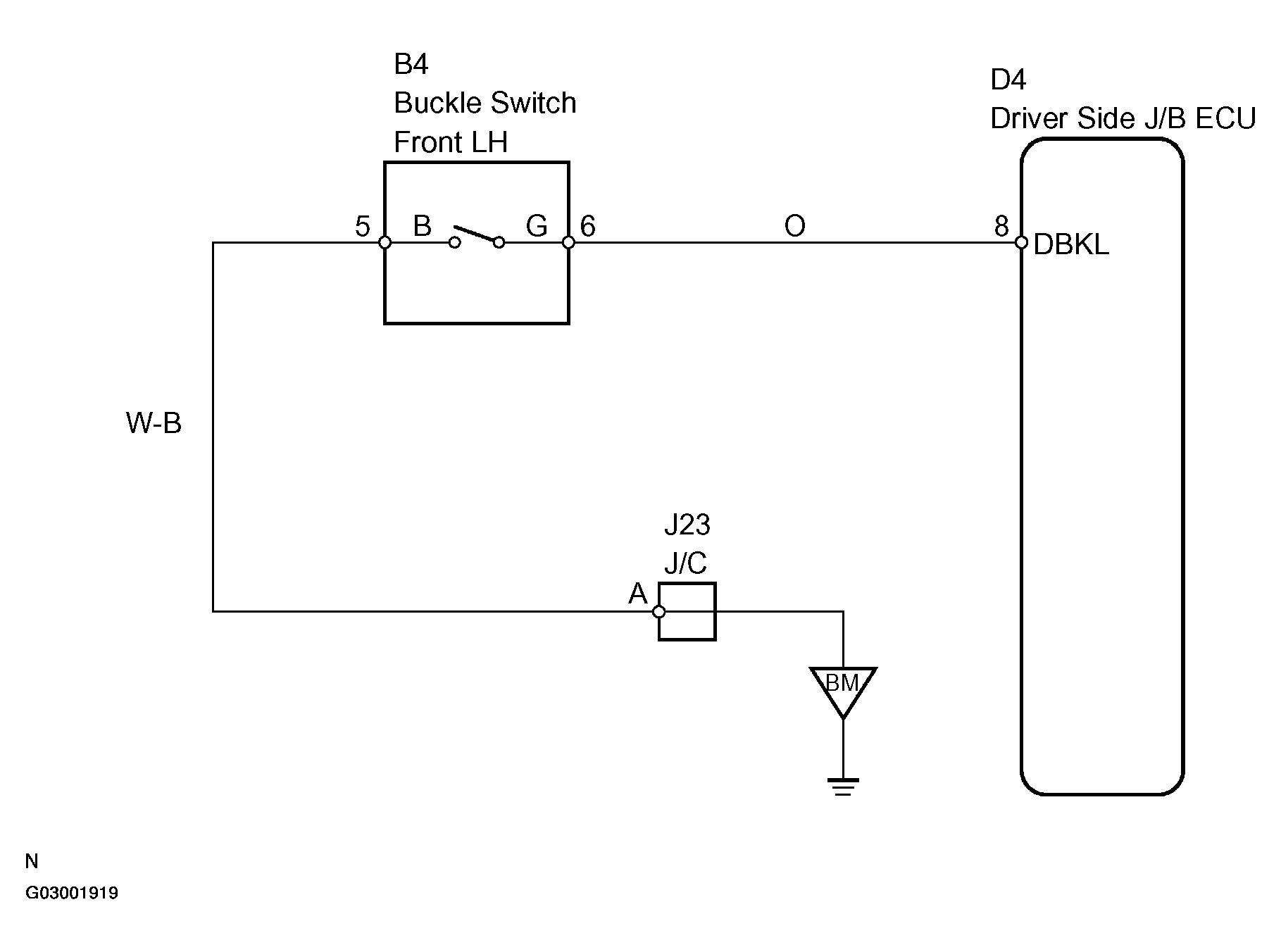

Fig 1: Buckle Switch Circuit - Wiring Diagram

G03001919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
