Power Source Circuit: Wiring Diagram

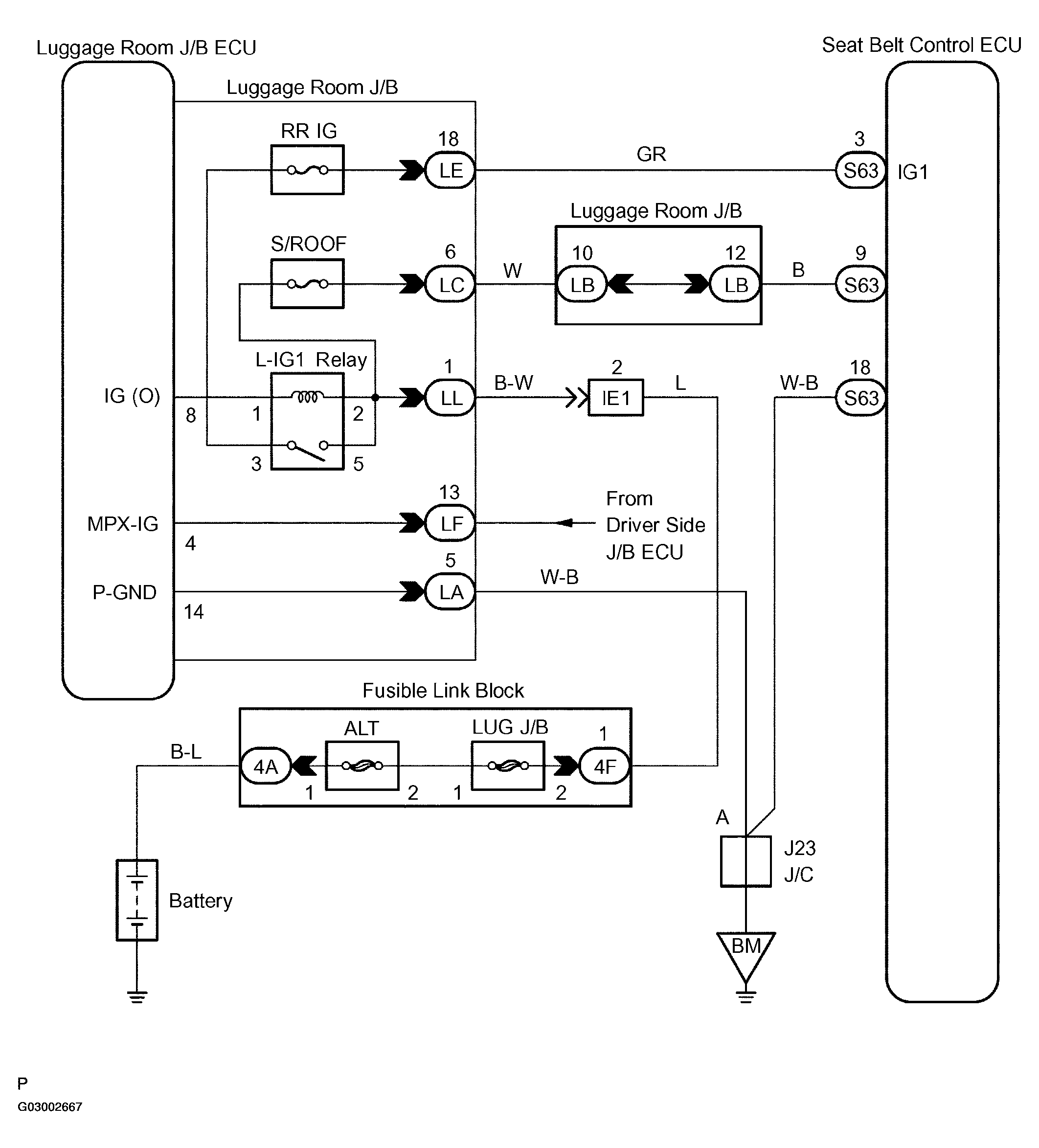

Fig 1: Power Source Circuit - Wiring Diagram

G03002667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
