System Diagram

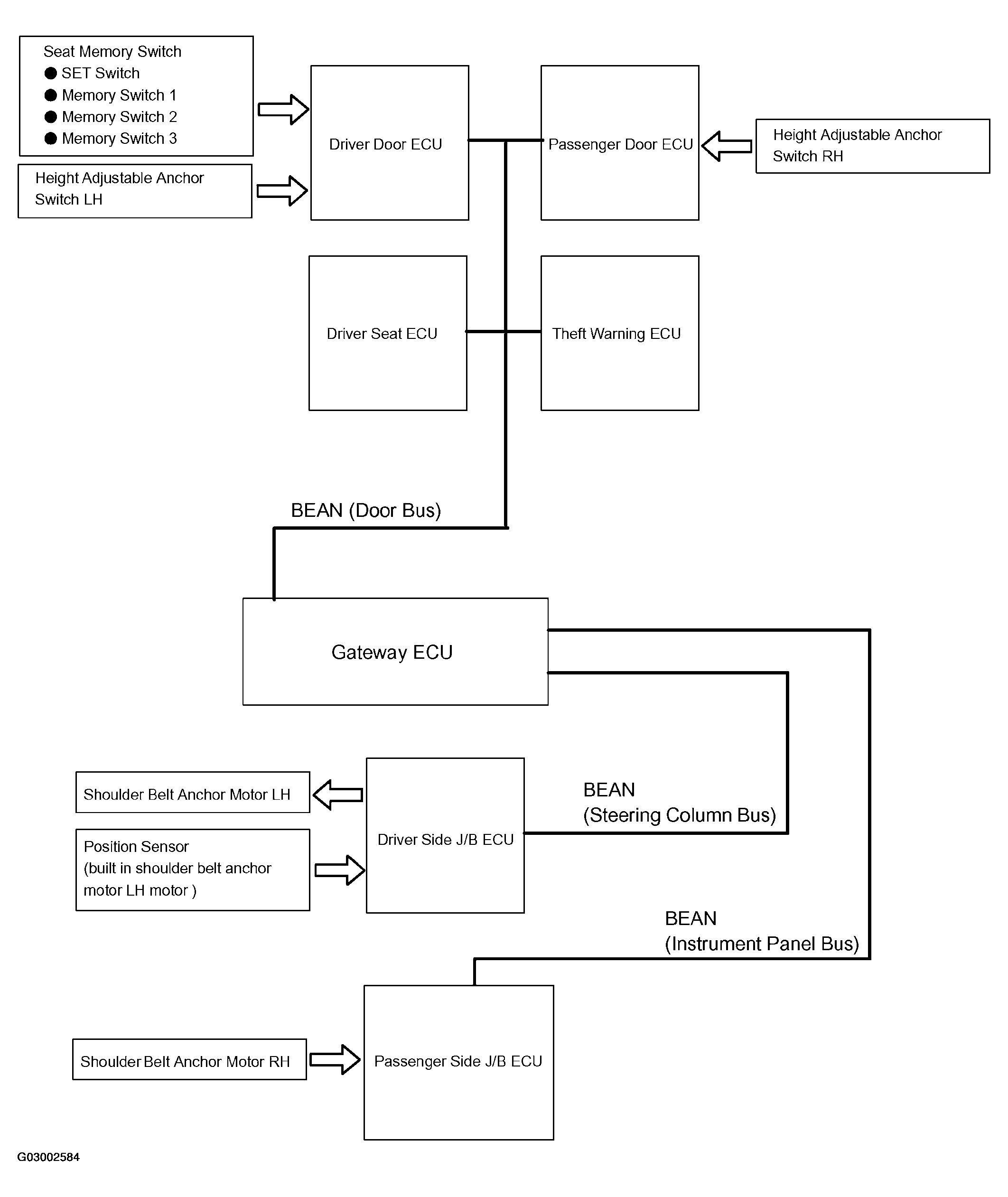

Fig 1: Power Shoulder Belt Anchorage System Diagram (1 Of 2)
G03002584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

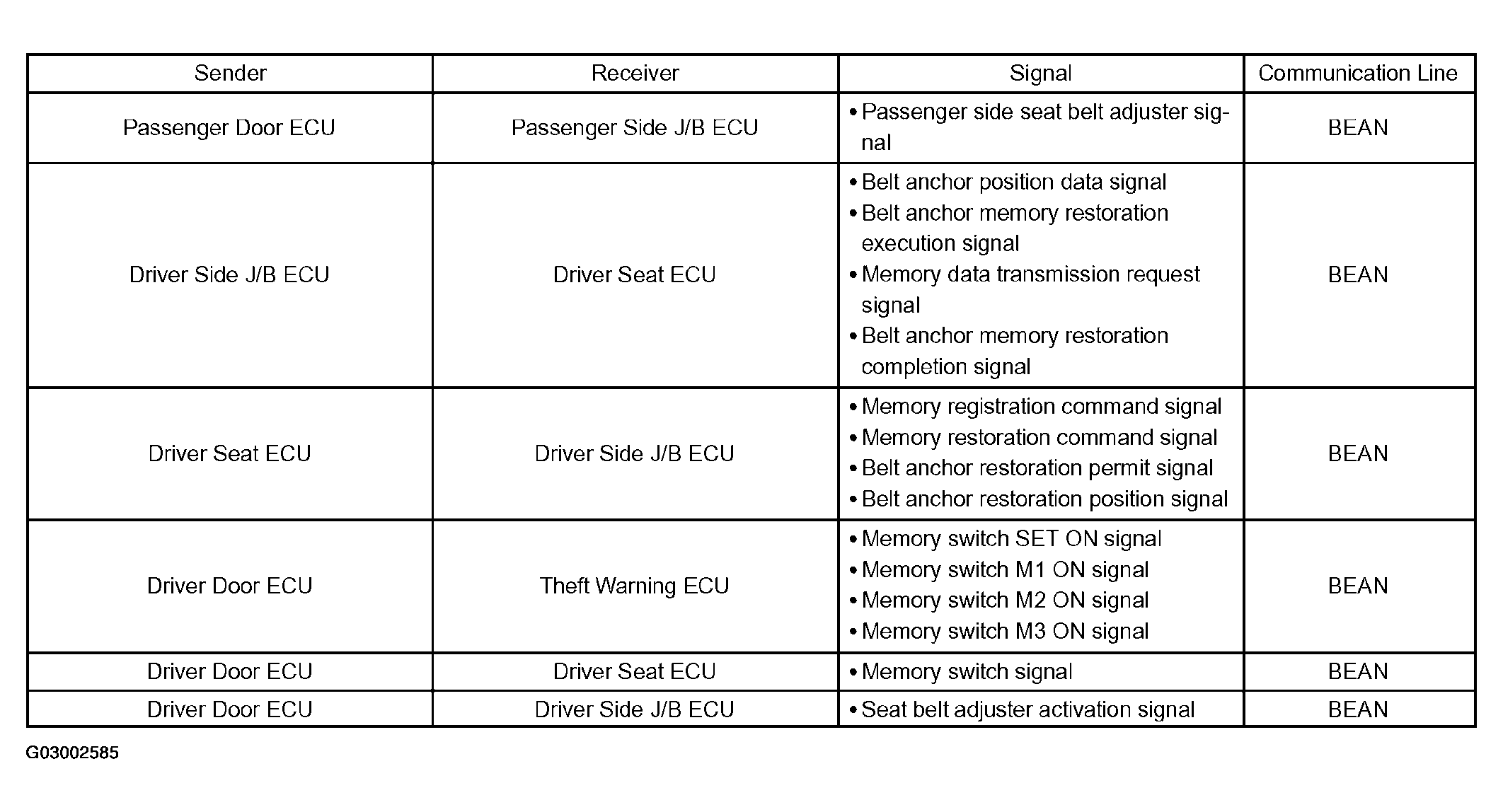

Fig 2: Power Shoulder Belt Anchorage System Diagram (2 Of 2)
G03002585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
