System Diagram

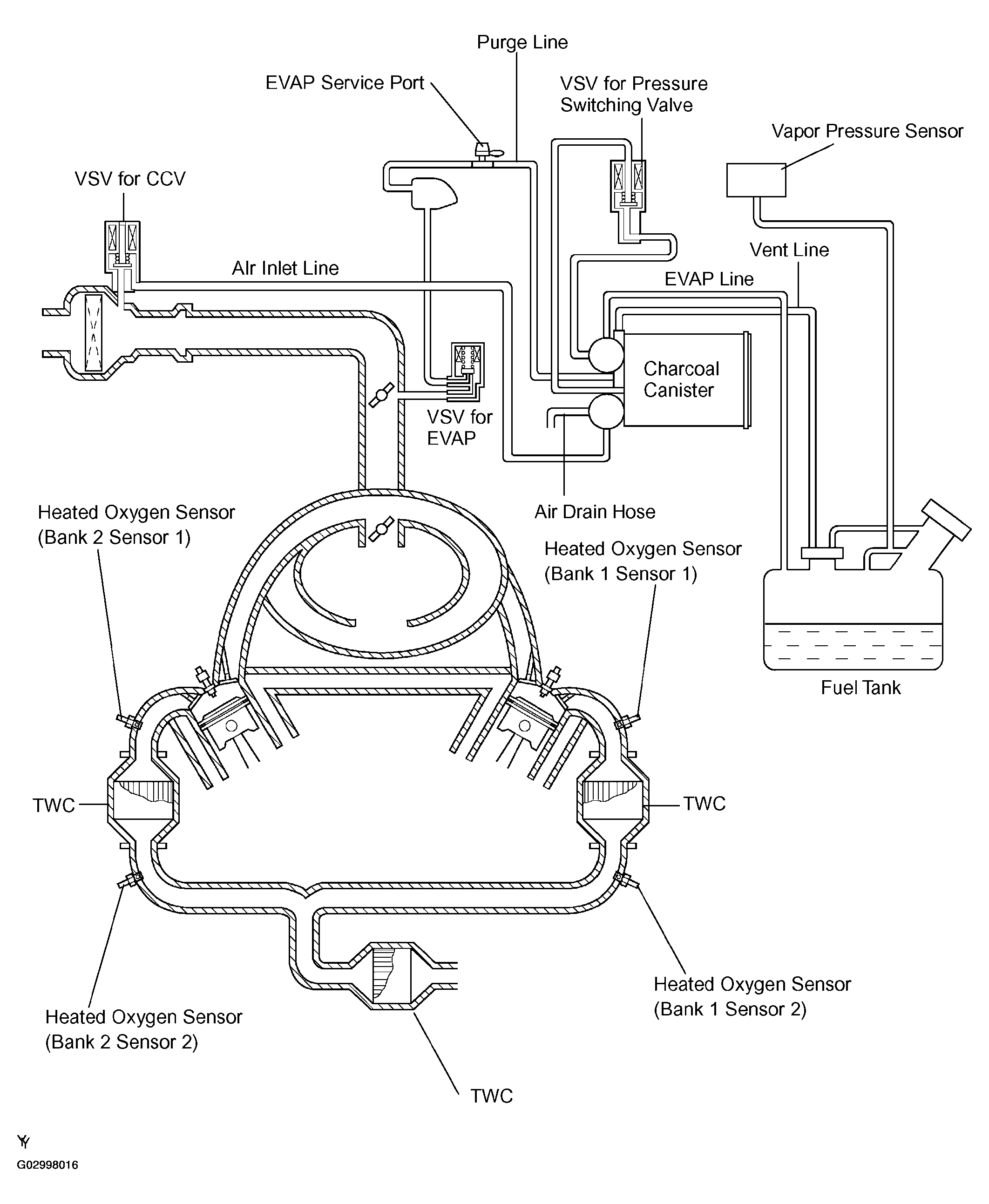

Fig 1: Identifying Emission Control System Diagram (1 Of 2)
G02998016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

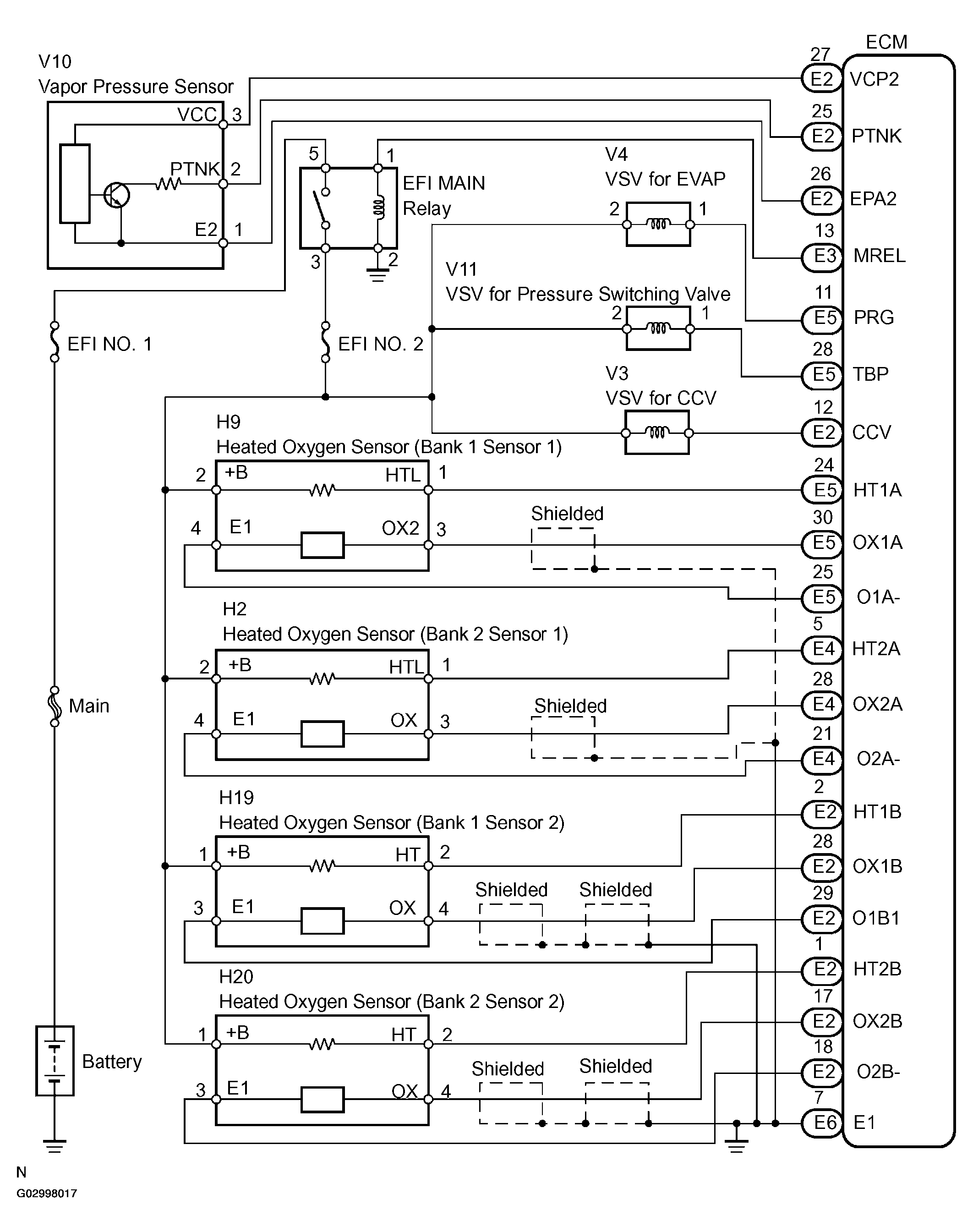

Fig 2: Identifying Emission Control System Diagram (2 Of 2)
G02998017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
