Horn System: Location

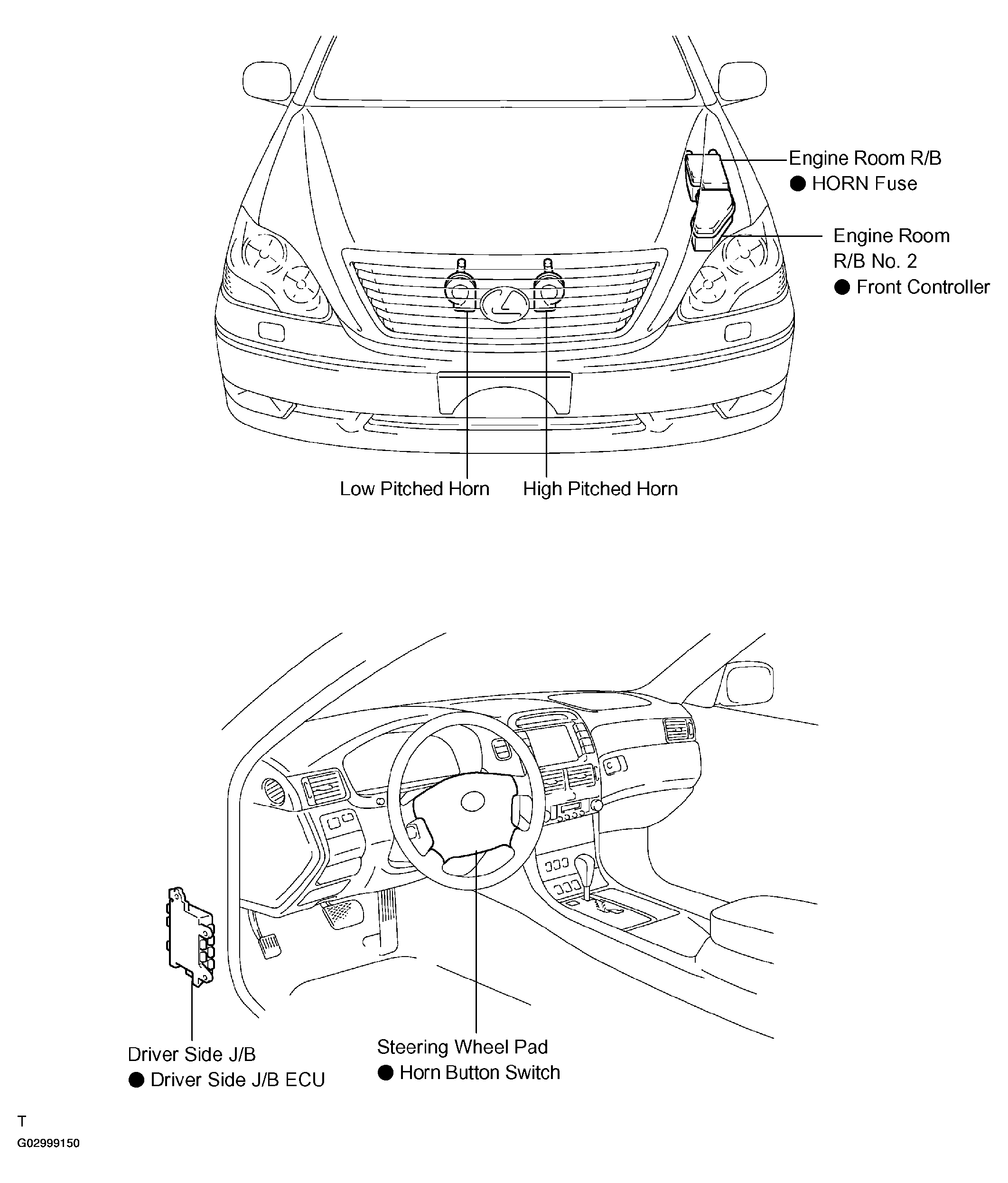

Fig 1: Identifying Horn System Components And Replacements Location

G02999150

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
