Combination Meter - Diagnostics
>>
Terminals Of Ecu
>>
Combination Meter Inner Circuit
Combination Meter Inner Circuit

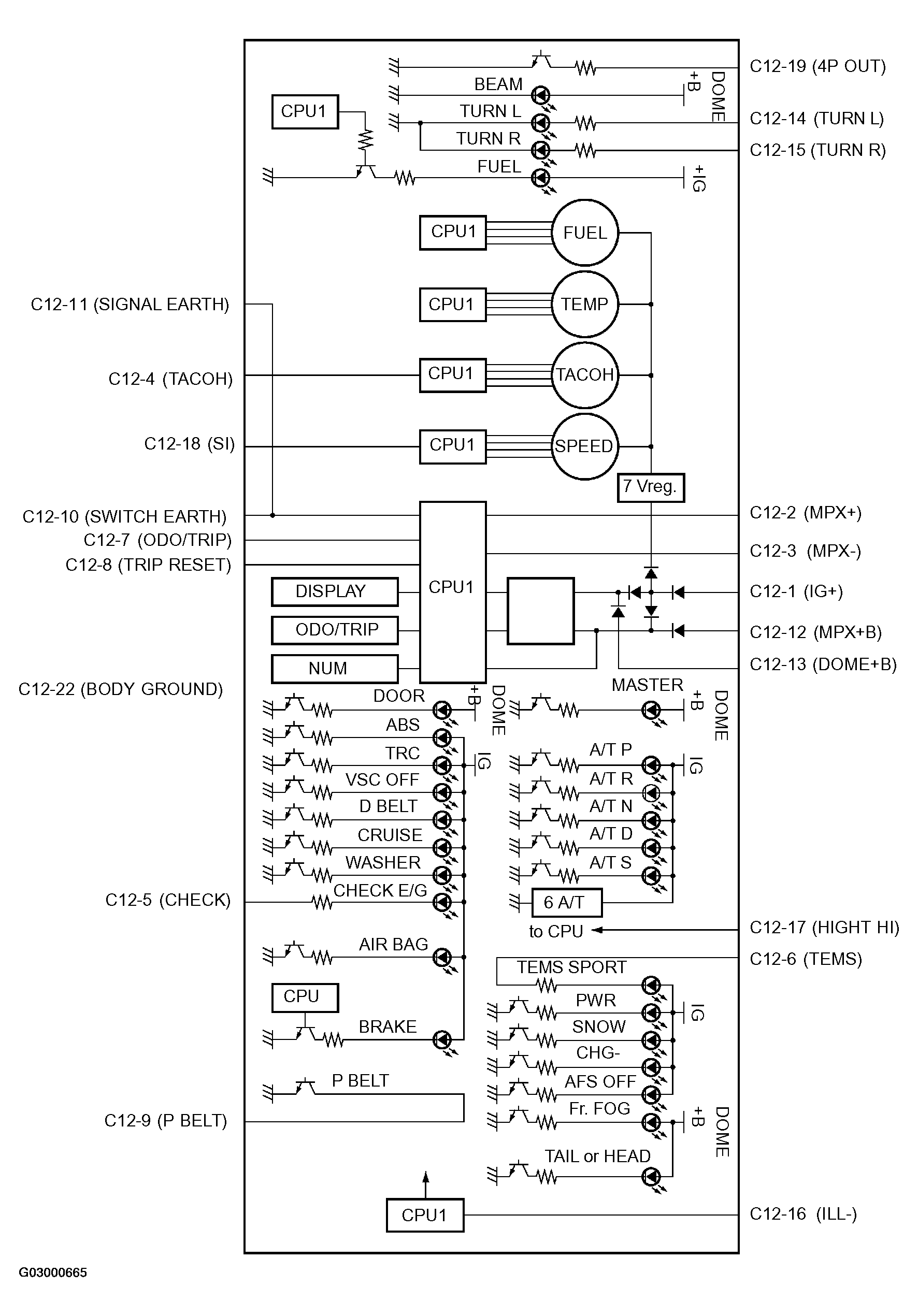

Fig 1: Combination Meter Inner Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

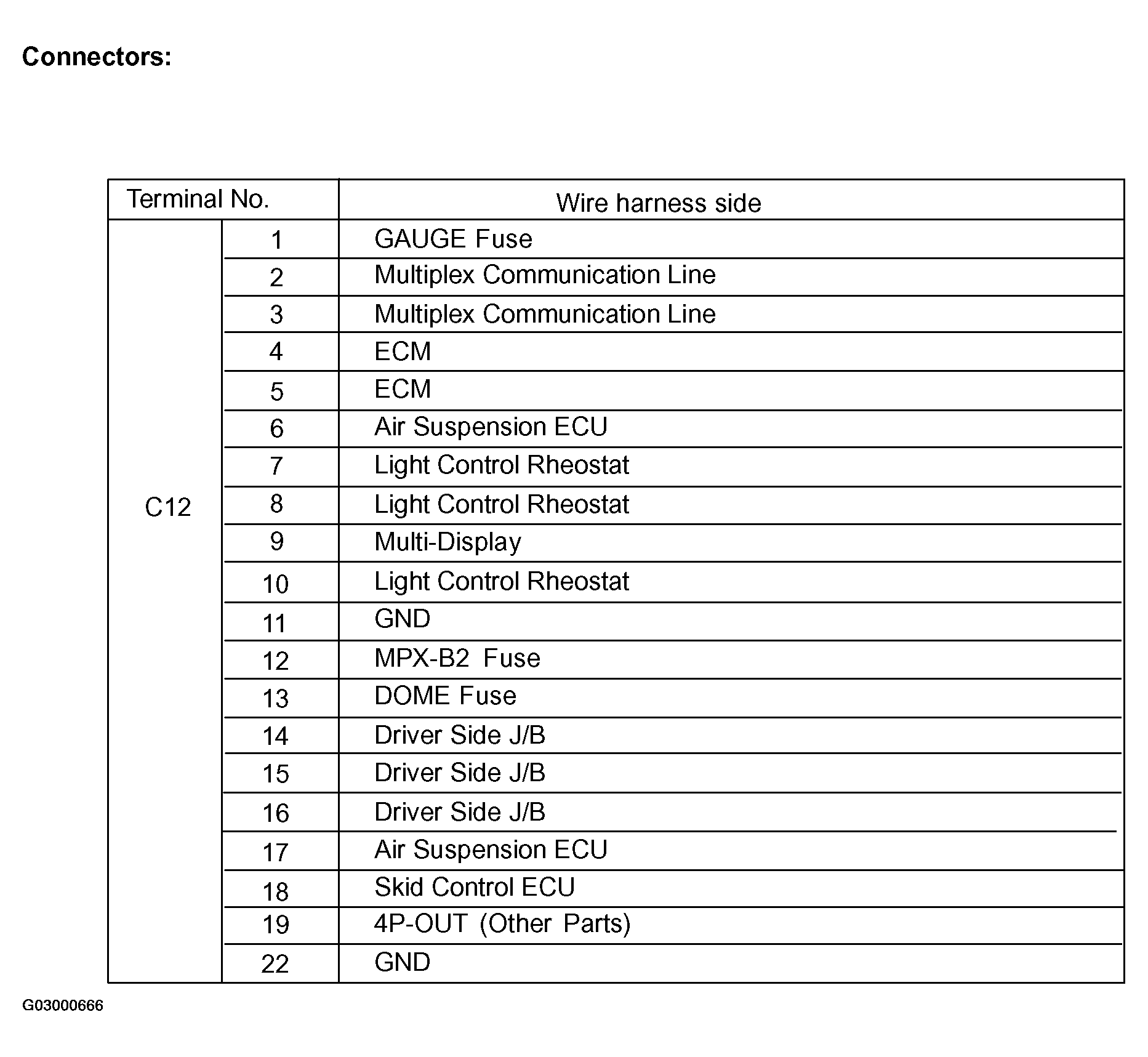

Fig 2: Combination Meter Connector Terminals Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
