Inspection Procedure
- READ VALUE OF HAND-HELD TESTER
- Operate the hand-held tester according to the steps on the display and select the "DATA LIST".
METER:
DATA LIST REFERENCEItem Measurement Item/ Range (Display) Normal Condition Diagnostic Note ODO/TRIP SW ODO/TRIP switch is ON / OFF ON: Switch is pushed
OFF: Switch is released- TRIP RESET SW TRIP RESET switch is ON / OFF ON: Switch is pushed
OFF: Switch is released- OK:
Switch condition (ON/OFF) can be switched by actual operation.
NG: Go to step 2
OK: REPLACE COMBINATION METER ASSY (SEE OVERHAUL )

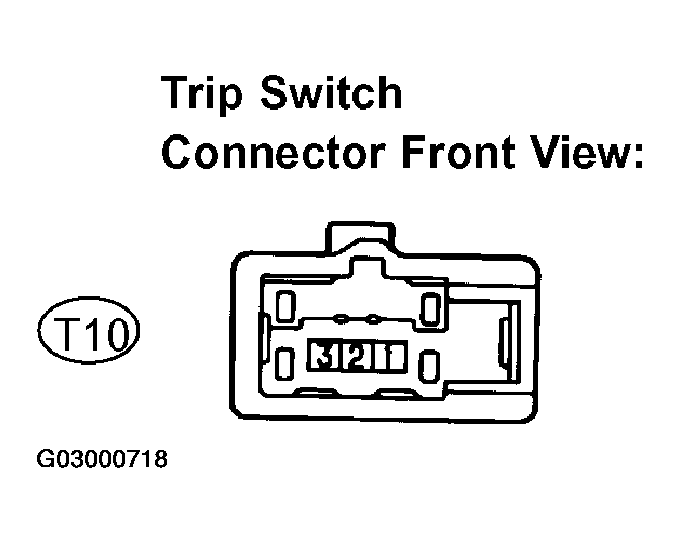

- INSPECT TRIP SWITCH
- Disconnect the trip switch connector.
- Measure the resistance according to the value (s) in the table below.
Standard
TRIP SWITCH CONNECTOR RESISTANCE SPECIFICATIONSTerminal No Condition Specified condition T10-1 - T10-2 ODO/TRIP switch OFF --> ON 10 kΩ or higher --> Below 1 Ω T10-3 - T10-2 RESET switch OFF --> ON 10 kΩ or higher --> Below 1 Ω NG: REPLACE TRIP SWITCH
OK: GO TO NEXT STEP

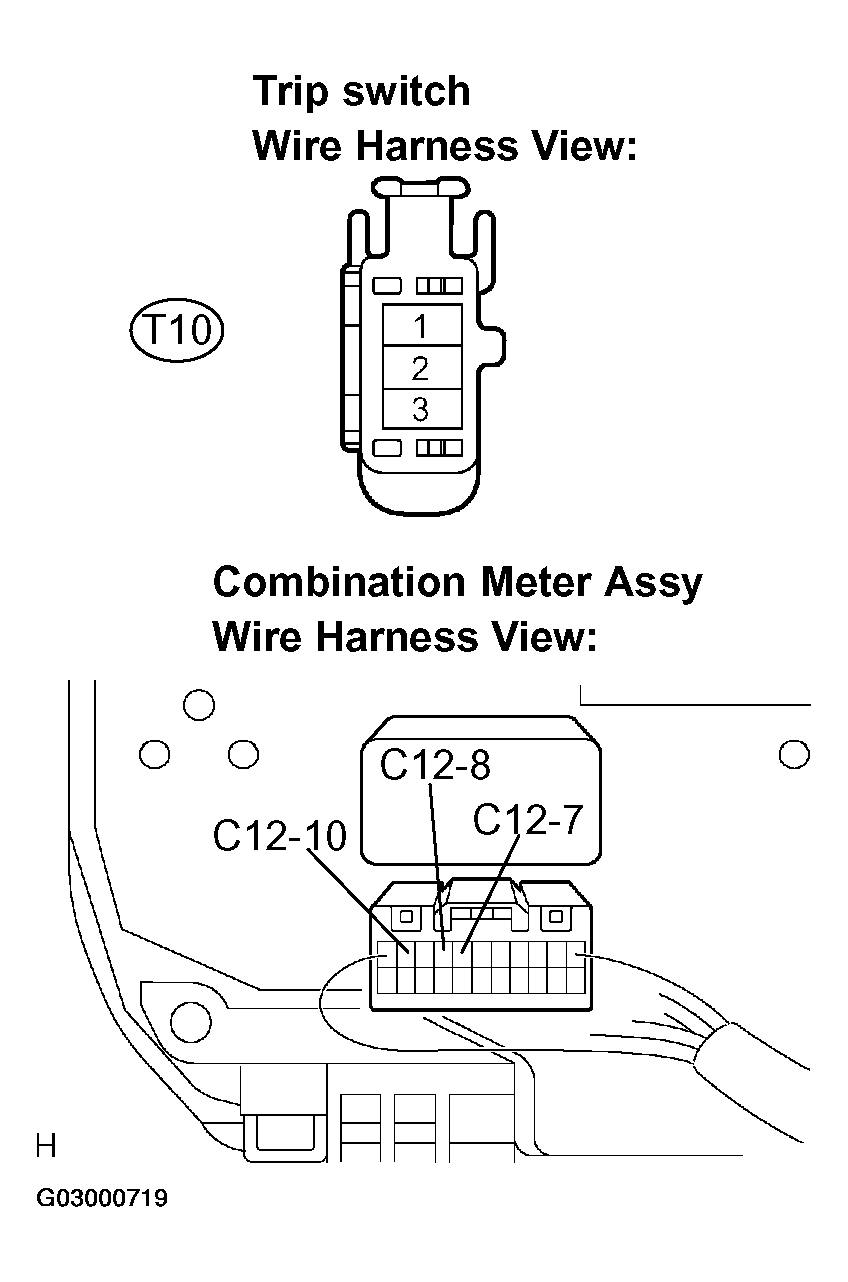

- CHECK HARNESS AND CONNECTOR (TRIP SWITCH - COMBINATION METER ASSY) (SEE HOW TO PROCEED WITH TROUBLESHOOTING
)
- Disconnect the C12 and T10 connectors.
- Measure the resistance according to the value (s) in the table below.
Standard
C12 AND T10 CONNECTORS RESISTANCE SPECIFICATIONSTester Connection Condition Specified Condition C12-7 - T10-1 Always Below 1 Ω C12-8 - T10-3 Always Below 1 Ω C12-10 - T10-2 Always Below 1 Ω C12-7 - Body ground Always 10 kΩ or higher C12-8 - Body ground Always 10 kΩ or higher C12-10 - Body ground Always 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE COMBINATION METER ASSY (SEE OVERHAUL )
