Passenger Door Ecu Power Source Circuit: Wiring Diagram

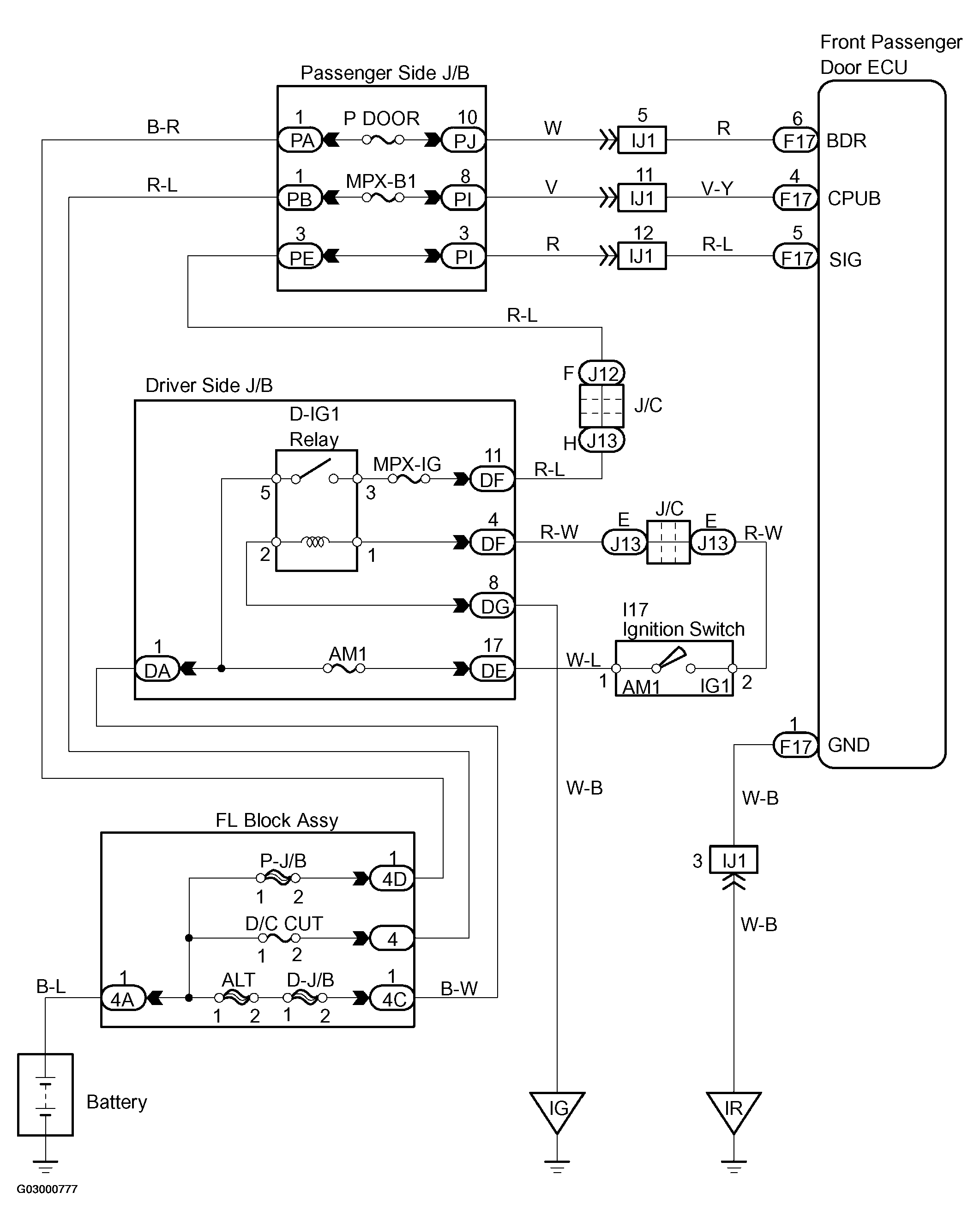

Fig 1: Passenger Door ECU Power Source Circuit Wiring Diagram

G03000777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
