Circuit Description

These DTCs are output when the power window motor rear RH circuit is malfunctioning.

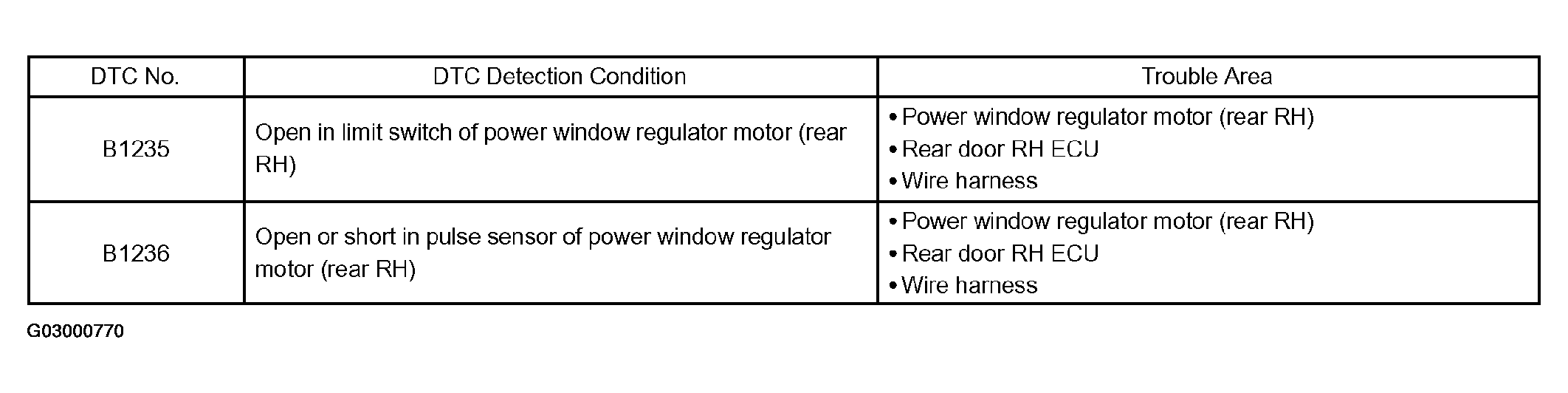

Fig 1: DTC - B1235 And B1236 Trouble Detection Chart
G03000770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
