Circuit Description

These DTCs are output when the passenger door power window motor is malfunctioning.

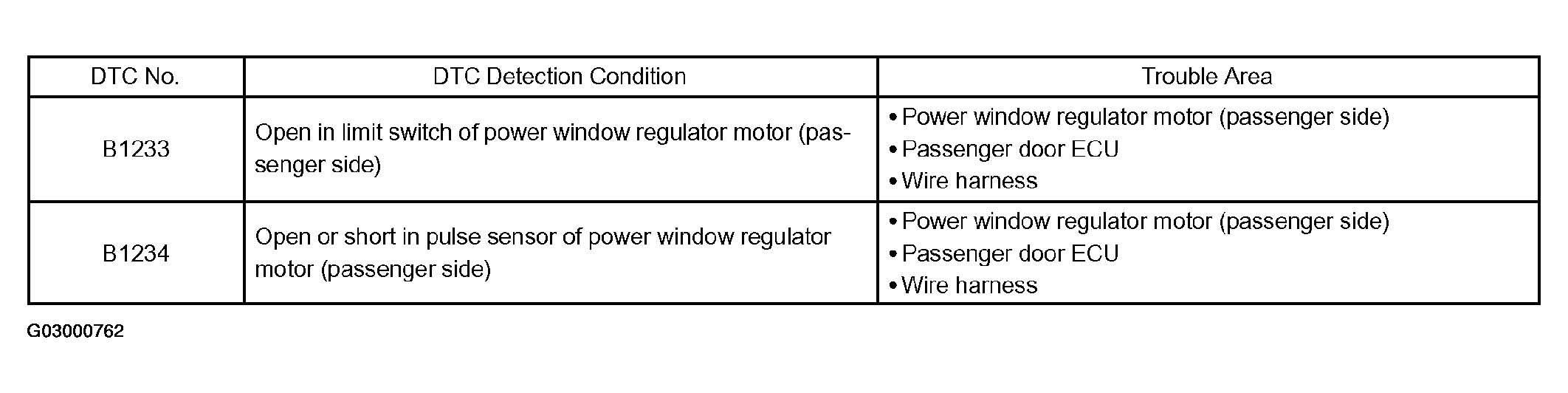

Fig 1: DTC - B1233 And B1234 Trouble Detection Chart
G03000762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
