Home >> Lexus >> 2005 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Windows >> (Door / Hatch) >> Luggage Compartment Door >> Components

Luggage Compartment Door: Components

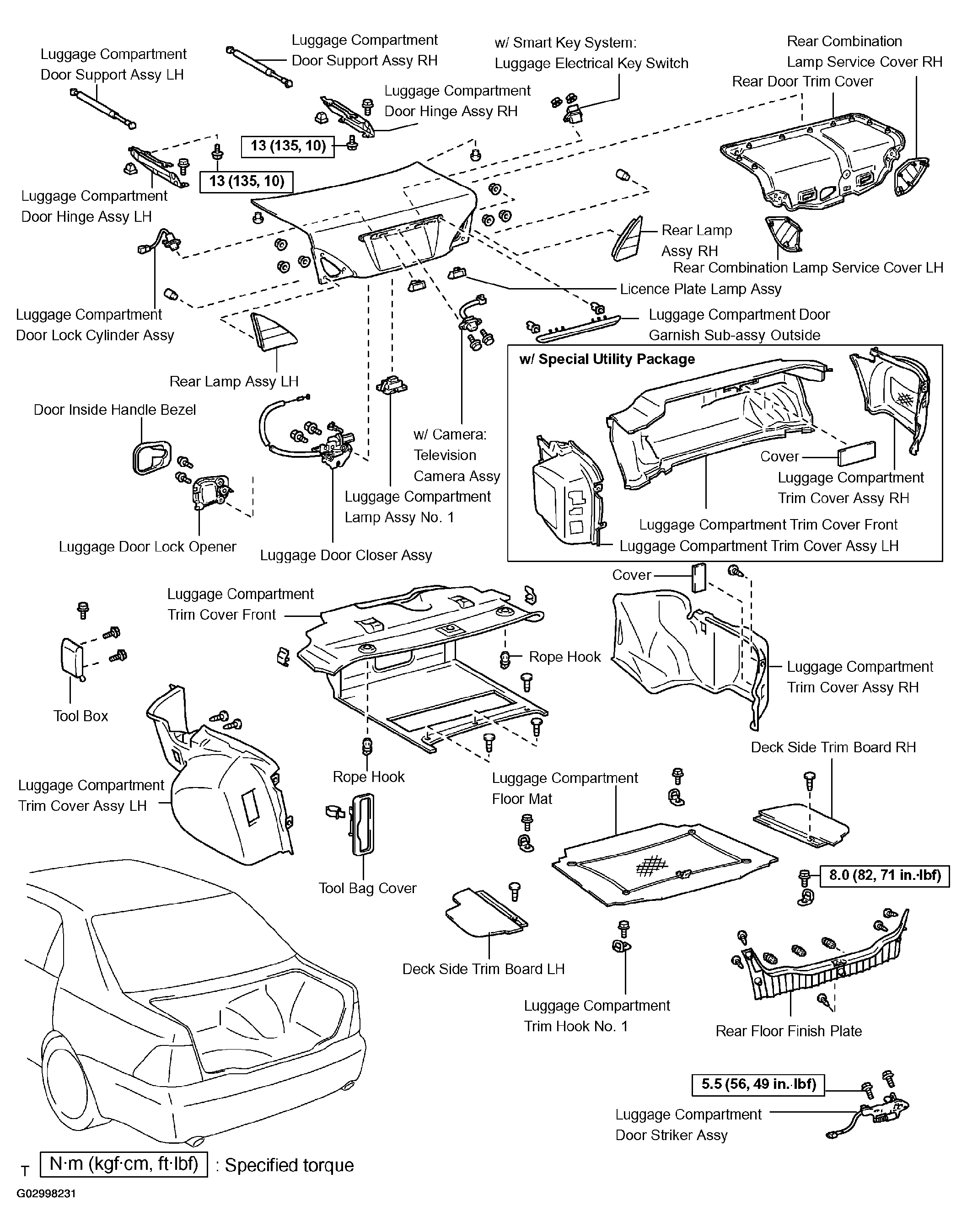

Fig 1: Identifying Luggage Compartment Door Components

G02998231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
