Home >> Lexus >> 2005 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Windows >> (Door / Hatch) >> Front Door >> Components

Front Door: Components

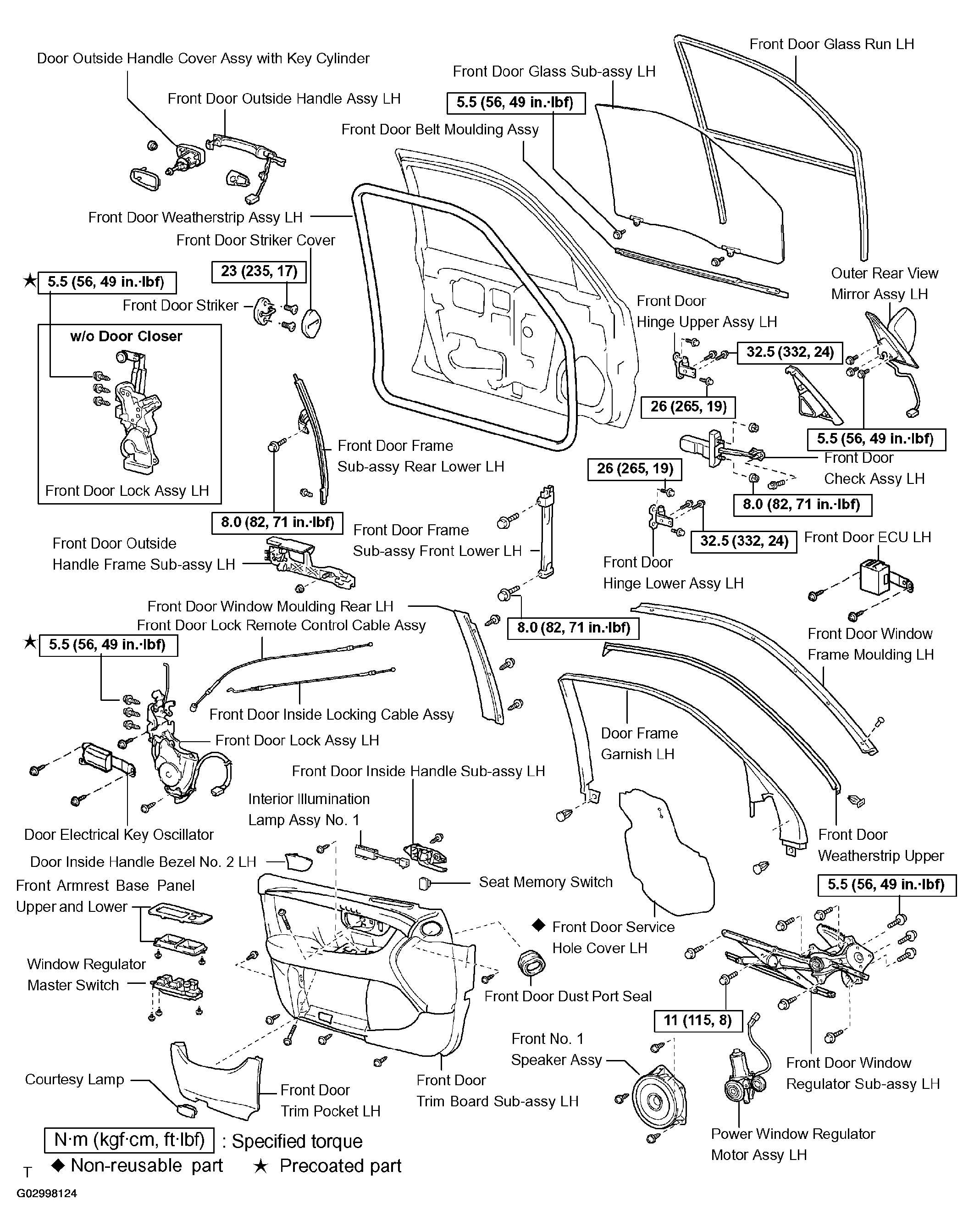

Fig 1: Identifying Front Door Components

G02998124

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
