Front Door: Adjustment

HINT:

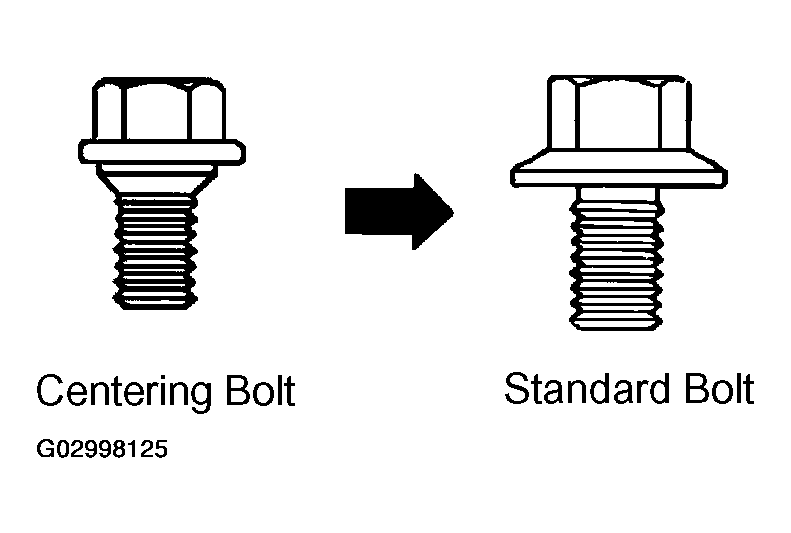

Fig 1: Identifying Centering Bolts
G02998125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. INSPECT FRONT DOOR PANEL SUB-ASSY LH
    1. Check that the clearance is within the standard range.

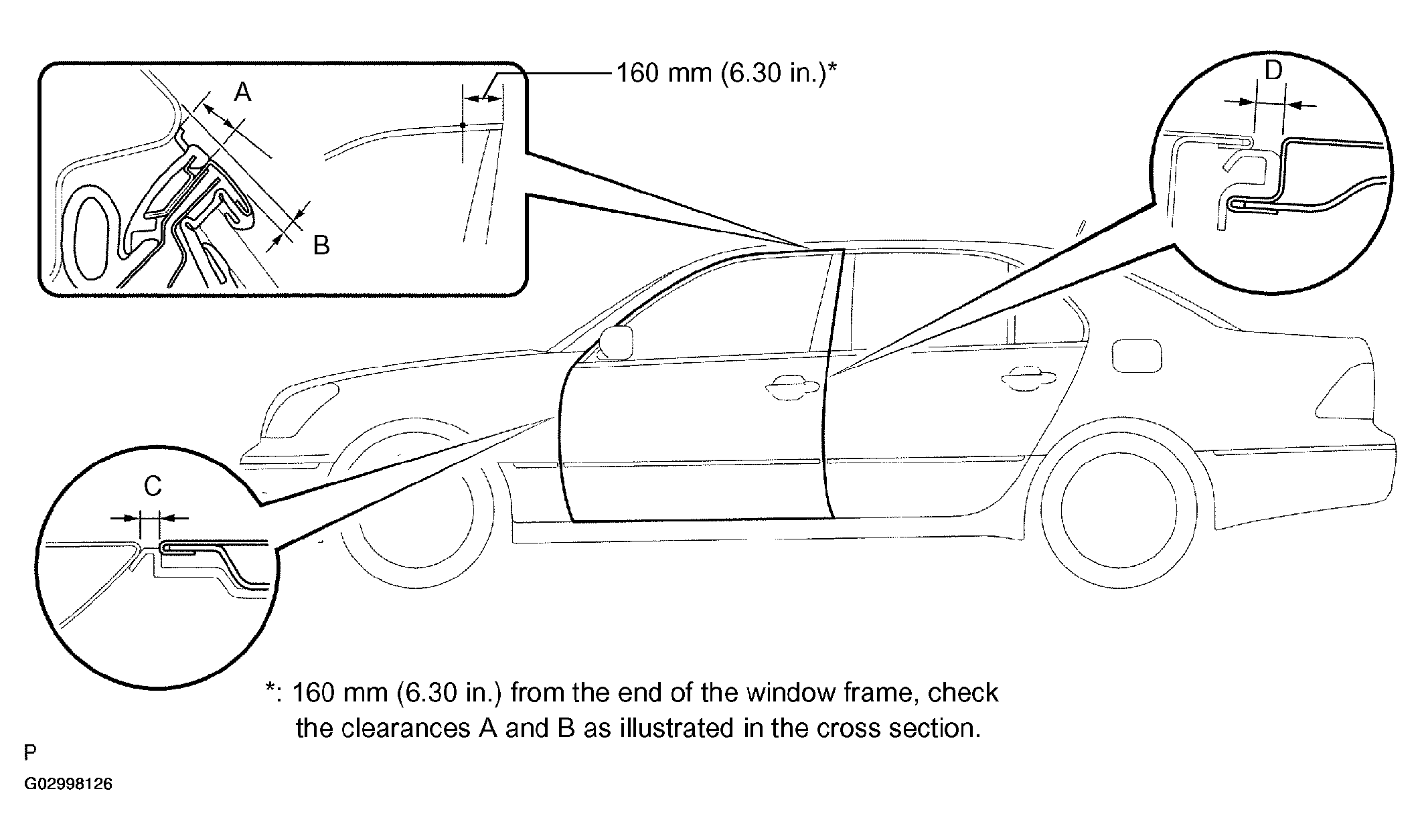

    Fig 2: Inspecting Front Door Panel Sub-Assy LH
    G02998126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    AREA MEASUREMENT REFERENCE STANDARD:

    Area Measurement Area Measurement
    A 8.0 +/- 1.5 mm (0.315 +/- 0.059 in.) C 4.0 +/- 1.5 mm (0.157 +/- 0.059 in.)
    B 2.5 +/- 1.5 mm (0.098 +/- 0.059 in.) D 4.0 +/- 1.5 mm (0.157 +/- 0.059 in.)
  2. ADJUST FRONT DOOR PANEL SUB-ASSY LH
    1. Disconnect the negative (-) terminal cable from the battery.
      CAUTION: Work must be started at least 90 seconds after the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery. (The SRS is equipped with a back-up power source. If work is started within 90 seconds of disconnecting the negative (-) terminal battery and turning the ignition switch to the LOOK position, the SRS may deploy.)
    2. Using SST, adjust the door horizontally and vertically by loosening the body side hinge bolts.
      1. SST 09812-00010, 09812-00020
    3. Tighten the body side hinge bolts after the adjustment.
      1. Torque: 32.5 N.m (332 kgf.cm, 24 ft.lbf)

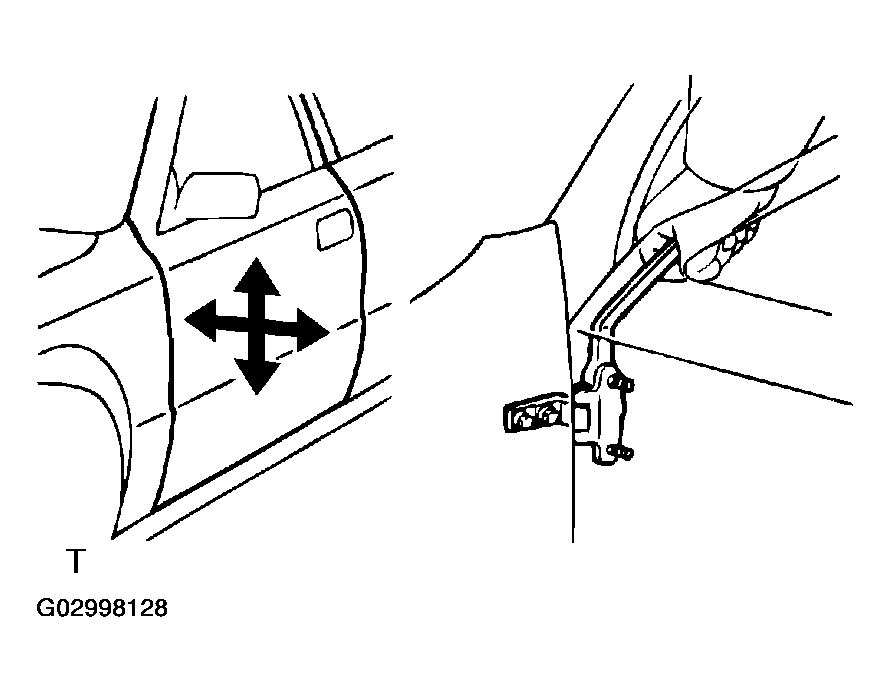

      Fig 3: Loosening Body Side Hinge Bolts
      G02998127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. As shown in the illustration, horizontally and vertically adjust the door by loosening the door side hinge bolts.
    5. Tighten the door side hinge bolts after the adjustment.
      1. Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)
      Fig 4: Tightening Door Side Hinge Bolts
      G02998128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using a screwdriver, disengage the 4 claws and remove the cover.

      HINT:

      Tape the screwdriver tip before use.

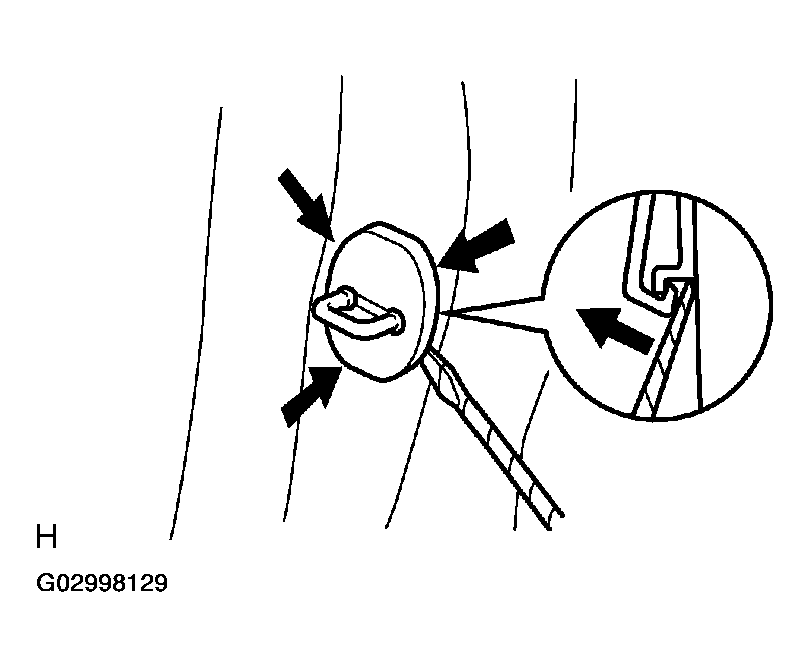

      Fig 5: Taping Screwdriver Tip Before Use
      G02998129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.
    8. Tighten the striker mounting screws after the adjustment.
      1. Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)
    9. Connect the negative (-) terminal cable to the battery.
    10. Initialize both systems (see INITIALIZATION ).
    11. Inspect the SRS warning lamp (see DIAGNOSIS SYSTEM ).
    Fig 6: Inspecting SRS Warning Lamp
    G02998130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
