Sliding Roof/Convertible: Components

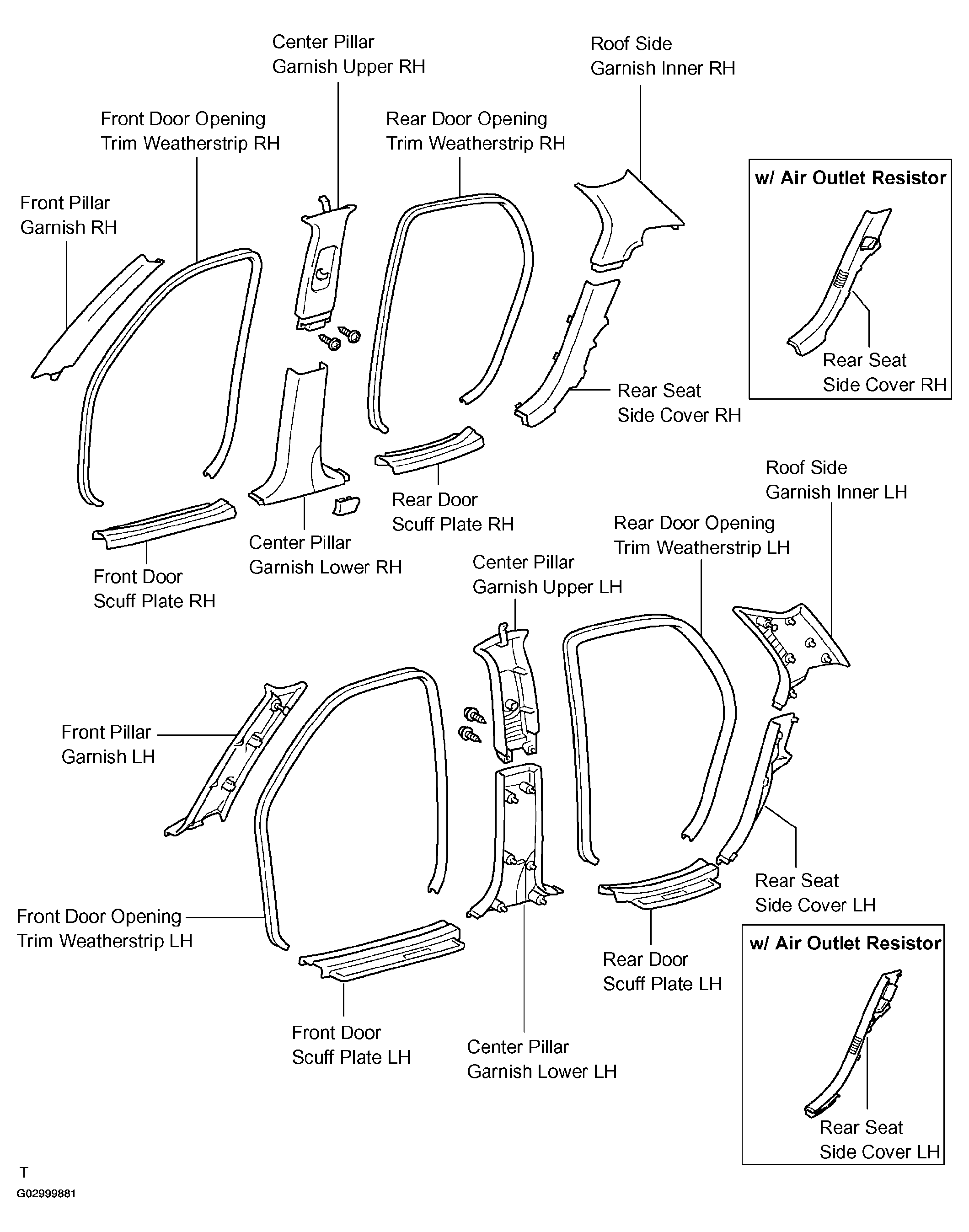

Fig 1: Exploded View Of Sliding Roof Components And Replacements (1 Of 3)
G02999881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

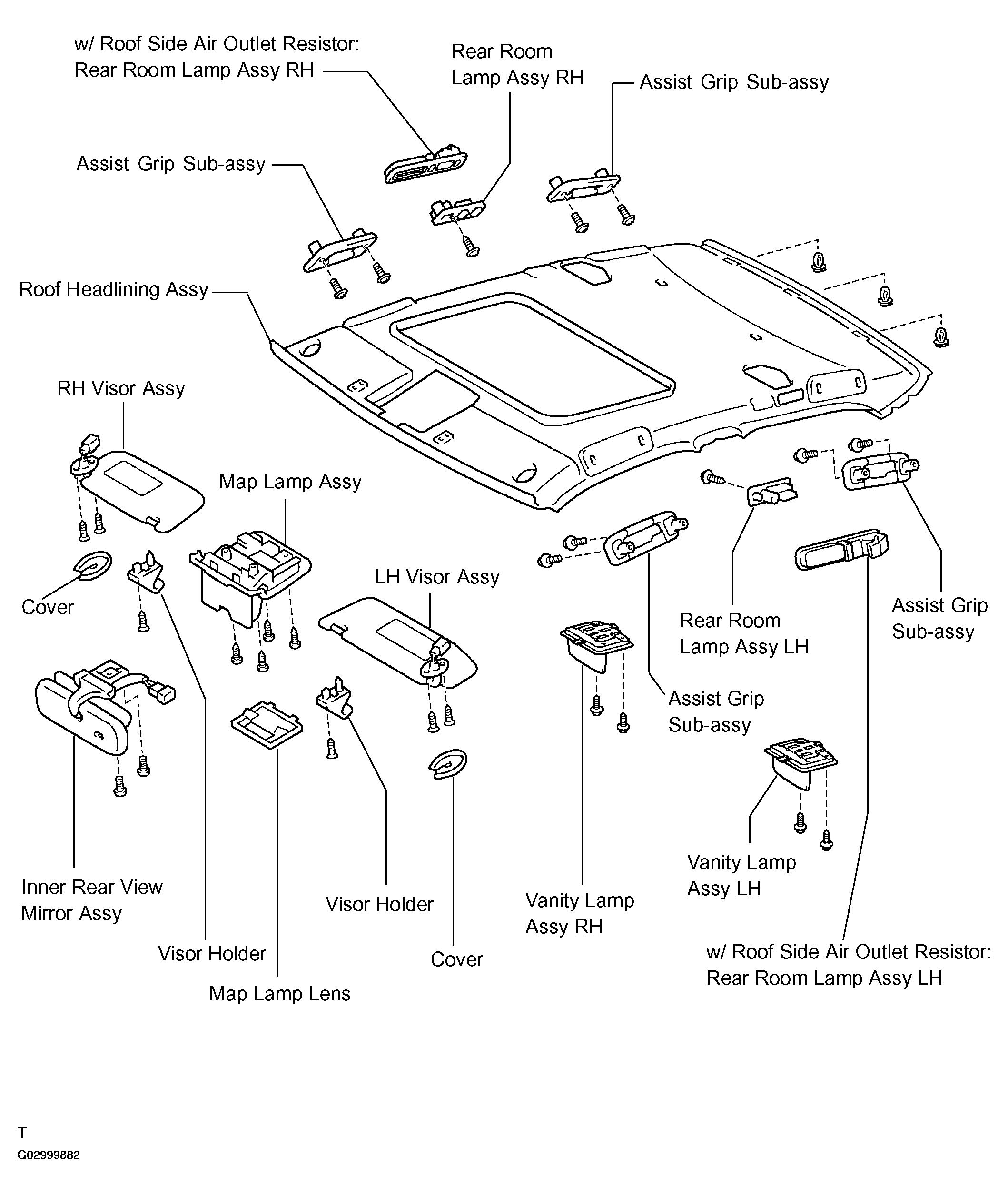

Fig 2: Exploded View Of Sliding Roof Components And Replacements (2 Of 3)
G02999882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

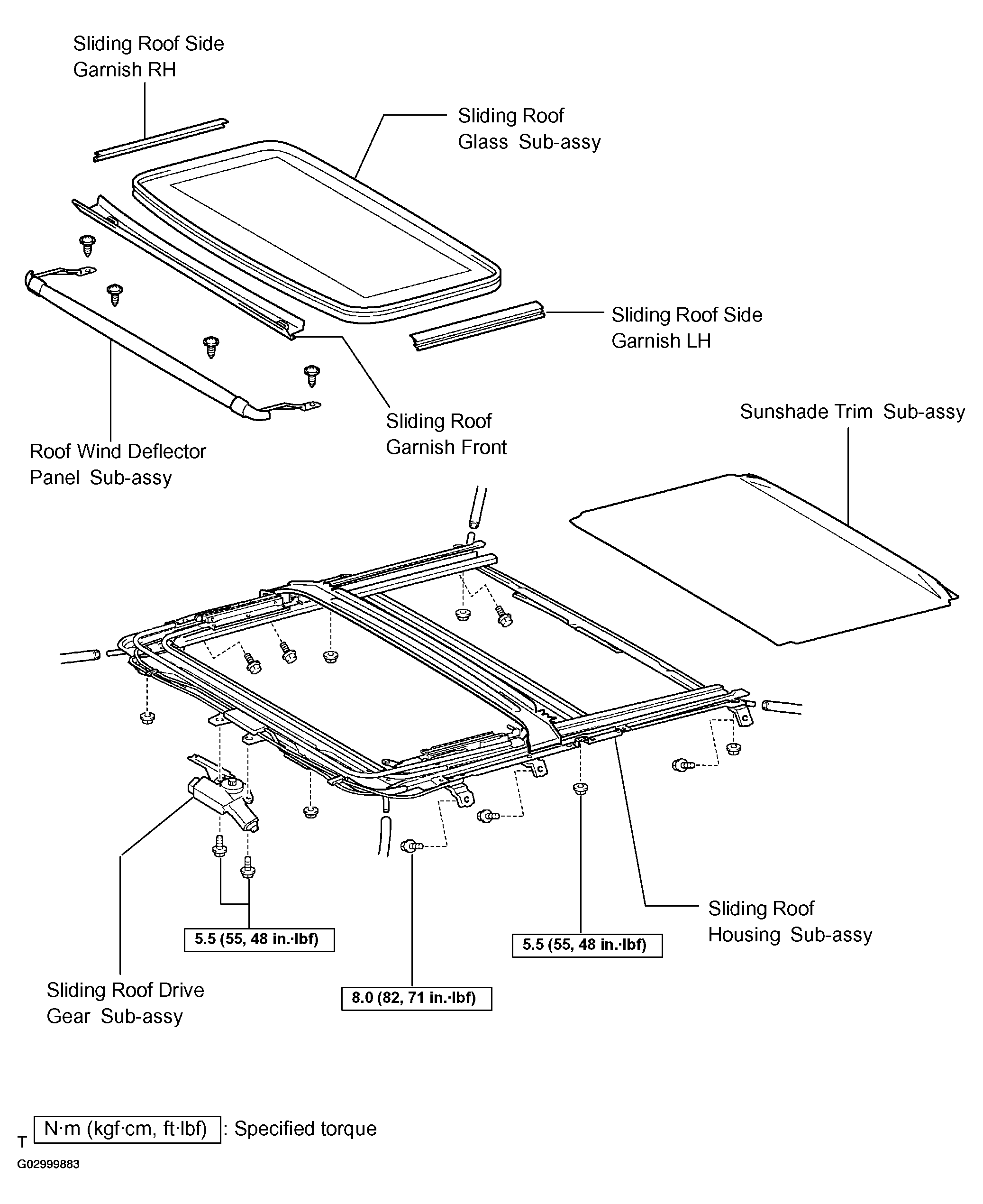

Fig 3: Exploded View Of Sliding Roof Components And Replacements (3 Of 3)
G02999883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
