Climate Control Seat System - Diagnostics
>>
System Diagram
System Diagram

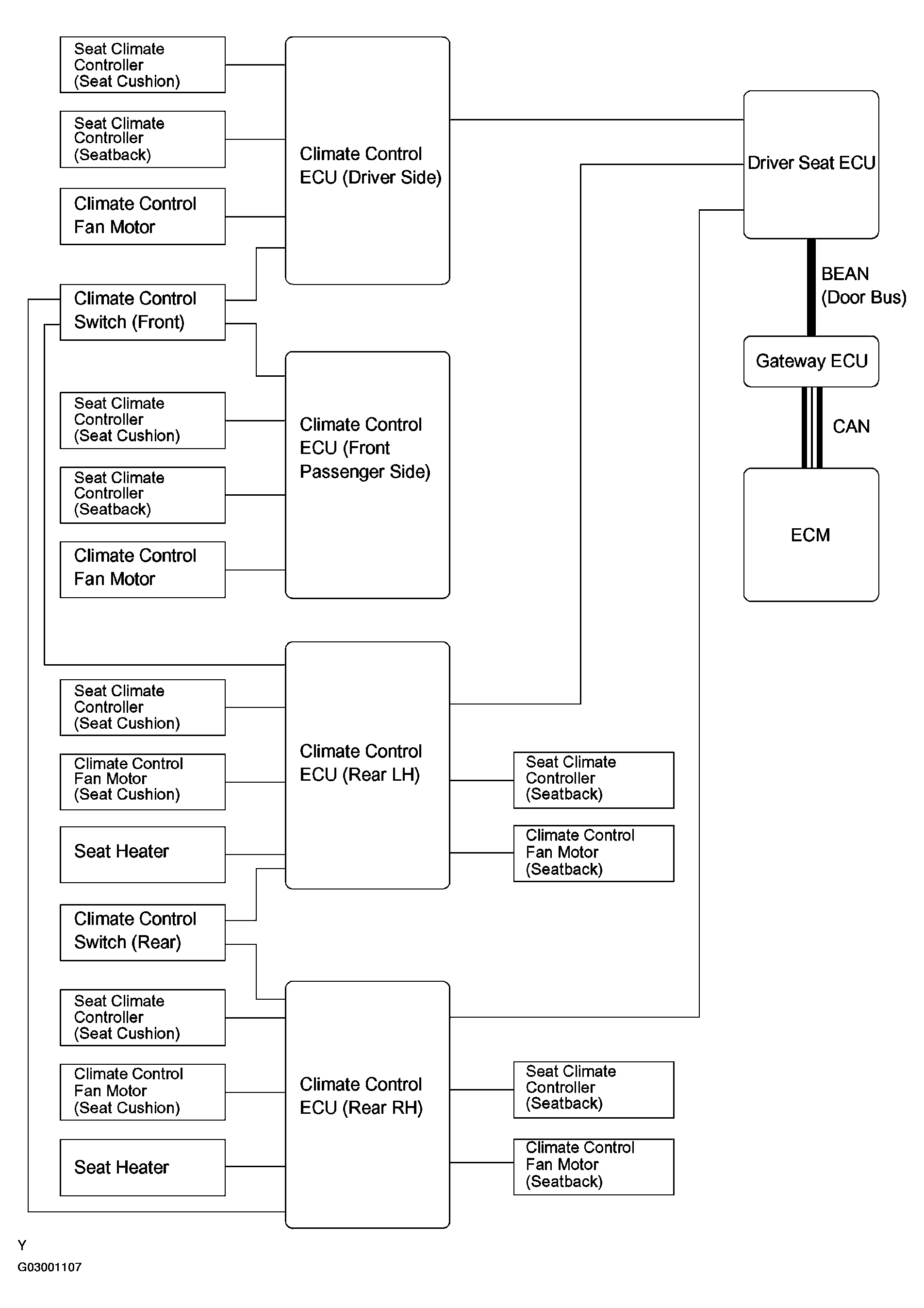

Fig 1: Climate Control Seat System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION
Sender
Receiver
Signal
Line
Climate control ECU
ECM
Idle-up signal
BEAN (Door bus), CAN
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
