Home >> Lexus >> 2005 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Rear View Monitor System - Diagnostics >> Location

Rear View Monitor System - Diagnostics: Location

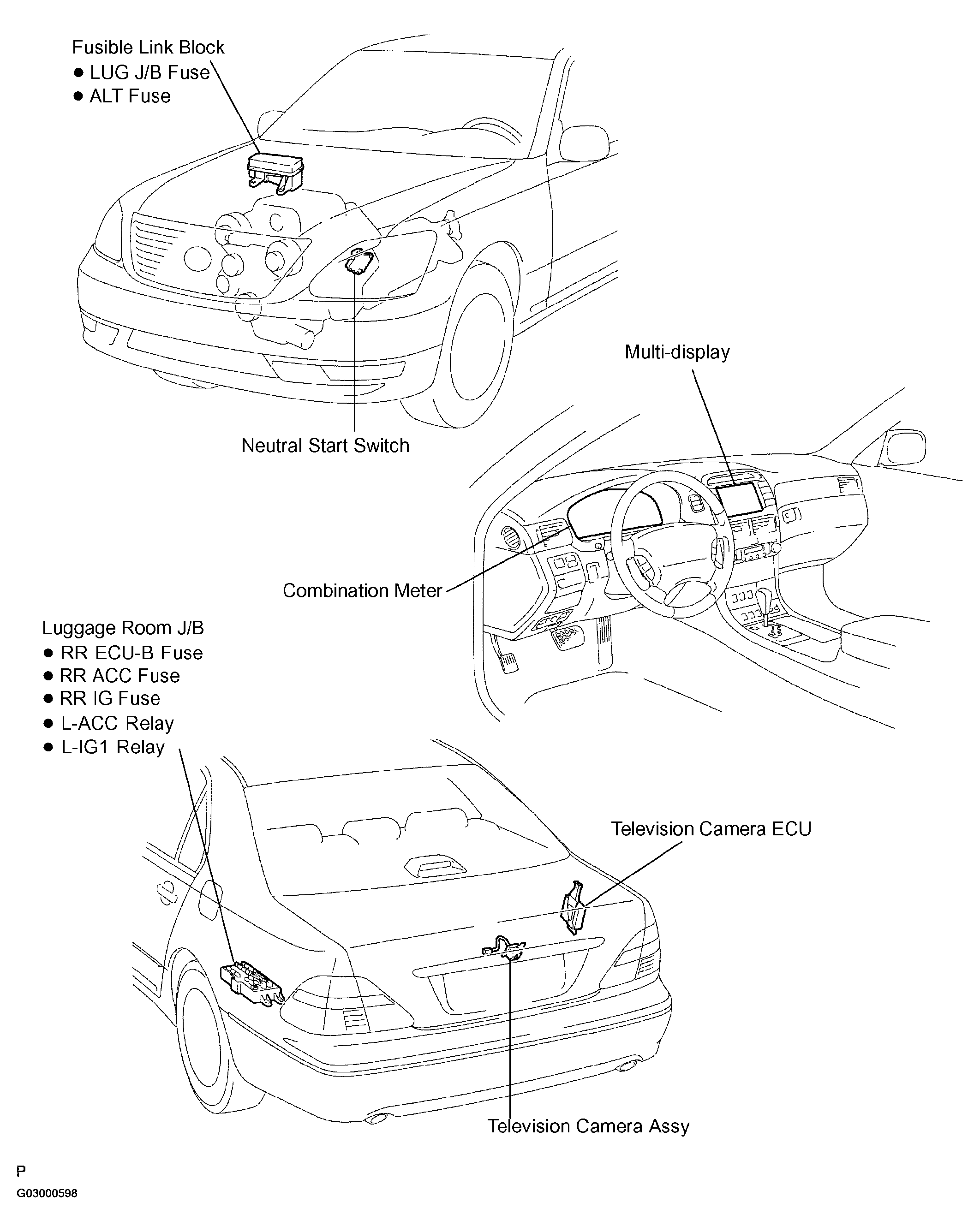

Fig 1: Identifying Rear View Monitor System Components And Replacements Location

G03000598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
