Steering Lock System - Diagnostics: Location

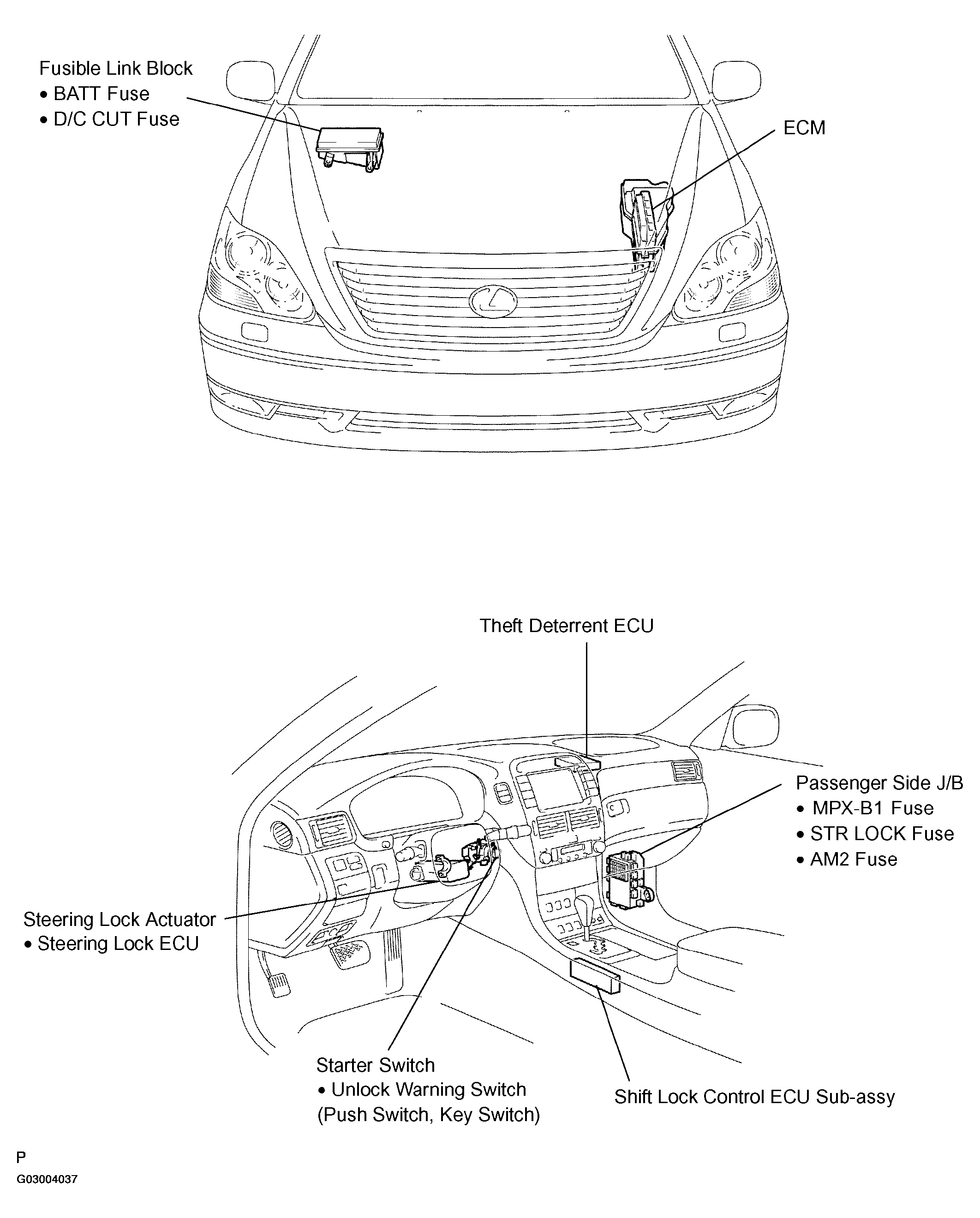

Fig 1: Identifying Steering Lock System Component Location

G03004037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
