Touch Sensor Circuit: Wiring Diagram

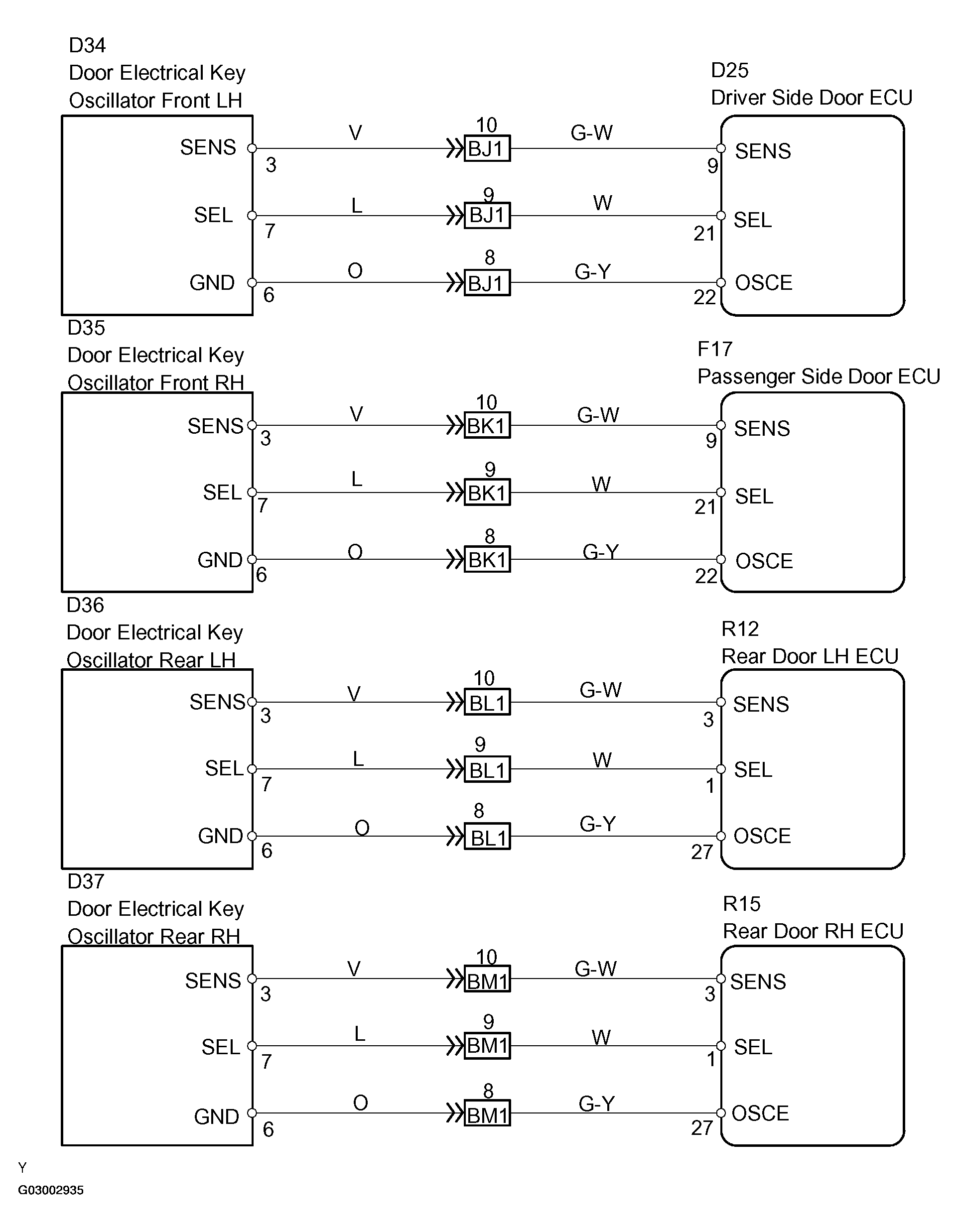

Fig 1: Touch Sensor Circuit Wiring Diagram

G03002935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
