Communication line

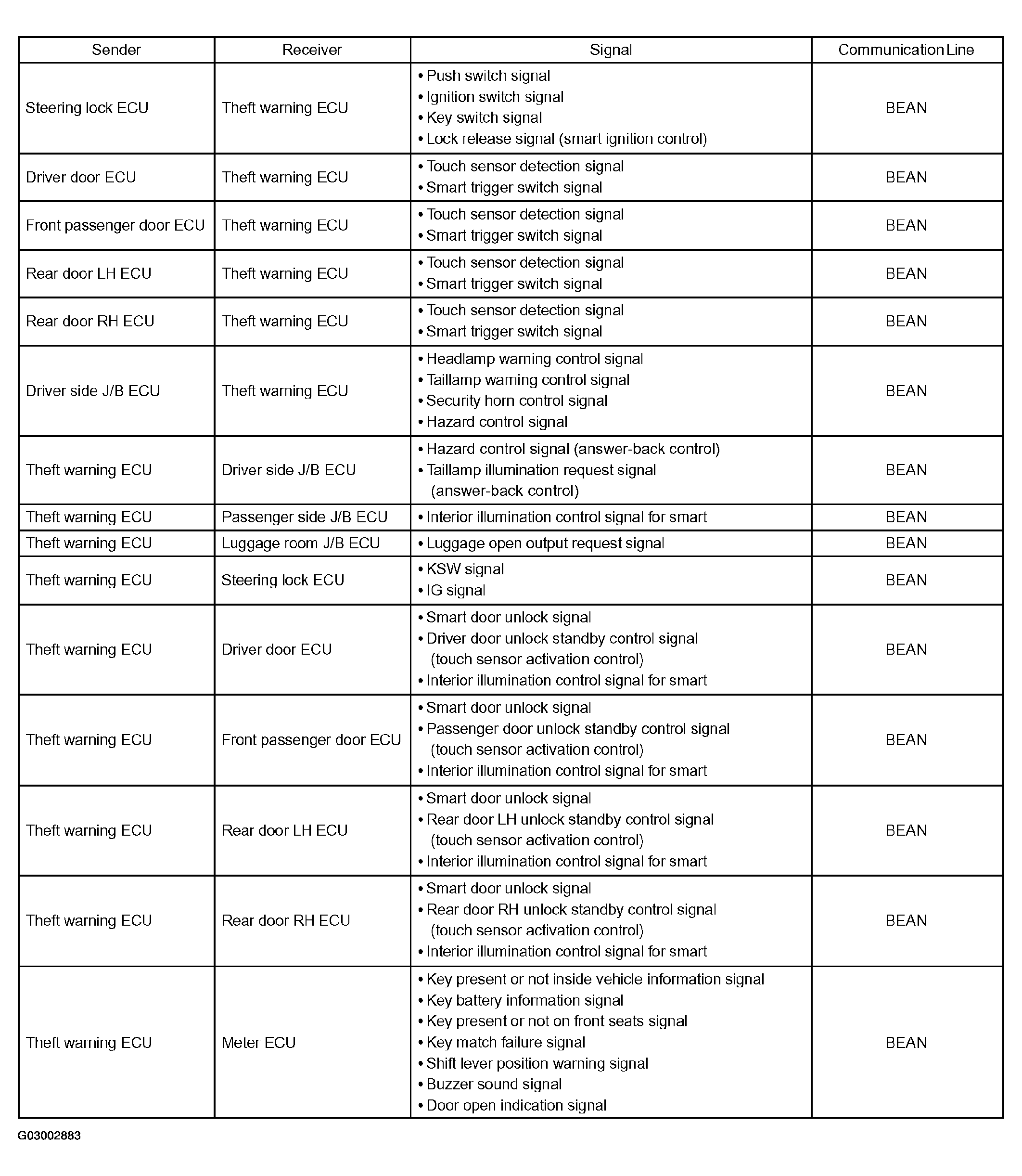

Fig 1: Communication Line Description Chart

G03002883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
