Smart Indicator Circuit: Wiring Diagram

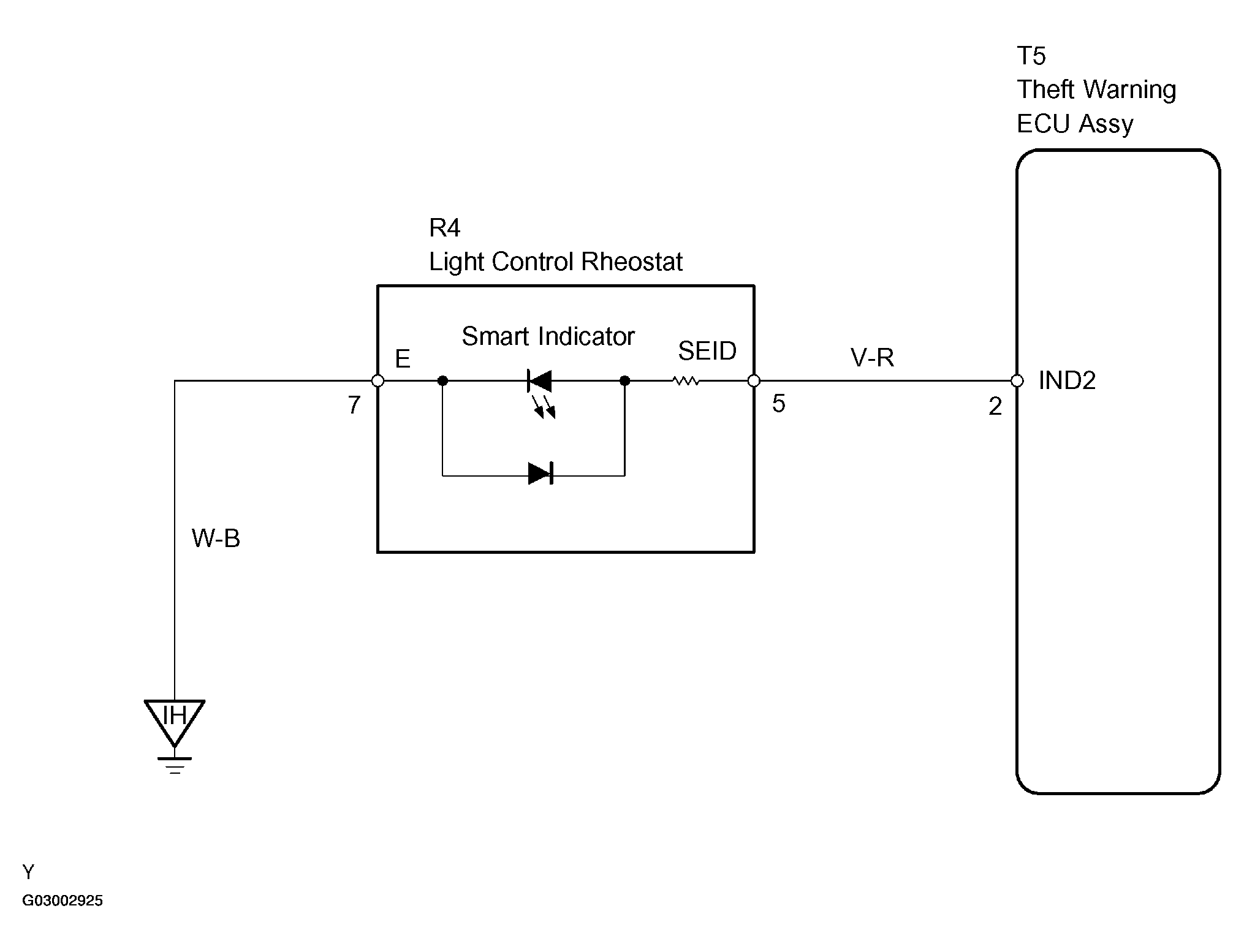

Fig 1: Smart Indicator Circuit Wiring Diagram

G03002925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
