Inspection Procedure
- CHECK WIRE HARNESS (LUGGAGE OSCILLATOR (INNER, OUTER) - BATTERY AND BODY GROUND)
- Disconnect the L16 luggage oscillator inner connector.
- Disconnect the L17 luggage oscillator outer connector.
- Measure the voltage and resistance of the wire harness side connectors and body ground.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition L16-5 (GND) - Body ground Below 1 Ω L16-1 (+B) - Body ground 10 to 14V TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition L17-3 (GND) - Body ground Below 1 Ω L17-1 (B) - Body ground 10 to 14V Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: GO TO NEXT STEP
- PERFORM ACTIVE TEST USING HAND-HELD TESTER
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch ON and press the hand-held tester main switch ON.
- Select the item below in the ACTIVE TEST and then check that the oscillator operates.
THEFT WARNING ECU REFERENCEItem Test Details Diagnostic Note IN RUG TRANSMIT In Luggage Transmitter ON/OFF - LUGG TRANSMIT Luggage Transmitter ON/OFF - OK:
When the smart key is brought close to the door the oscillator is turned ON and the indicator on the smart key illuminates.
NG: Go to step 3
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

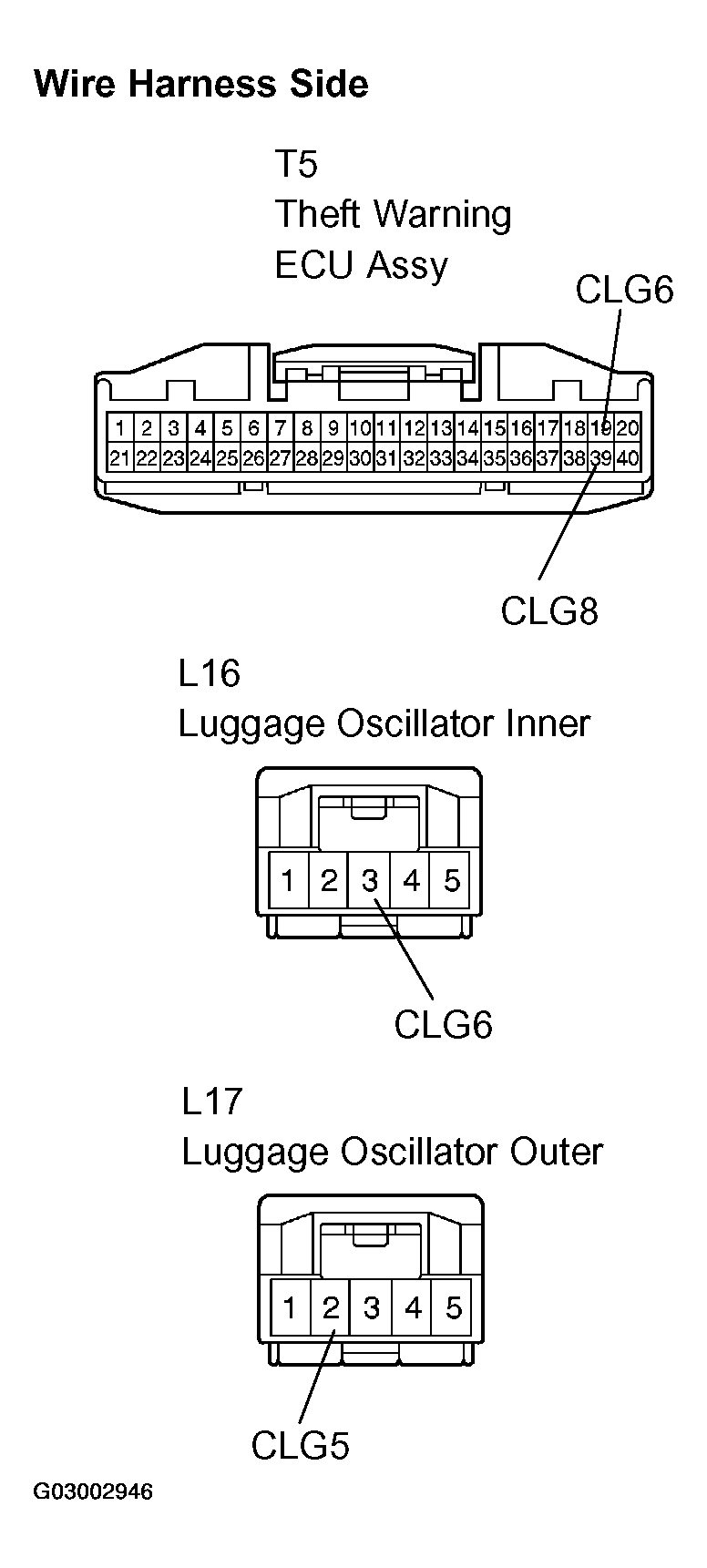

- CHECK WIRE HARNESS (THEFT WARNING ECU ASSY - LUGGAGE OSCILLATOR (INNER, OUTER))
- Disconnect the T5 ECU connector.
- Disconnect the L16 luggage oscillator inner connector.
- Disconnect the L17 luggage oscillator outer connector.
- Measure the resistance of the wire harness side connectors.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition T5-19 (CLG6) - L16-3 (CLG6) Below 1 Ω T5-19 (CLG6) or L16-3 (CLG6) - Body ground 10 kΩ or higher TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition T5-39 (CLG8) - L17-2 (CLG5) Below 1 Ω T5-39 (CLG8) or L17-2 (CLG5) - Body ground 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
