Engine Mechanical: Preparation

SST

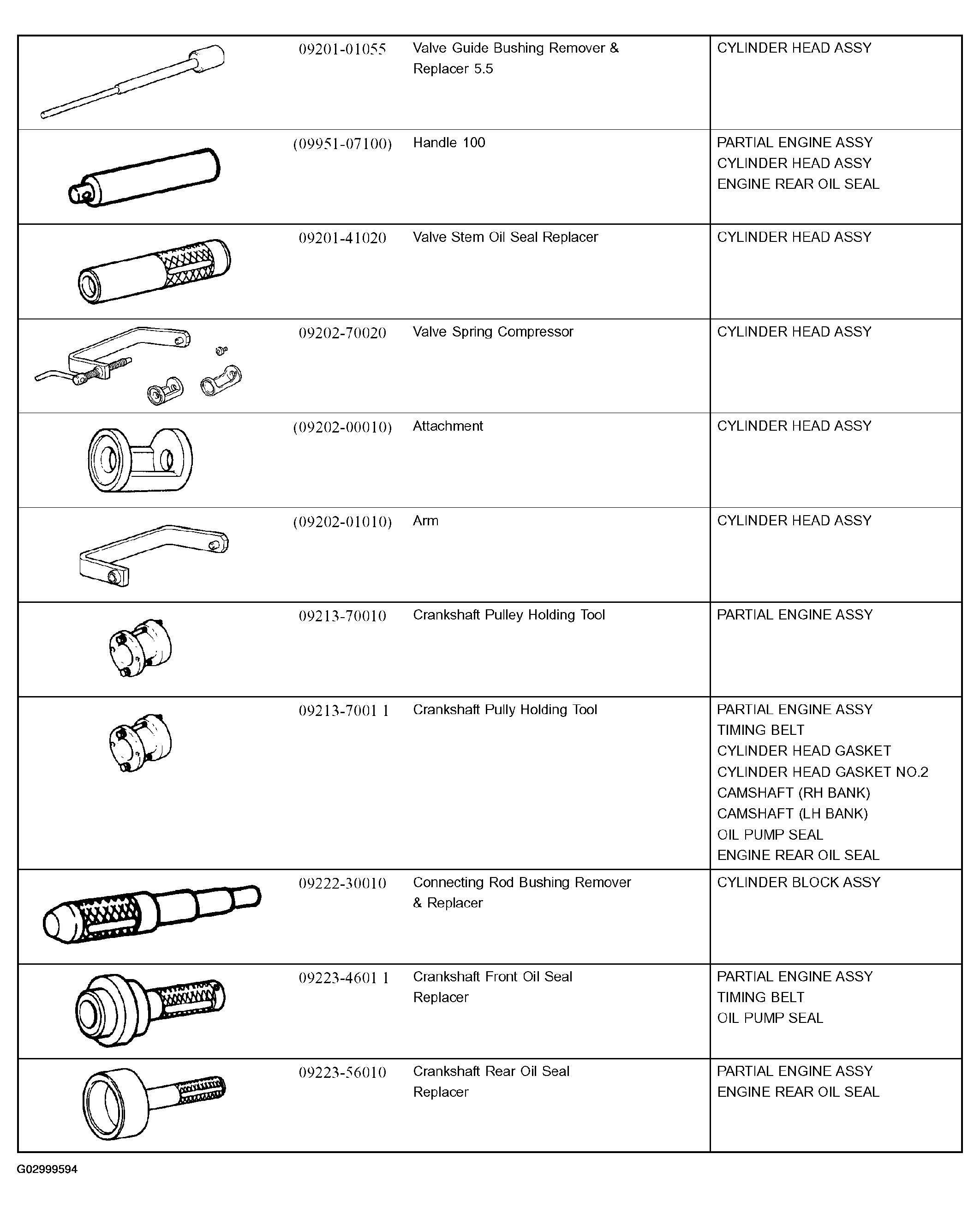

Fig 1: Engine Mechanical Tools Reference (1 Of 4)

G02999594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

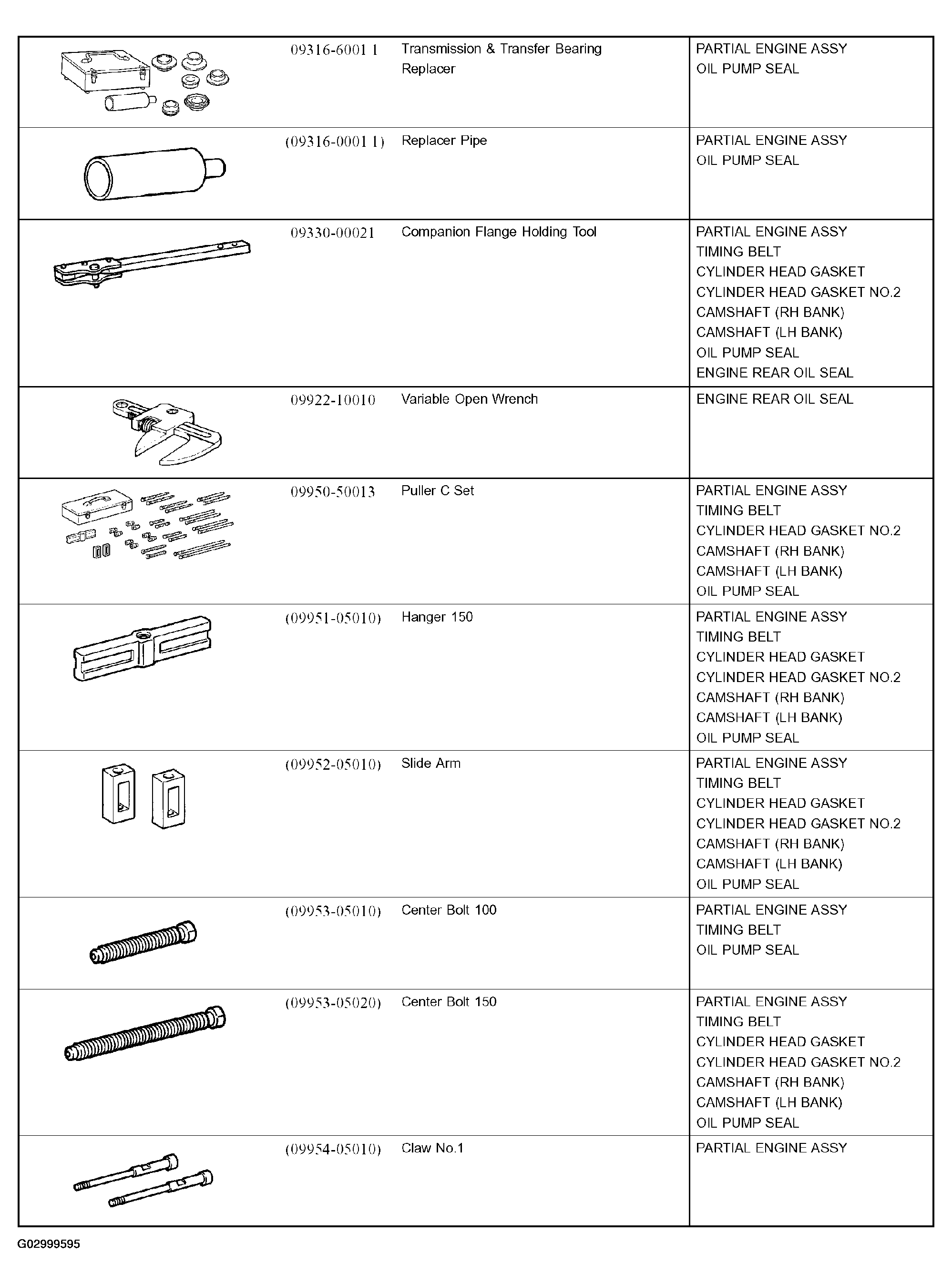

Fig 2: Engine Mechanical Tools Reference (2 Of 4)

G02999595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

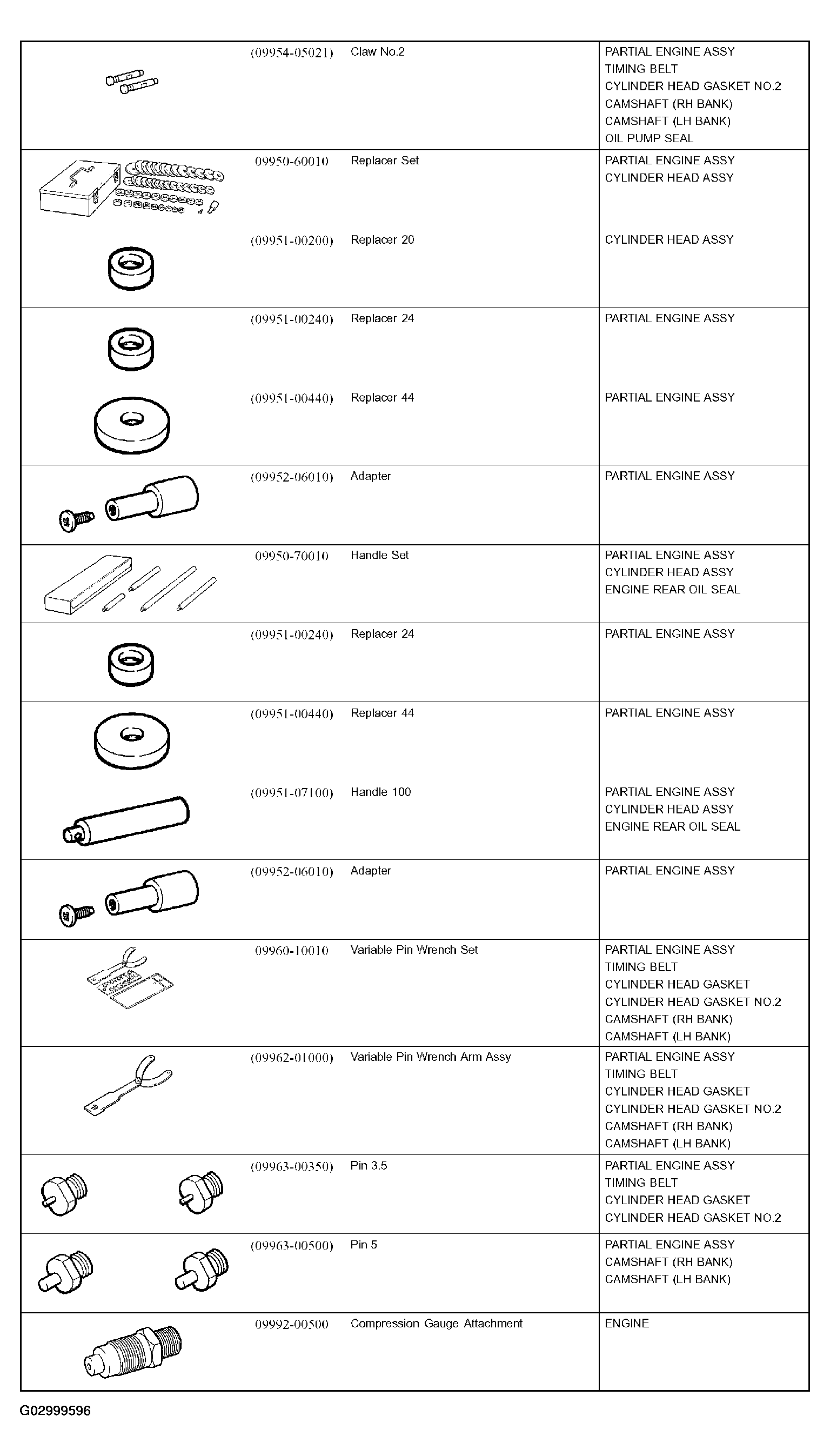

Fig 3: Engine Mechanical Tools Reference (3 Of 4)

G02999596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

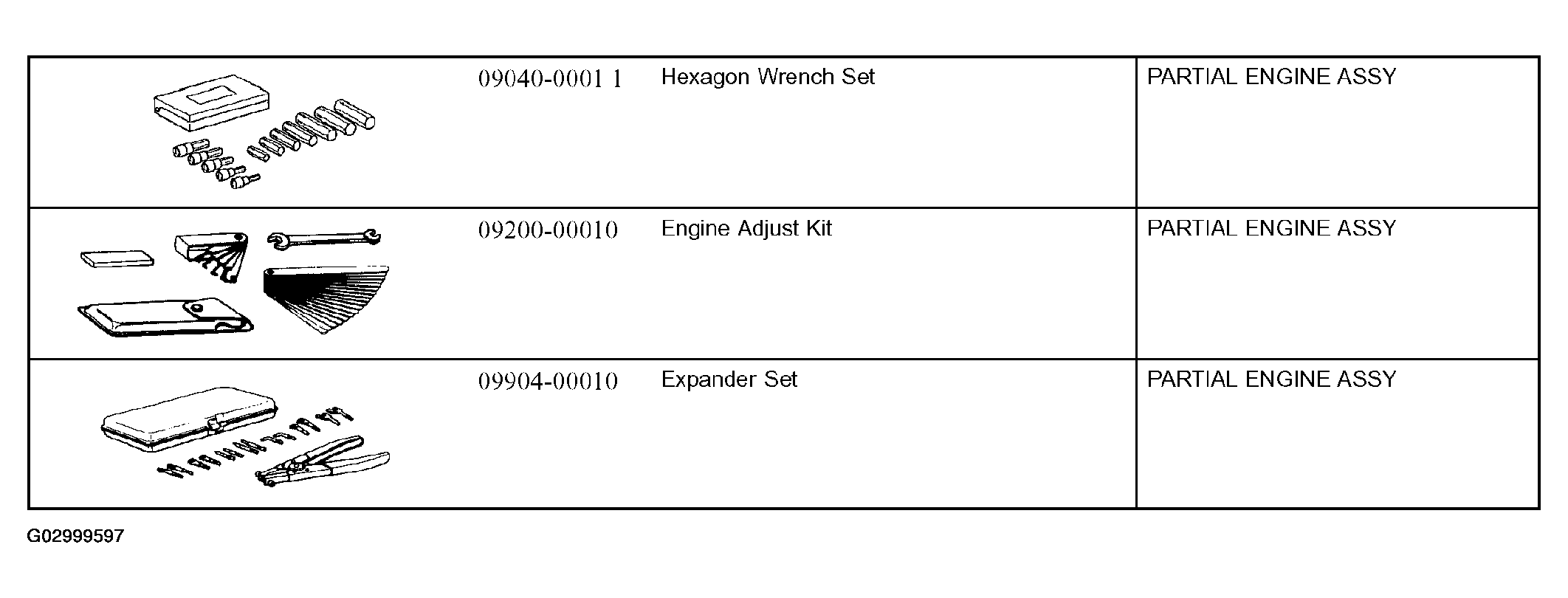

Fig 4: Engine Mechanical Tools Reference (4 Of 4)

G02999597

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT

Abrasive compound	Valve
Brush	Piston
Caliper gauge
Carbide cutter (30°)	Valve seat
Carbide cutter (45°)	Valve seat
Carbide cutter (60°)	Valve seat
CO/HC meter
Compression gauge
Connecting rod aligner
Cylinder gauge
Dial indicator
Dye penetrant
Engine tune-up tester
Groove cleaning tool	Piston ring groove
Heater
Hexagon wrench (1.27 mm)	Timing belt tensioner
Micrometer
Pin hole grinder	Connecting rod bushing
Piston ring compressor
Piston ring expander
Plastigage
Precision straight edge
Press
Reamer (5.5 mm)	Cylinder
Ridge reamer	Cylinder
Soft brush	Cylinder head Cylinder block
Solvent
Spring tester	Valve spring
Steel square	Valve spring
Thermometer
Torque wrench
Valve seat cutter
Valve guide bushing brush
V-block
Vernier calipers
Wire brush	Valve Cylinder head

SSM

SSM REFERENCE

08826-00080 Seal Packing Black or equivalent (FIPG)	CYLINDER HEAD GASKET NO.2 CAMSHAFT (LH BANK)
08833-00070 "Adhesive 1324," THREE BOND 1324 or equivalent	ENGINE REAR OIL SEAL
