System Diagram

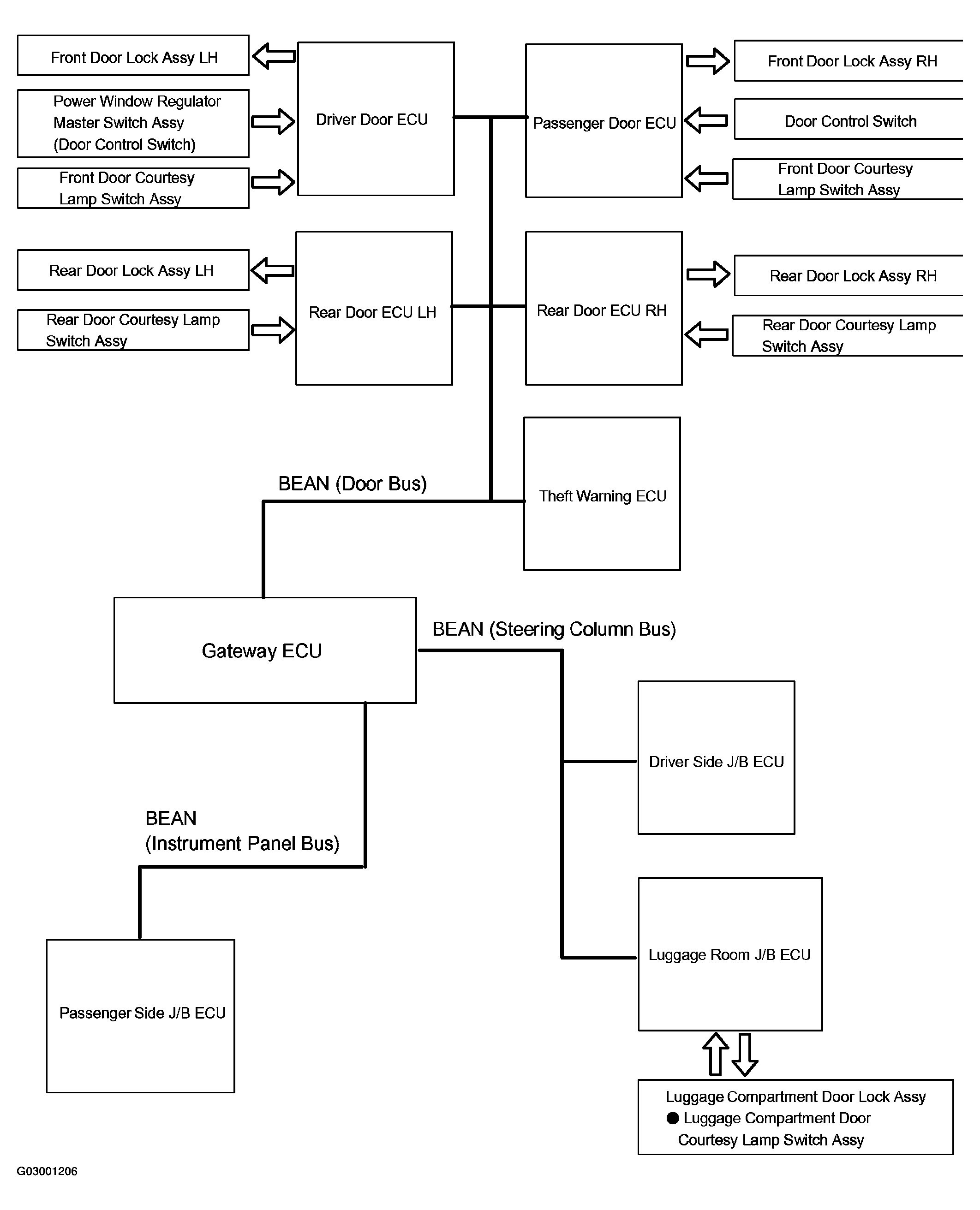

Fig 1: Power Door Lock Control System Diagram
G03001206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

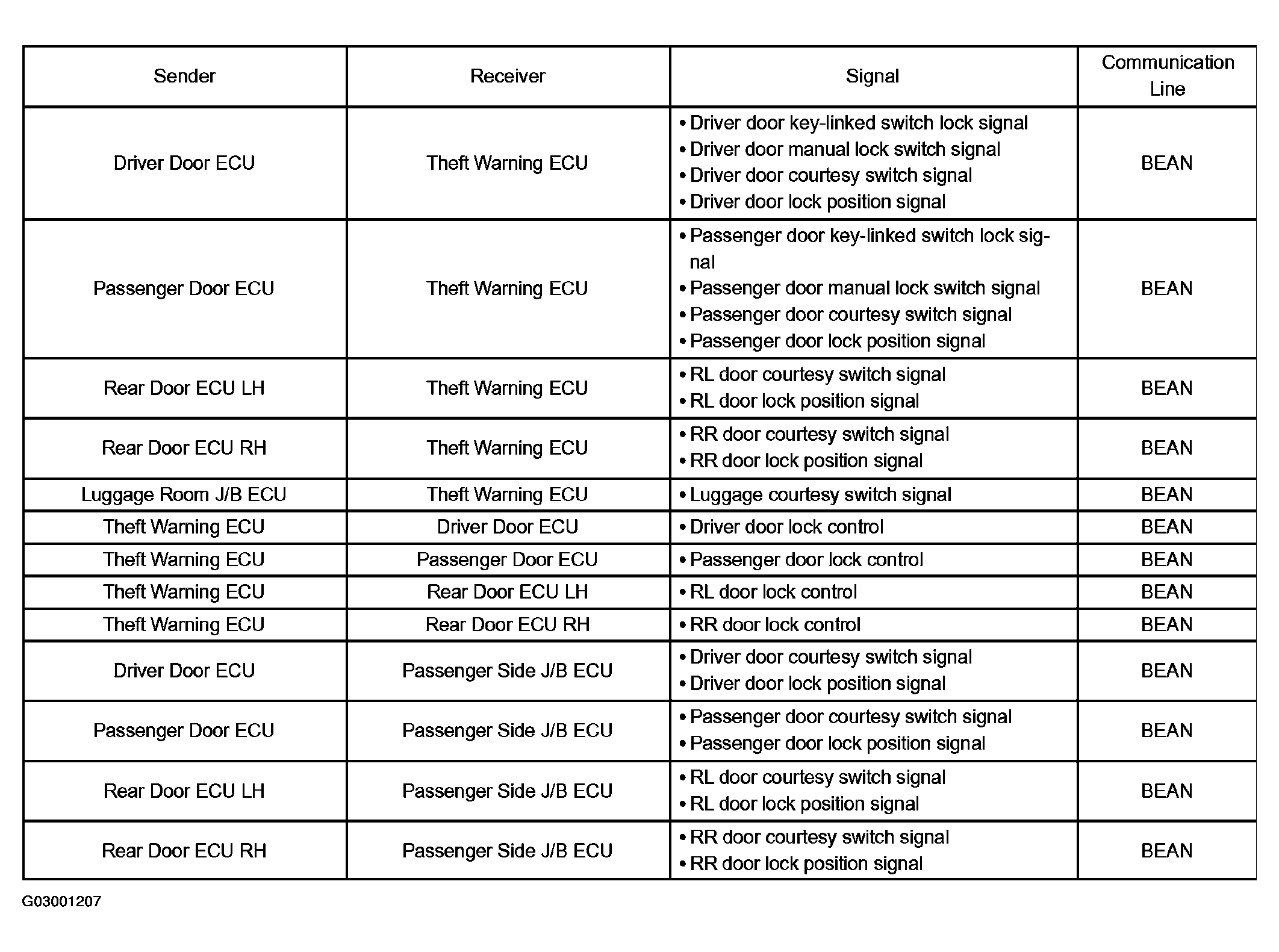

Fig 2: Power Door Lock Control System Diagram Reference
G03001207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
