Home >> Lexus >> 2005 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock - Diagnostics >> Location

Power Door Lock - Diagnostics: Location

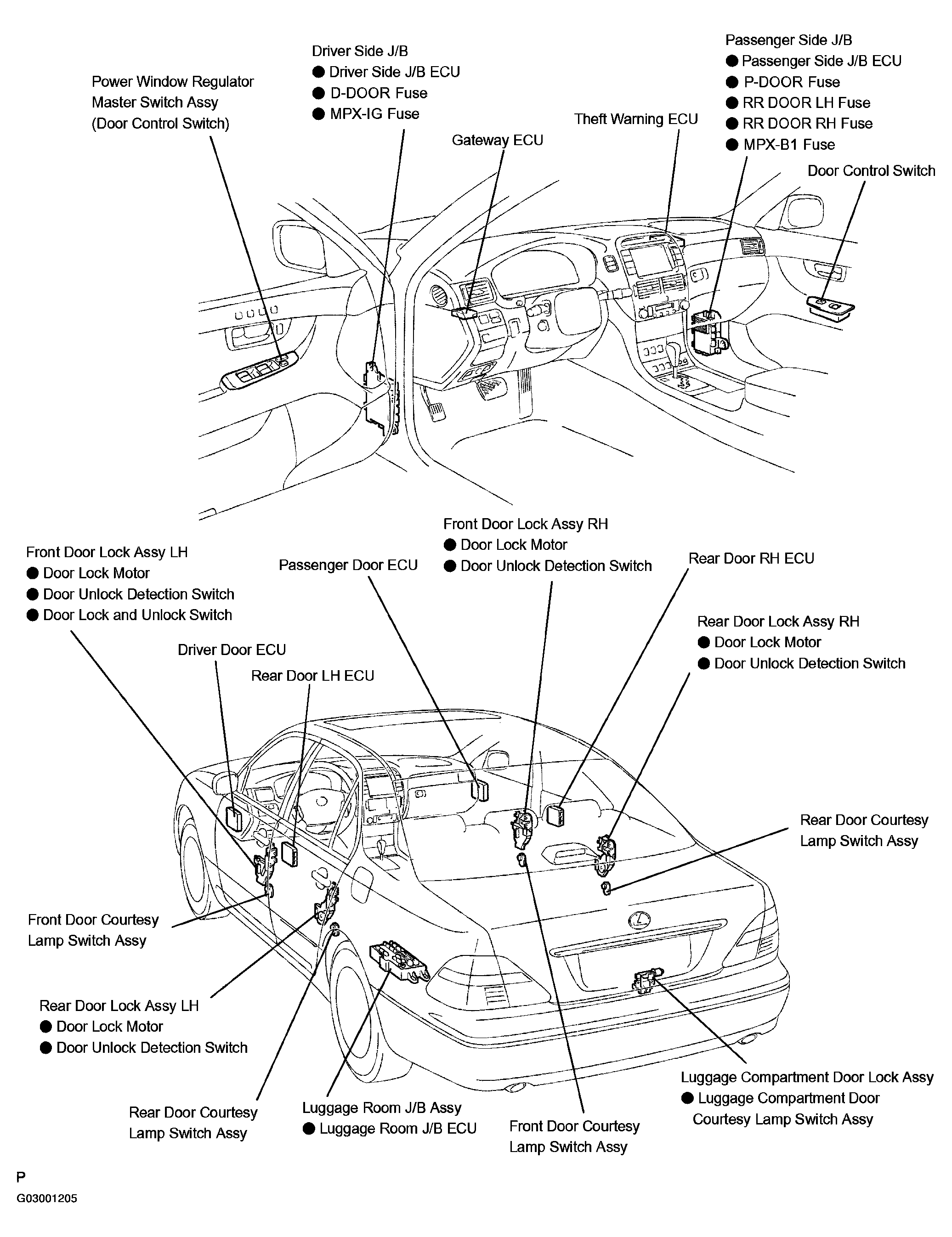

Fig 1: Locating Power Door Lock Control System Components

G03001205

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
