Data List/Active Test

HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST on the tester's screen.

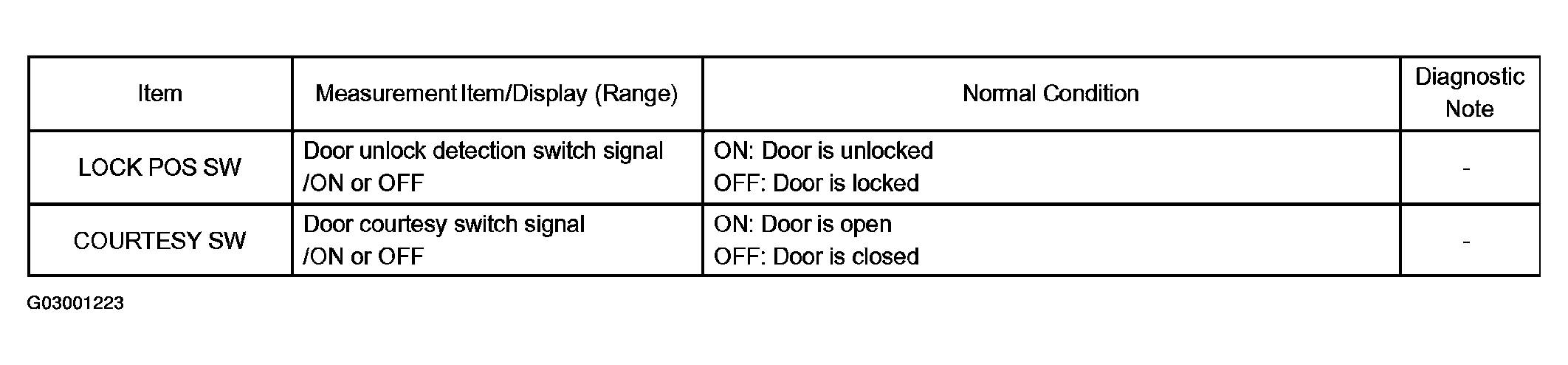

Multiplex network body ECU (Driver door ECU):

Fig 1: Multiplex Network Body ECU - Data List Chart (Driver Door ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network body ECU (Passenger door ECU):

Fig 2: Multiplex Network Body ECU - Data List Chart (Passenger Door ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network body ECU (Rear door LH ECU):

Fig 3: Multiplex Network Body ECU - Data List Chart (Rear Door LH ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex network body ECU (Rear door RH ECU):

Fig 4: Multiplex Network Body ECU - Data List Chart (Rear Door RH ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

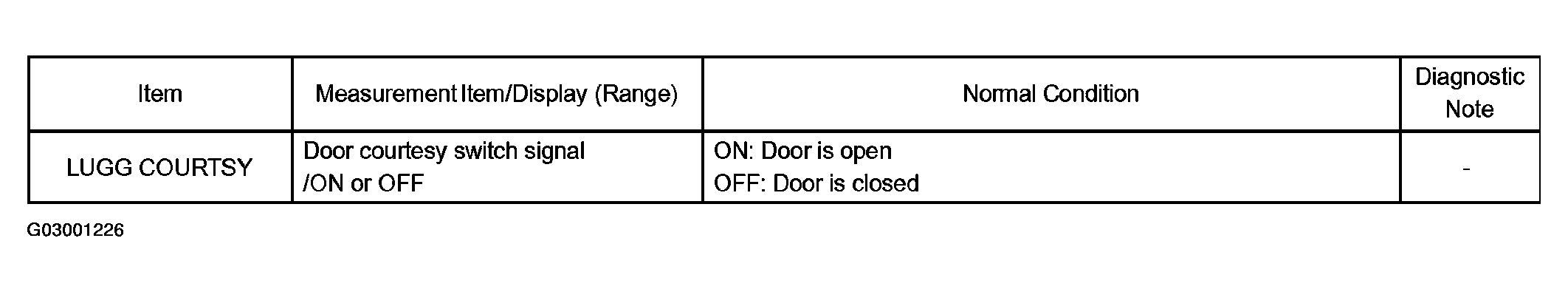

Luggage room J/B ECU:

Fig 5: Luggage Room J/B ECU - Data List Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

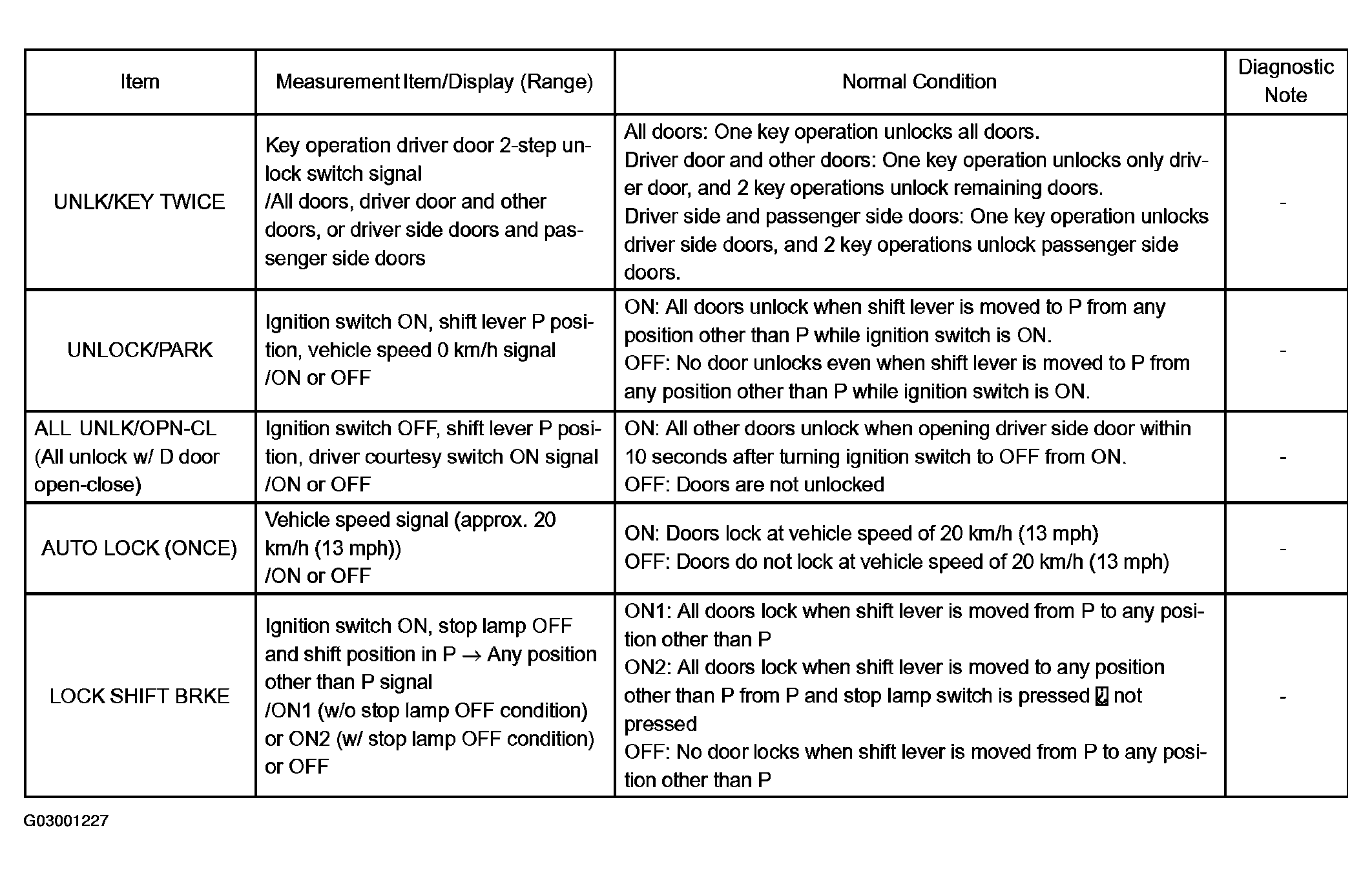

Theft warning ECU:

Fig 6: Theft Warning ECU - Data List Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Perform the ACTIVE TEST according to the display on the tester.

Multiplex network body ECU (Driver door ECU):

Multiplex network body ECU (Passenger door ECU):

Multiplex network body ECU (Rear left door ECU):

Multiplex network body ECU (Rear right door ECU):
