Terminals Of Ecu
- CHECK TRANSPONDER KEY ECU ASSY
- Disconnect the T9 ECU connector.
- Measure the voltage and resistance of the wire harness side connector.
Standard:
SPECIFIED CONDITIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition CPUB (T9-1) - GND (T9-14) V-Y - W-B +B (CPUB) power supply Always 10 to 14V GND (T9-14) - Body ground W-B - Body ground Ground Always Below 1 Ω KSW (T9-3) - GND (T9-14) LG-B - W-B Unlock warning switch input 1: No key in ignition key cylinder --> 2: Key inserted 1: 10 kΩ or higher --> 2: Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side.
- Reconnect the T9 ECU connector.
- Measure the voltage of the connector.
Standard:
SPECIFIED CONDITIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition KSW (T9-3) - GND (T9-14) LG-B - W-B Unlock warning switch input 1: No key in ignition key cylinder --> 2: Key inserted 1: 10 to 14V --> 2:0 V If the result is not as specified, the ECU may have a malfunction.
- CHECK STEERING LOCK ECU
- Disconnect the S46 ECU connector.
- Measure the voltage and resistance of the wire harness side connector.
Standard:
SPECIFIED CONDITIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition CPUB (S46-1) - Body ground V-Y - Body ground +B (CPUB) Power supply Always 10 to 14V +B (S46-10)- Body ground R-L - Body ground +B Power supply Always 10 to 14V KSW (S46-12) - Body ground LG-B -Body ground Unlock warning switch input 1: No key in starter switch --> 2: Key inserted 1: 10 kΩ or higher --> 2: Below 1 Ω PUSH (S46-11)- Body ground P-B -Body ground Push switch input 1: No key in starter switch --> 2: Key inserted 1: 10 kΩ or higher --> 2: Below 1 Ω GND (S46-9) - Body ground W-B -Body ground Ground Always Below 1Ω If the result is not as specified, there may be a malfunction on the wire harness side.
- Reconnect the S46 ECU connector.
- Measure the voltage of the connector.
Standard:
SPECIFIED CONDITIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition KSW (S46-12) - GND (S46-9) LG-B - W-B Unlock warning switch input 1: No key in ignition cylinder --> 2: Key inserted 1: 10 to 14V --> 2: 0V PUSH (S46-11) - GND (S46-9) P-B - W-B Push switch input 1: No key in ignition cylinder --> 2: Key inserted 1: 10 to 14V --> 2:0V If the result is not as specified, the ECU may have a malfunction.
- CHECK DRIVER DOOR ECU

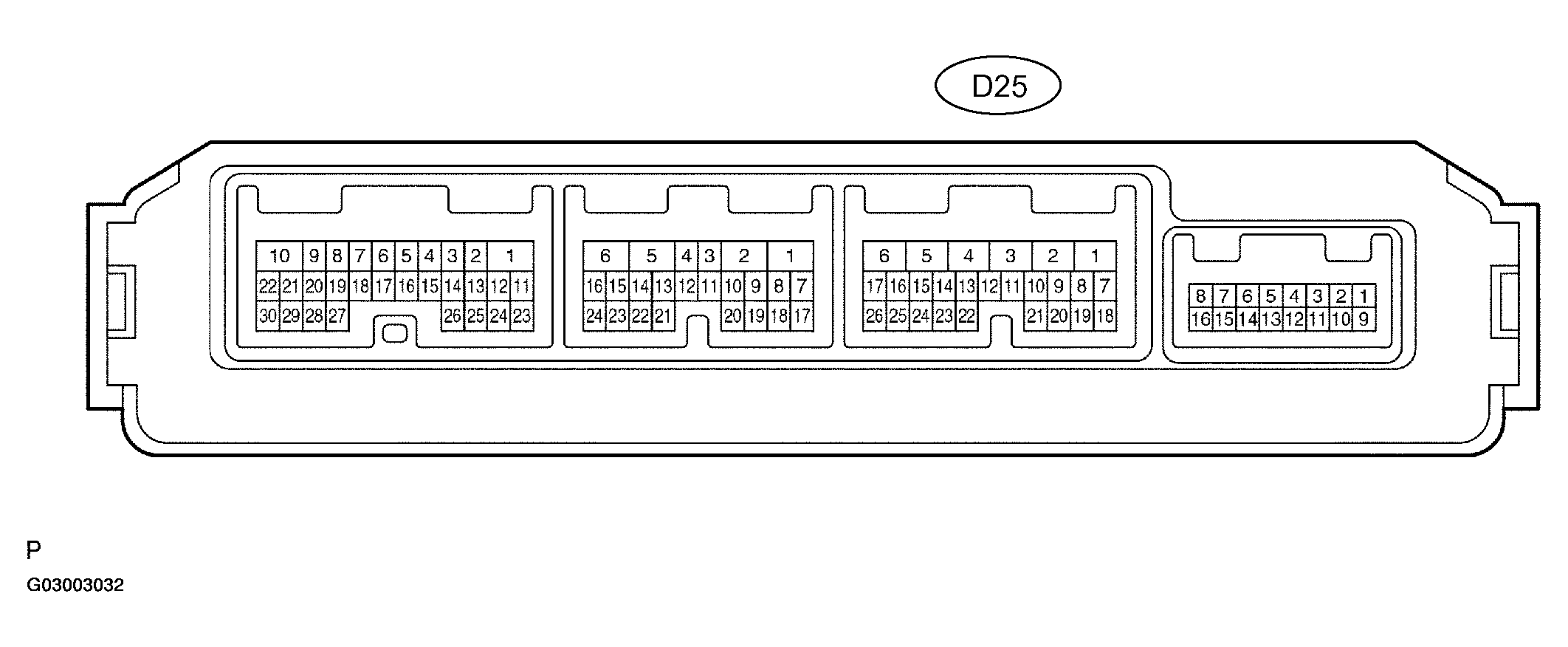

- Disconnect the D25 ECU connector.
- Measure the voltage and resistance of the wire harness side connector.
Standard:
SPECIFIED CONDITIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition CPUB (D25-4) -Body ground V-Y -Body ground +B (CPUB) power supply Always 10 to 14V SIG (D25-5) -Body ground R-L -Body ground +B (SIG) power supply Ignition switch 1: OFF --> 2: ON 1: Below 1 V --> 2: 10 to 14V BDR (D25-6) -Body ground R-Body ground +B (BDR) power supply Always 10 to 14V GND (D25-1) -Body ground W-B -Body ground Ground Always Below 1 Ω CTY (D25-23) -Body ground P-G -Body ground Driver door courtesy switch input Driver door 1: CLOSED --> 2: OPEN 1: 10 kΩ or higher --> 2: Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side.
