Accessories & Equipment: Seats: Preparation: Brake: Preparation

SST

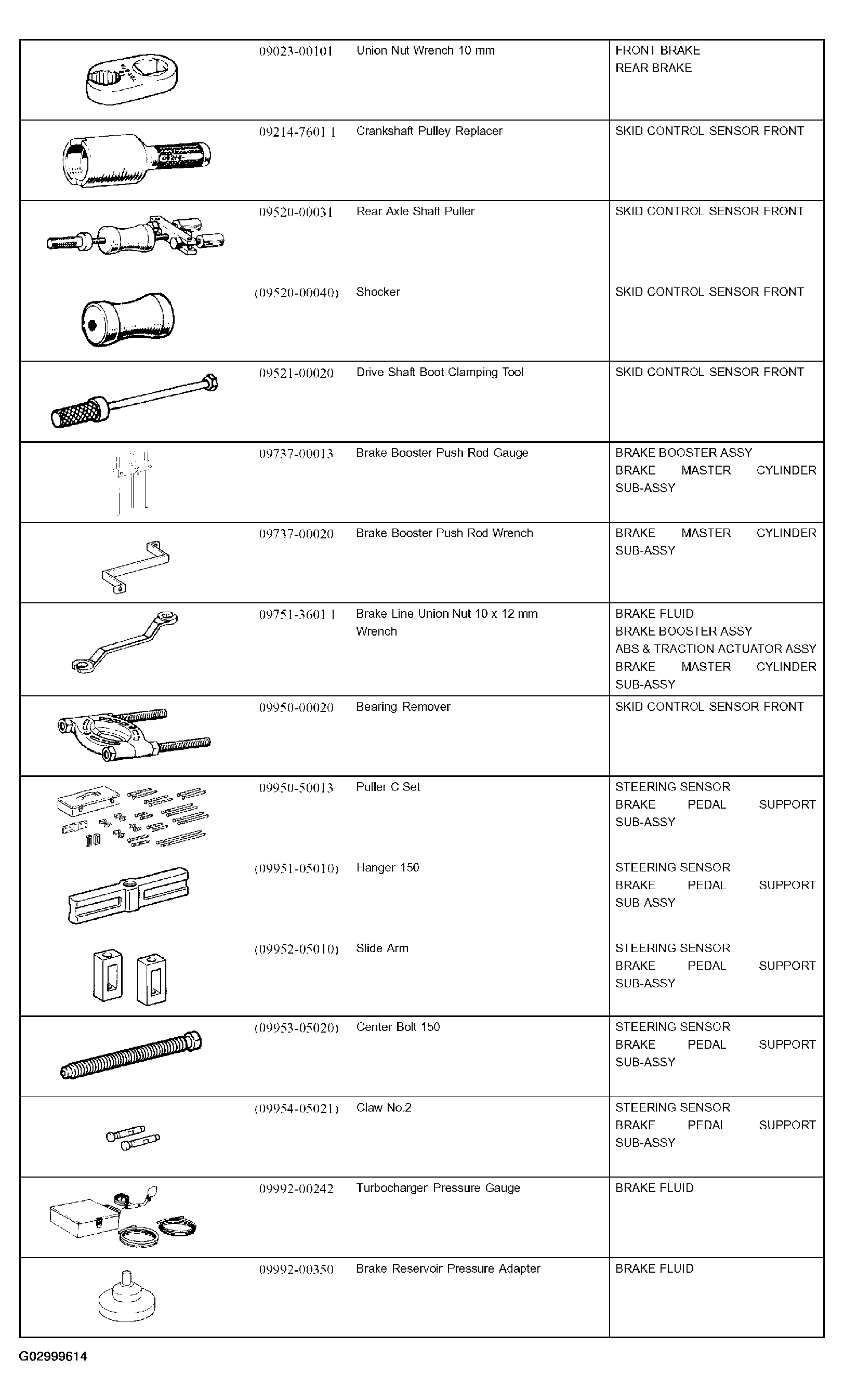

Fig 1: Brake Tools Reference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

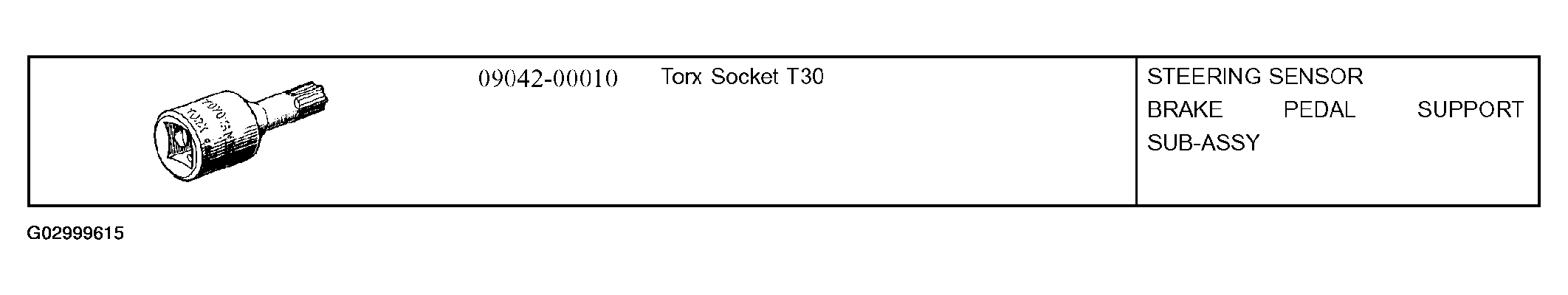

Fig 2: Recommended Tools Reference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT

Micrometer
Dial indicator w/ magnetic base
Brake drum gauge
Slide calipers
Torque wrench

Lubricant

LUBRICANT CLASSIFICATION

Item	Capacity	Classification
Brake fluid	-	SAE J1703 or FMVSS No. 116 DOT3
