Inspection Procedure

Fig 1: Displaying Menu

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Enter the "MENU" screen by pressing the "MENU" switch.
2. Enter the volume adjustment screen by pressing the "Volume" switch.
   Fig 2: Identifying Off Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that "OFF" is not selected.

OK: OFF is not selected.

NG: TURN VOICE GUIDANCE VOLUME UP TO 4 USING VOICE ADJUSTMENT SWITCHES

OK: GO TO NEXT STEP

Fig 3: Displaying Menu

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Enter the "MENU" screen by pressing the "MENU" switch.
2. Enter the "Setup" screen by pressing the "Setup" switch.

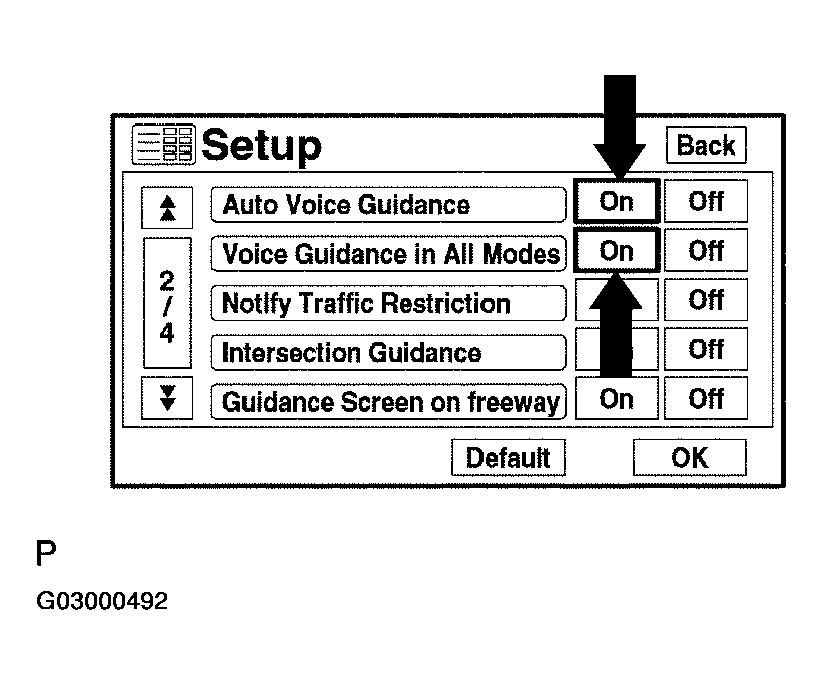

   Fig 4: Displaying Setup

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that "Auto Voice Guidance" is not OFF.

   OK: Auto voice guidance is not OFF.

4. Check if "Voice Guidance in All Modes" is ON.

   OK: Voice guidance in all modes is ON.

NG: TURN AUTO VOICE GUIDANCE TO "ON"

OK: GO TO NEXT STEP

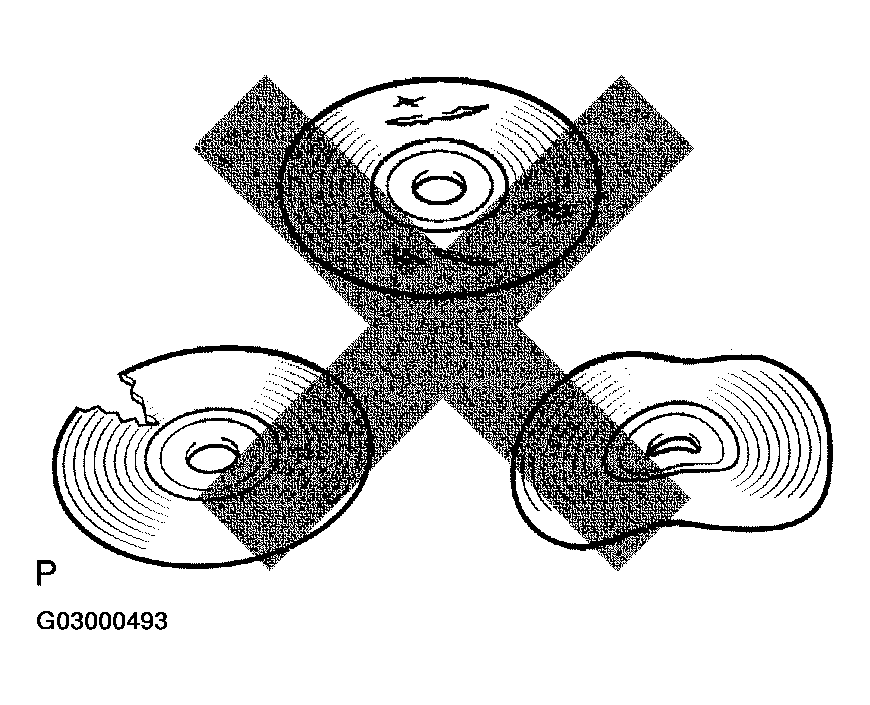

Fig 5: Identifying Map Disc

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

NG: REPLACE THE MAP DISC

OK: GO TO NEXT STEP

1. Check if audio sound can be heard from the driver's side speaker.

   OK: Audio sound can be heard.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

OK: REPLACE NAVIGATION ECU (SEE  REPLACEMENT  )
