System Diagram

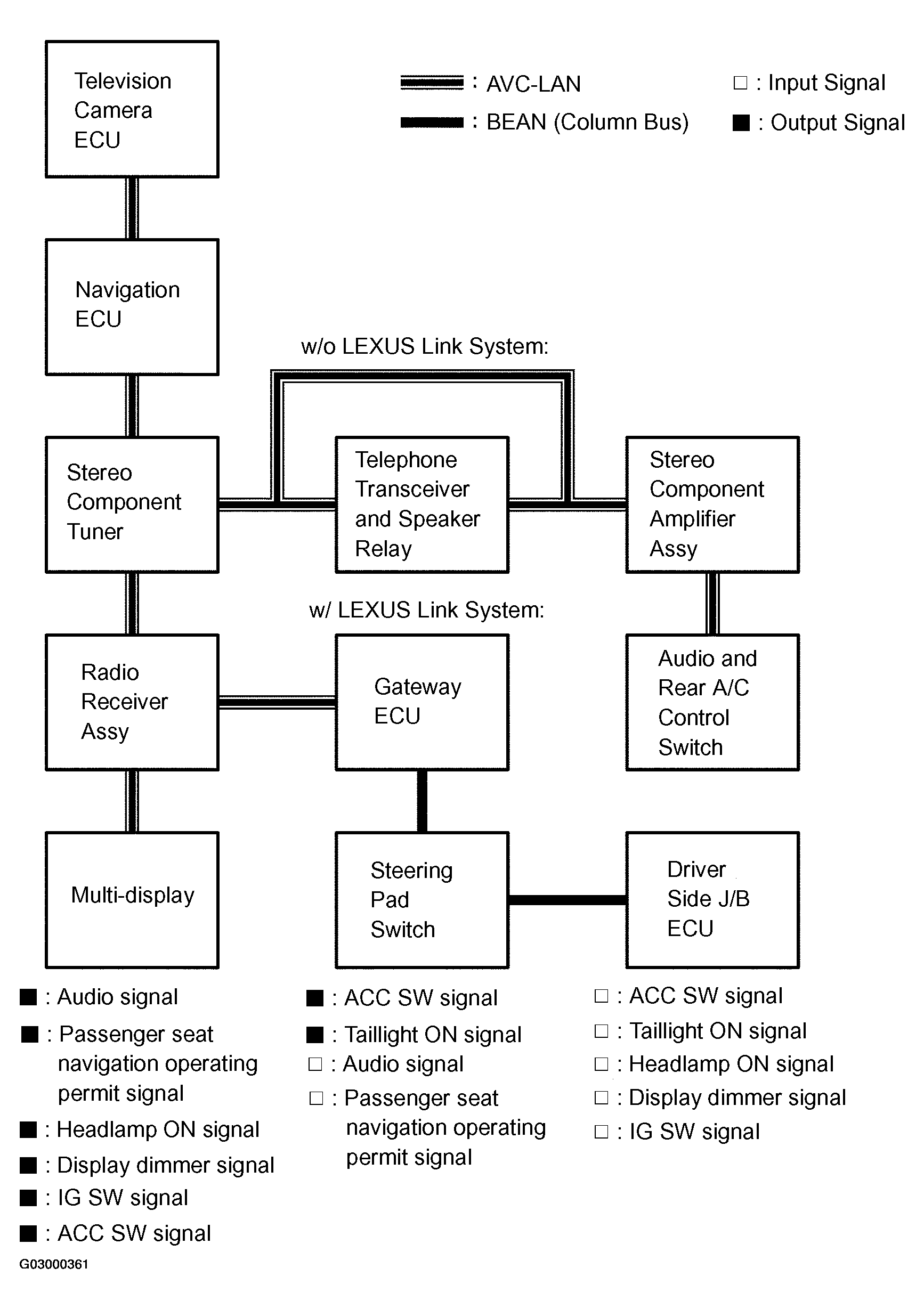

Fig 1: Lexus Navigation System Diagram (1 Of 2)
G03000361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

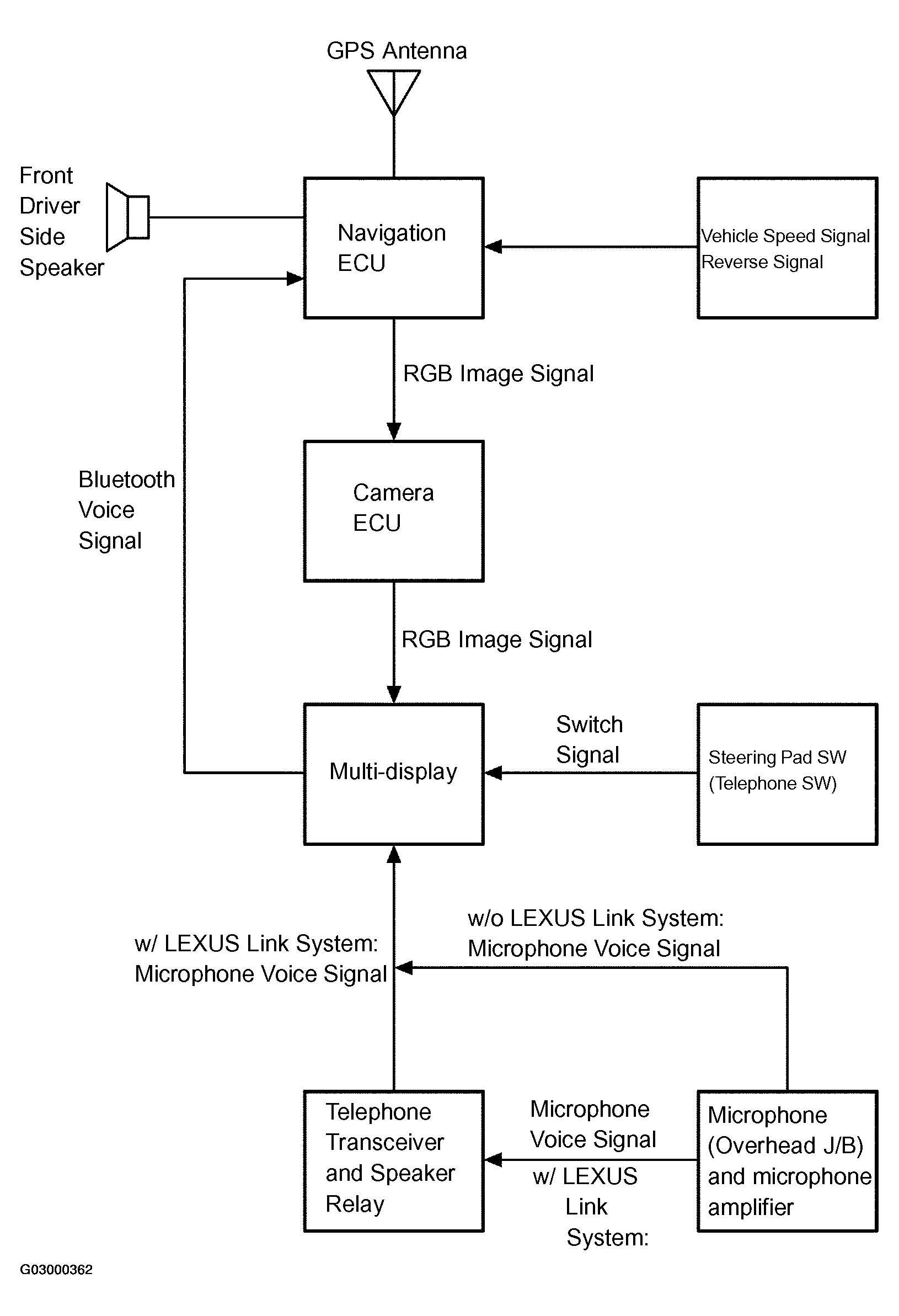

Fig 2: Lexus Navigation System Diagram (2 Of 2)
G03000362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
