LEXUS Navigation System - Diagnostics: Location

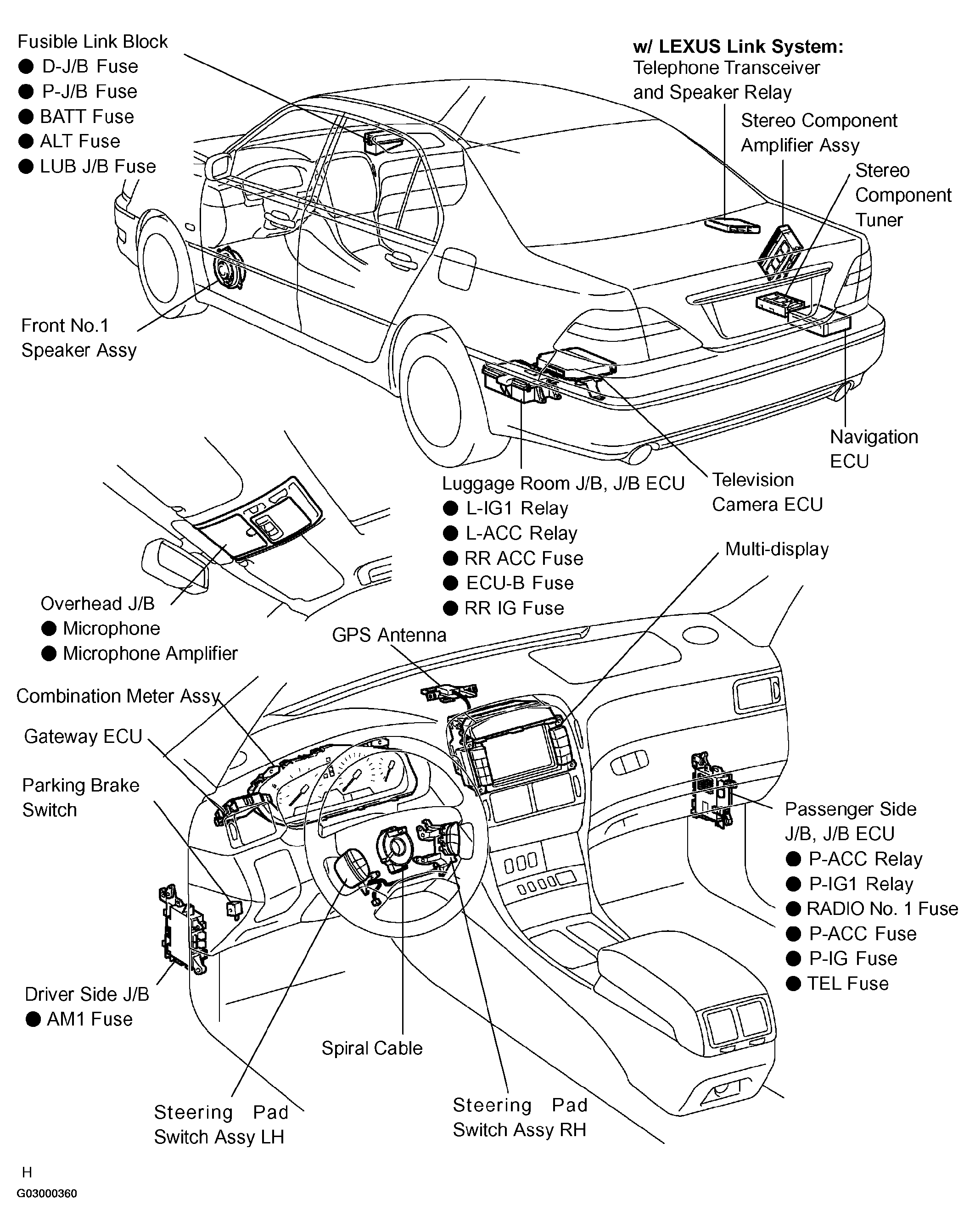

Fig 1: Locating Lexus Navigation System Components

G03000360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
