Home >> Lexus >> 2005 >> LS 430 >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting >> Headlamp ASSY >> Components

Headlamp ASSY: Components

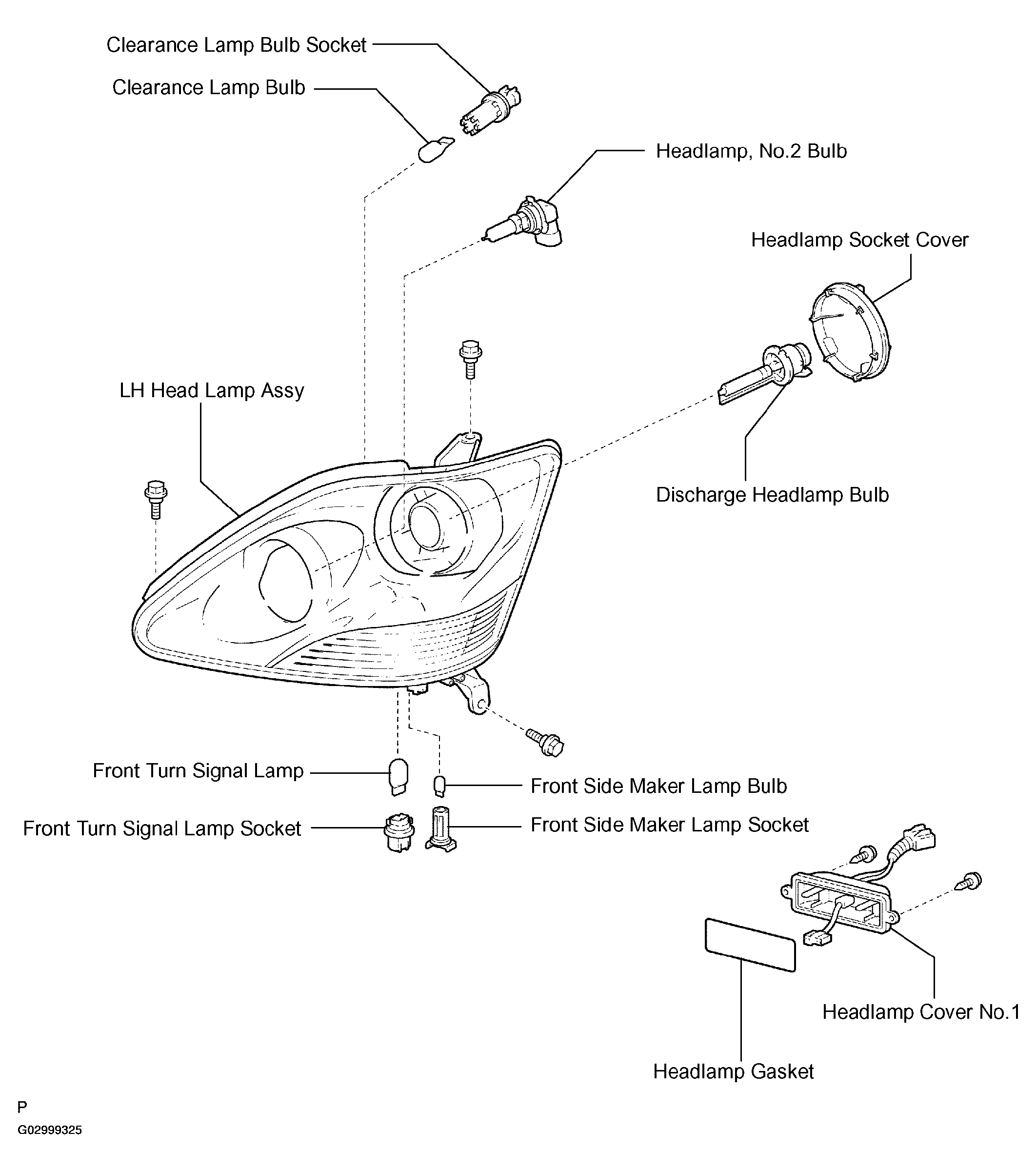

Fig 1: Identifying Headlamp Assy Components And Replacements

G02999325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
