Microphone ASSY: Replacement

HINT:

• See COMPONENTS .
• See LOCATION  .
• Installation is in the reverse order of removal.

1. REMOVE MAP LAMP ASSY (See step 32 on  REPLACEMENT  )
2. REMOVE MICROPHONE ASSY
   1. Disconnect the connector.
   2. Remove the screw.
   3. Peel the adhesive tape and remove the microphone assy.

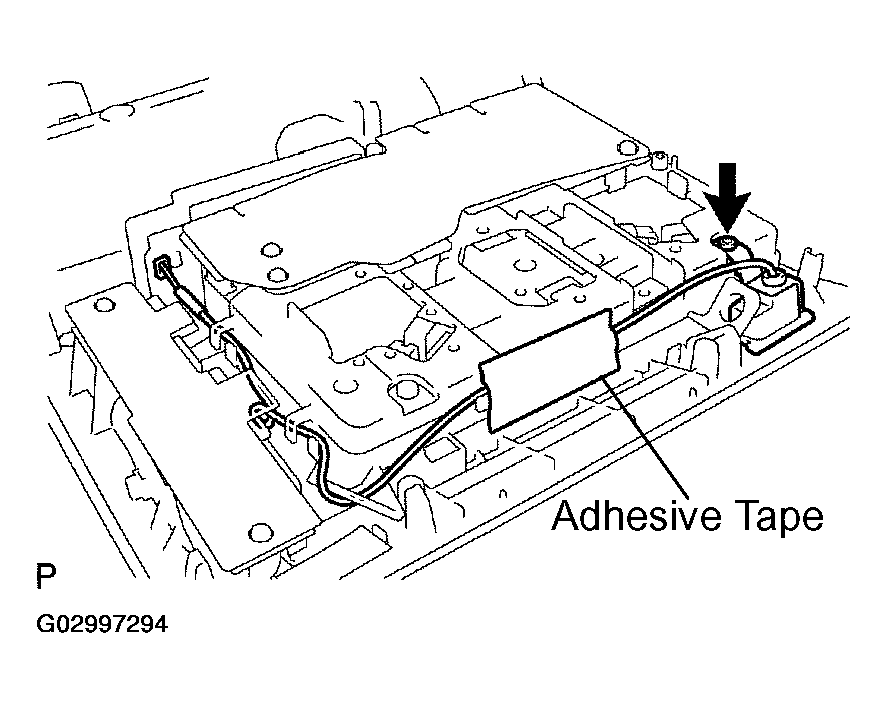

      Fig 1: Removing Microphone Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
