Dynamic Radar Cruise Control System - Diagnostics
>>
Location
Dynamic Radar Cruise Control System - Diagnostics: Location

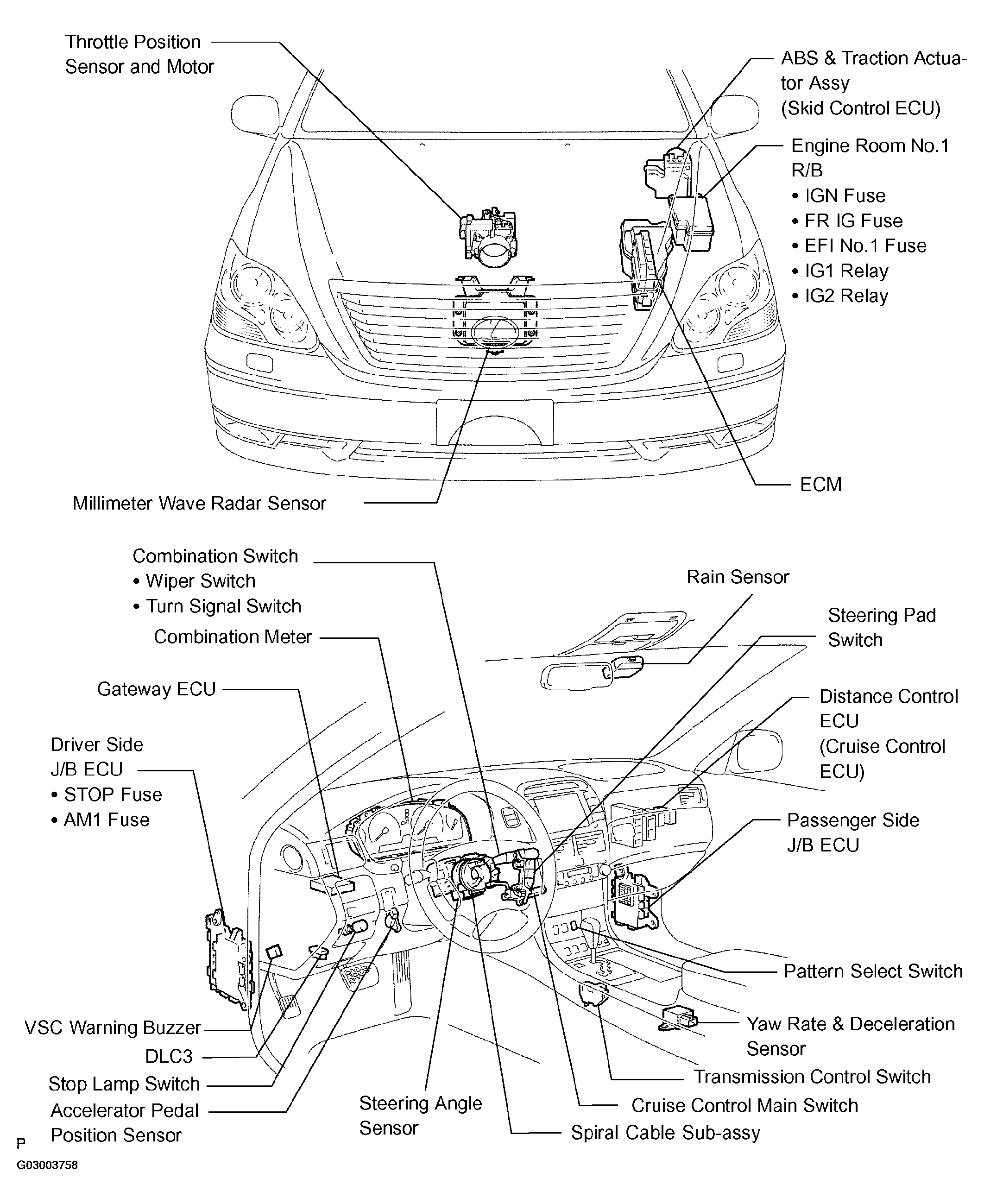

Fig 1: Identifying Dynamic Radar Cruise Control System Electrical Components Location (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

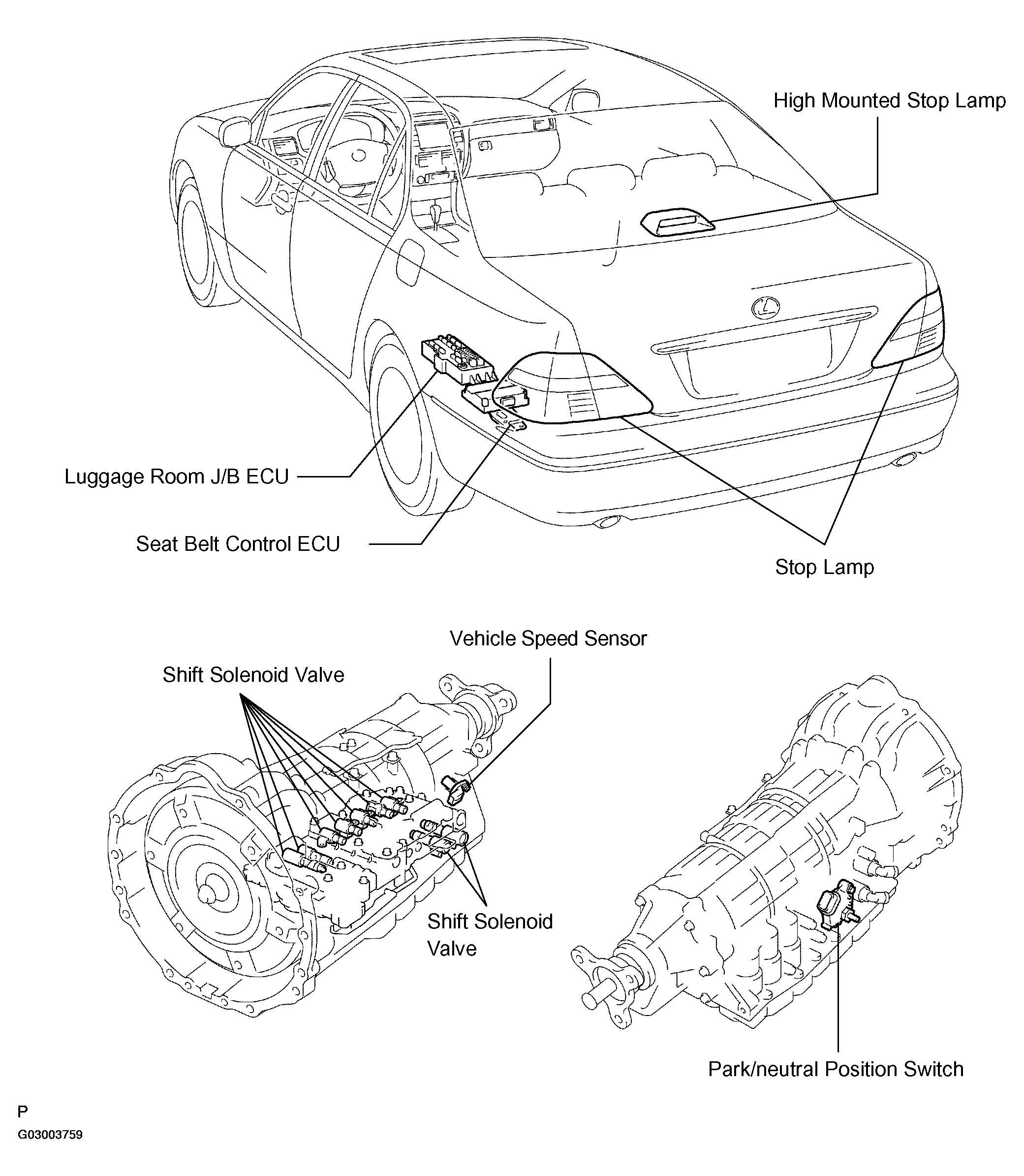

Fig 2: Identifying Dynamic Radar Cruise Control System Electrical Components Location (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
