System Diagram

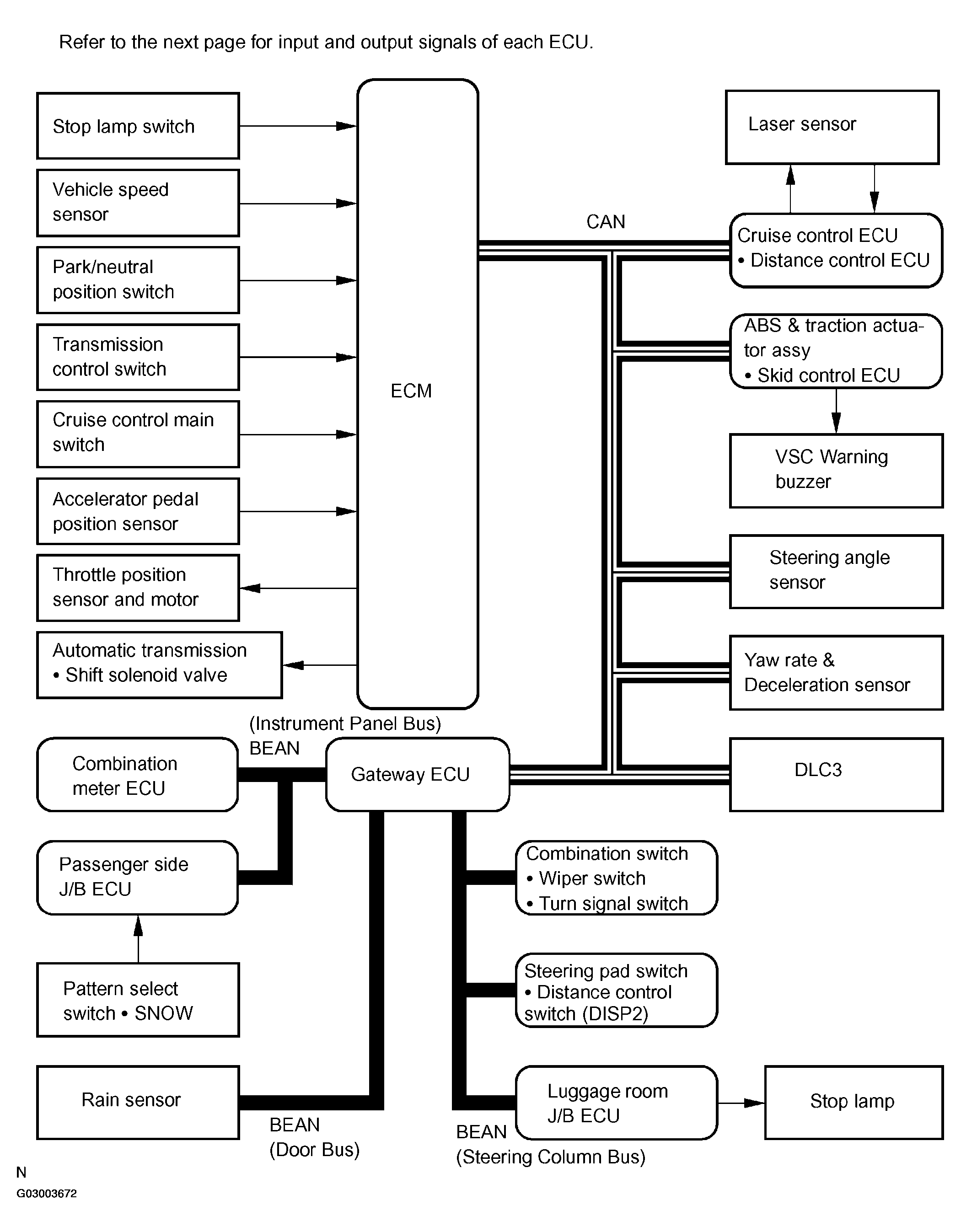

Fig 1: Wiring Diagram - Dynamic Laser Cruise Control System
G03003672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Input and output signals of each ECU.

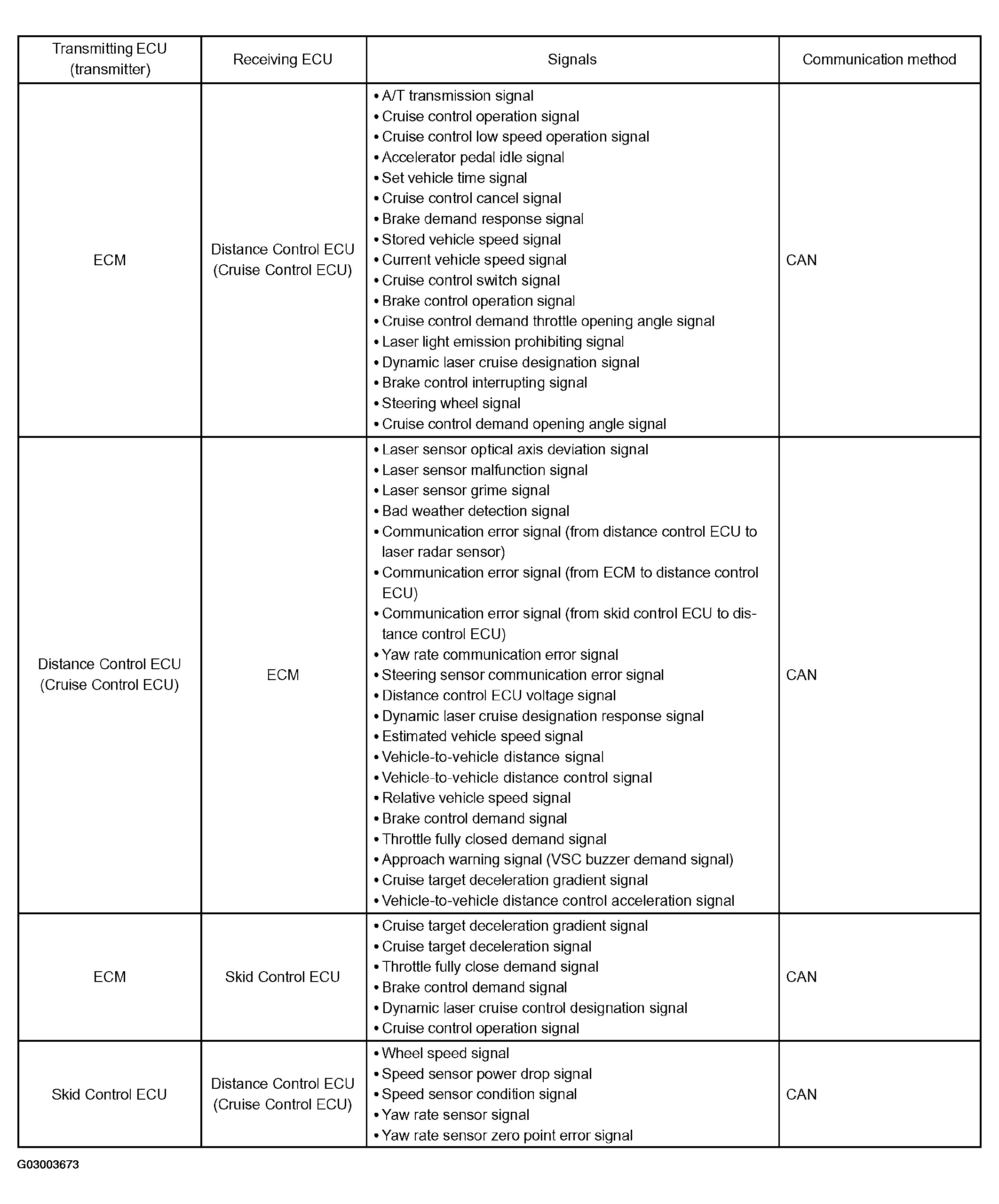

Fig 2: ECU Input And Output Signals Chart (1 Of 2)
G03003673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

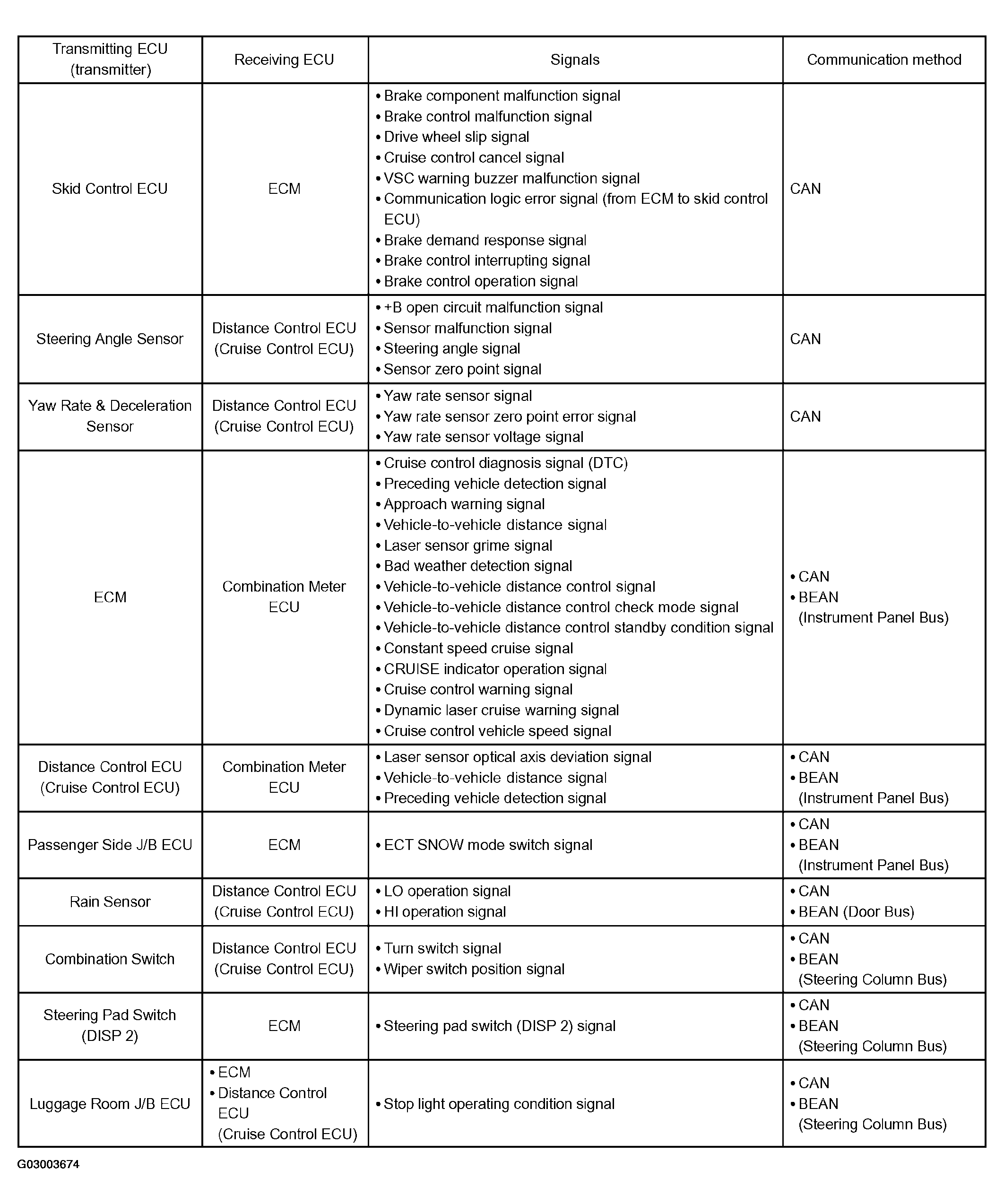

Fig 3: ECU Input And Output Signals Chart (2 Of 2)
G03003674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
