Dynamic Laser Cruise Control System - Diagnostics: Location

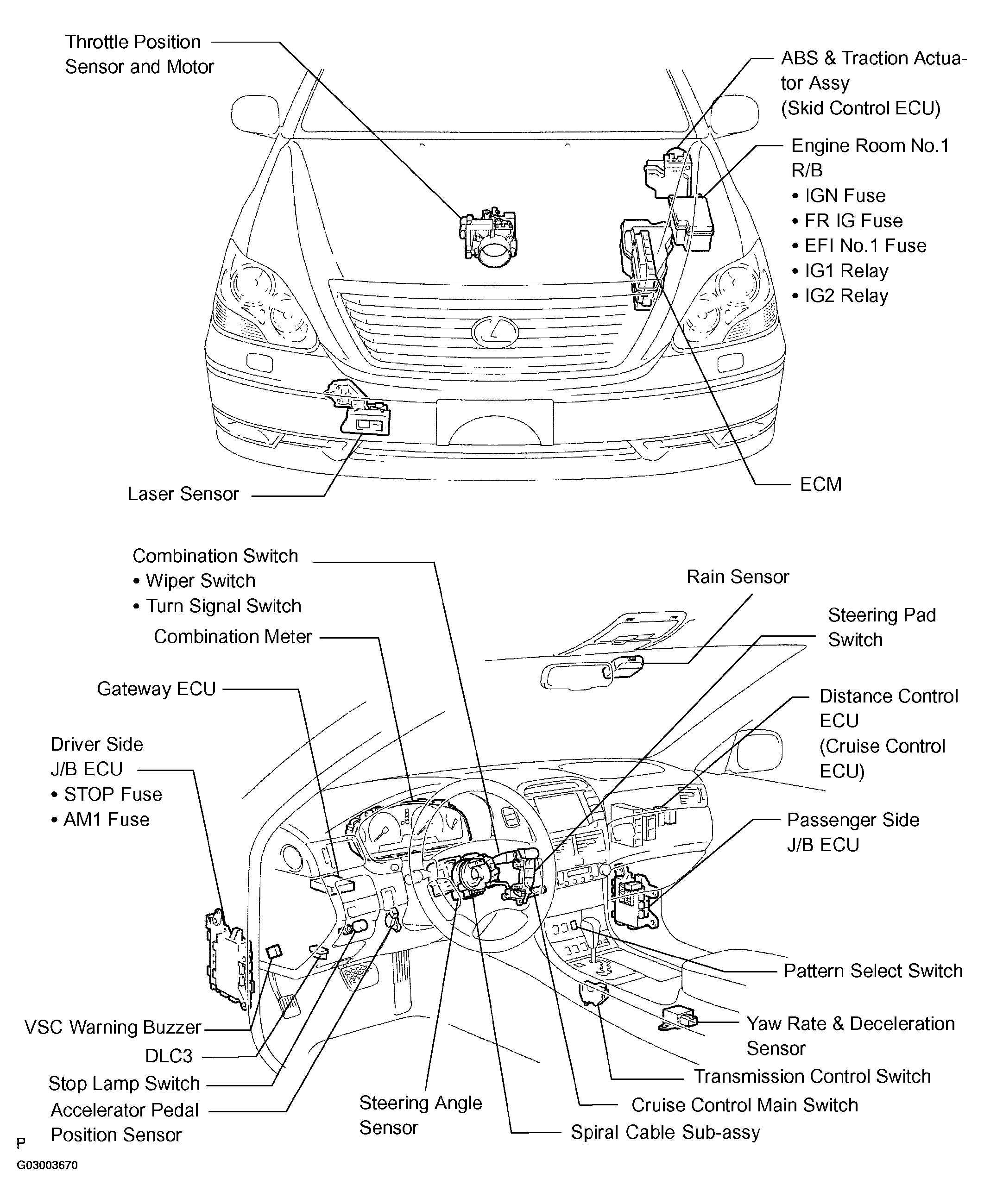

Fig 1: Identifying Dynamic Laser Cruise Control System Electrical Location (1 Of 2)
G03003670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Dynamic Laser Cruise Control System Electrical Location (2 Of 2)
G03003671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
