Cruise Control System - Diagnostics
>>
System Diagram
System Diagram

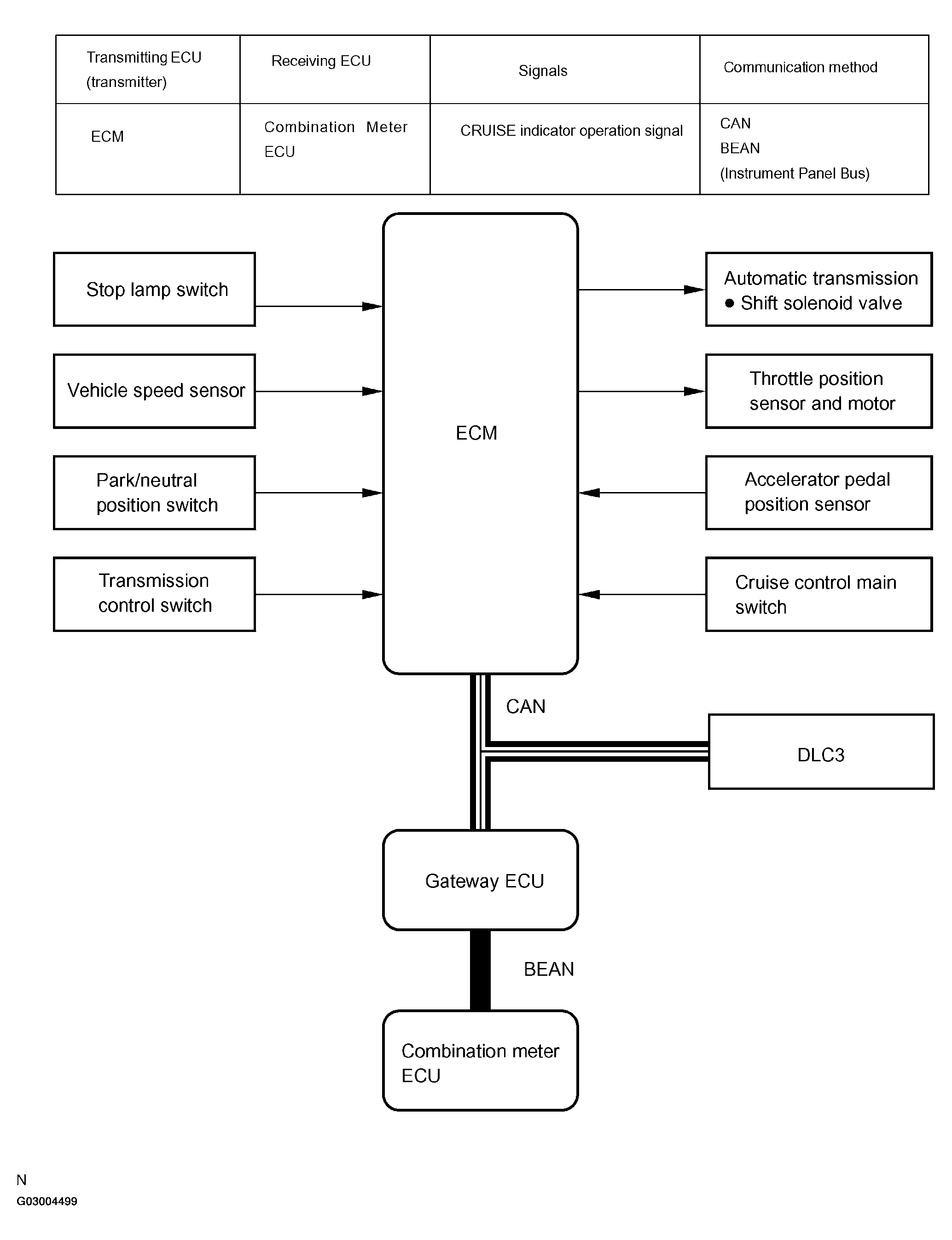

Fig 1: System Diagram - Cruise Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
