DTC B1237, B1238: Jam Protection Limit Switch Circuit On Rear Left Door, Jam Protection Pulse Switch Circuit On Rear Left Door
>>
Circuit Description
Circuit Description
These DTCs are output when the power window motor rear LH is malfunctioning.

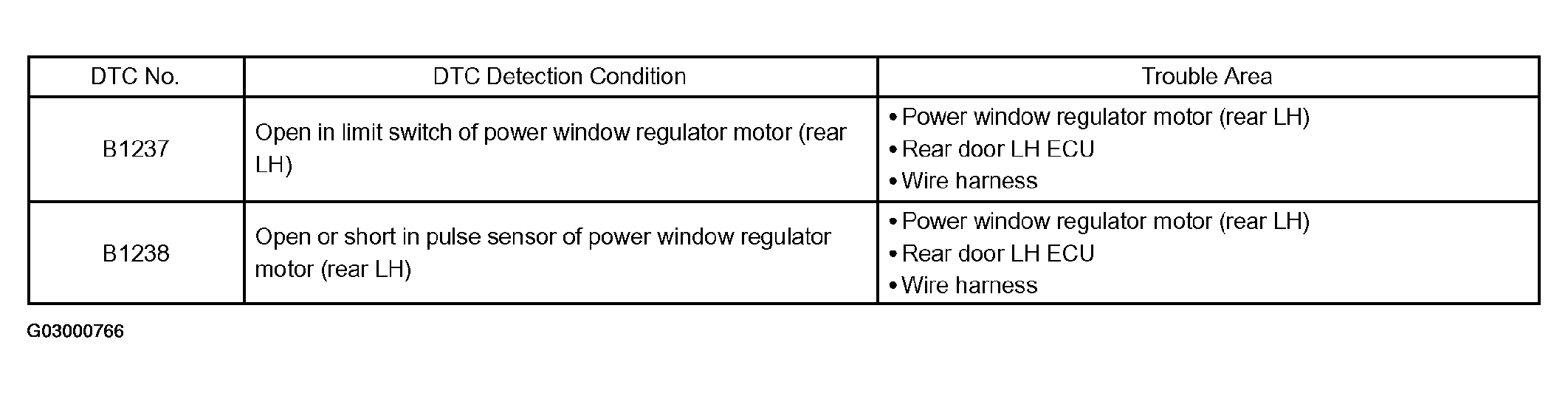

Fig 1: DTC - B1237 And B1238 Trouble Detection Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
