Diagnostic Trouble Code Chart

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table below, and then proceed to the page given for that circuit.

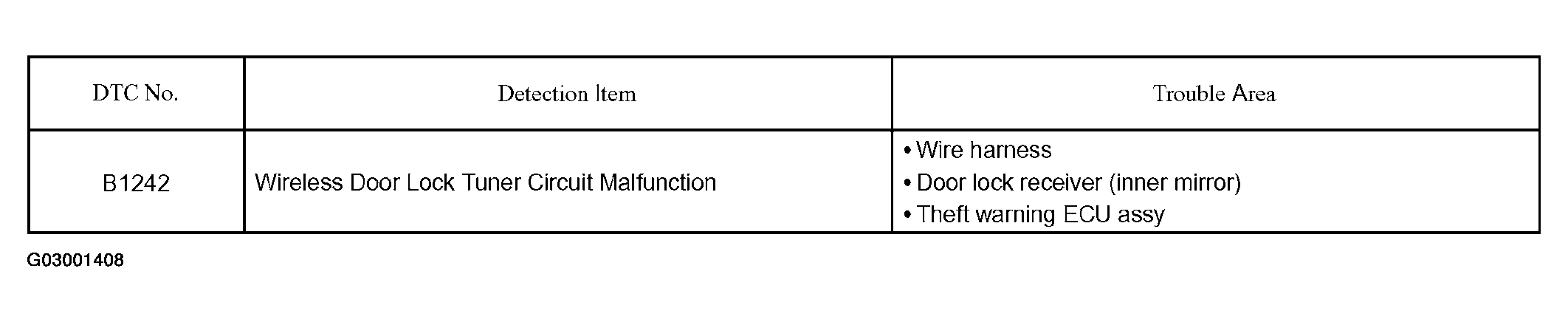

Fig 1: Diagnostic Trouble Code Chart
G03001408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
