Power Source Circuit (Navigation Ecu): Wiring Diagram

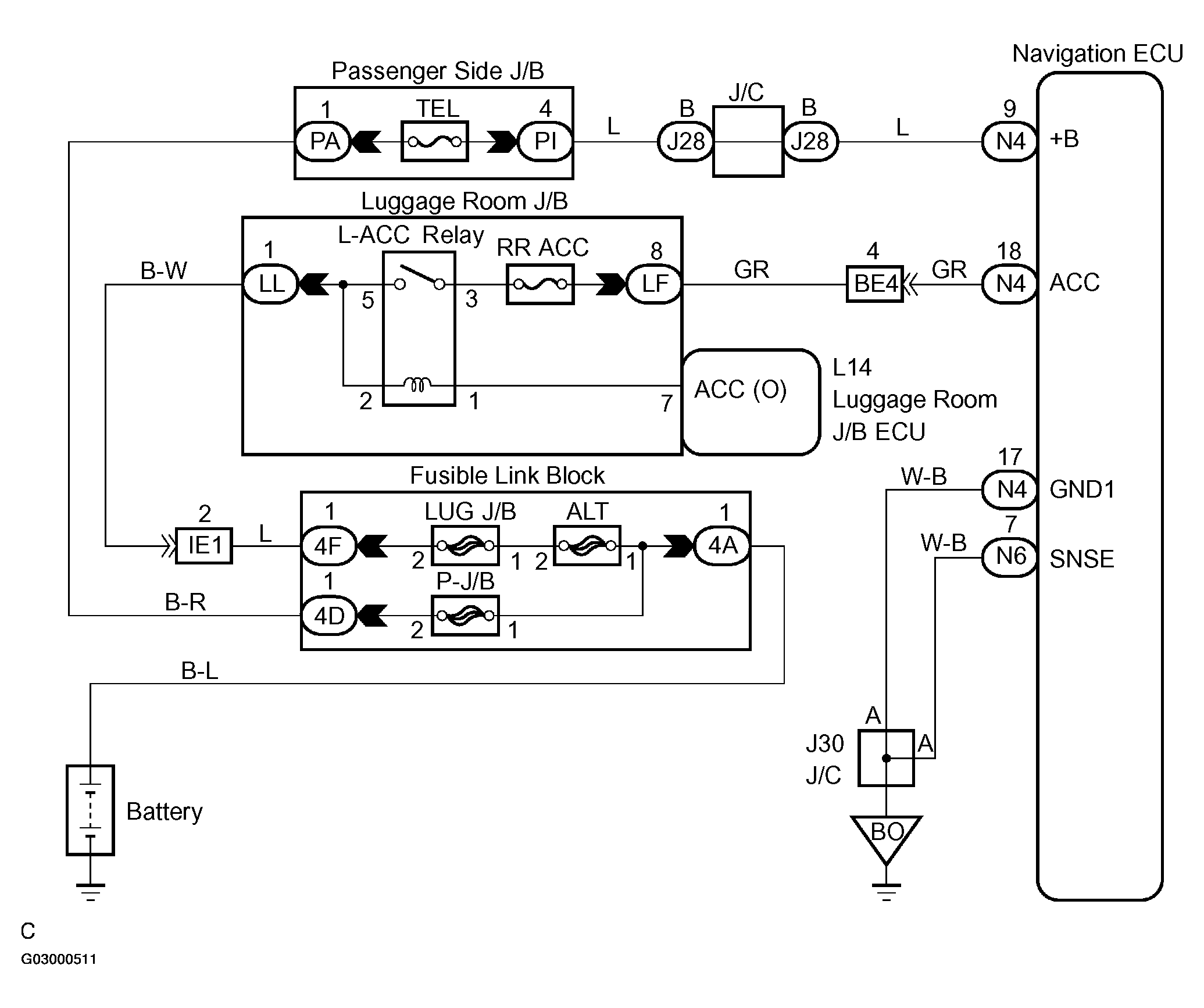

Fig 1: Identifying Navigation ECU Wiring Diagram

G03000511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
