Circuit Description

This circuit detects the yaw rate of the vehicle and transmits its signal to the skid control ECU and distance control ECU.

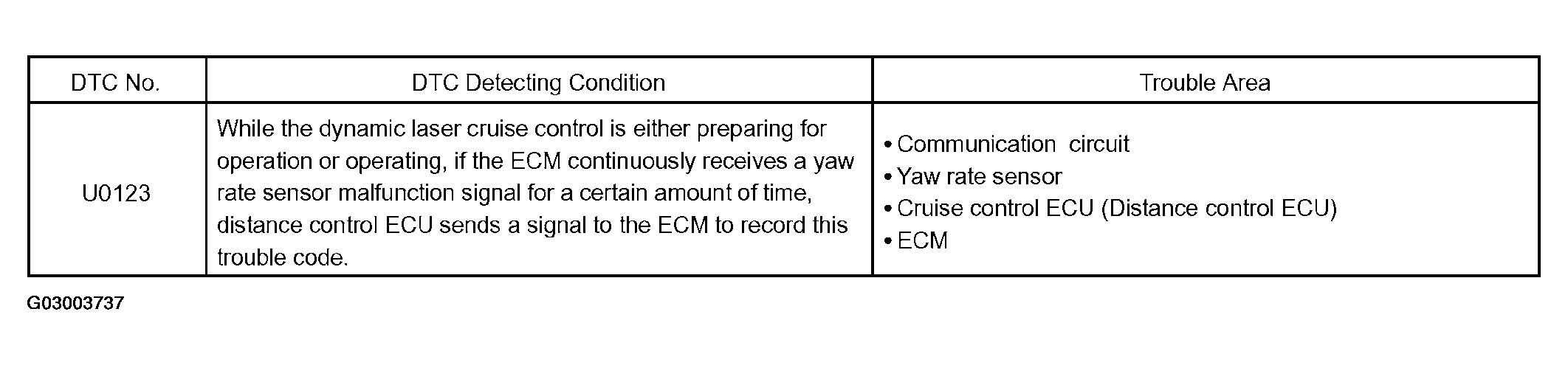

Fig 1: DTC U0123 Problem Symptom Diagnostic Chart
G03003737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
