Circuit Description

There may be an open circuit in the CAN main bus line and/or the DLC3 sub bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 Ω or more.

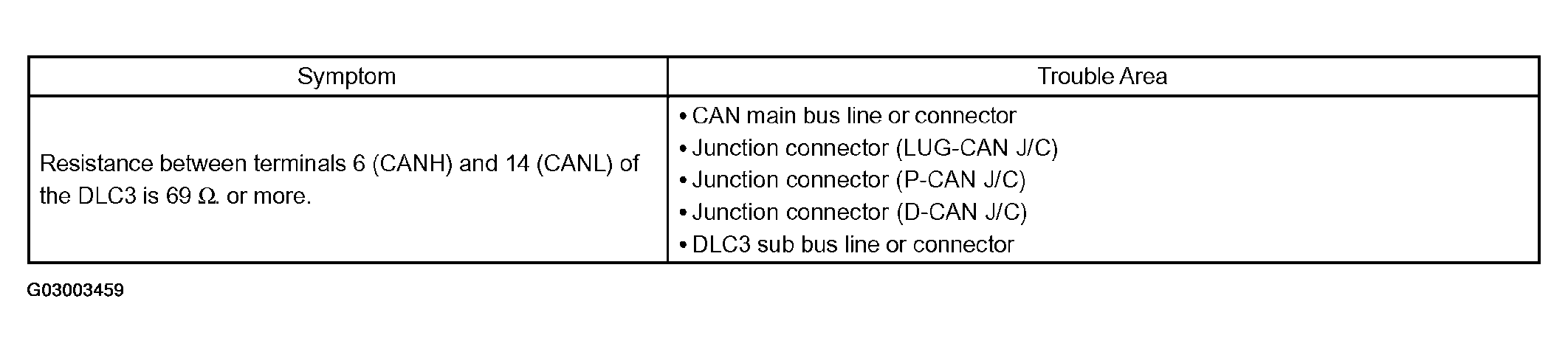

Fig 1: Problem Symptom Diagnostic Chart
G03003459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
