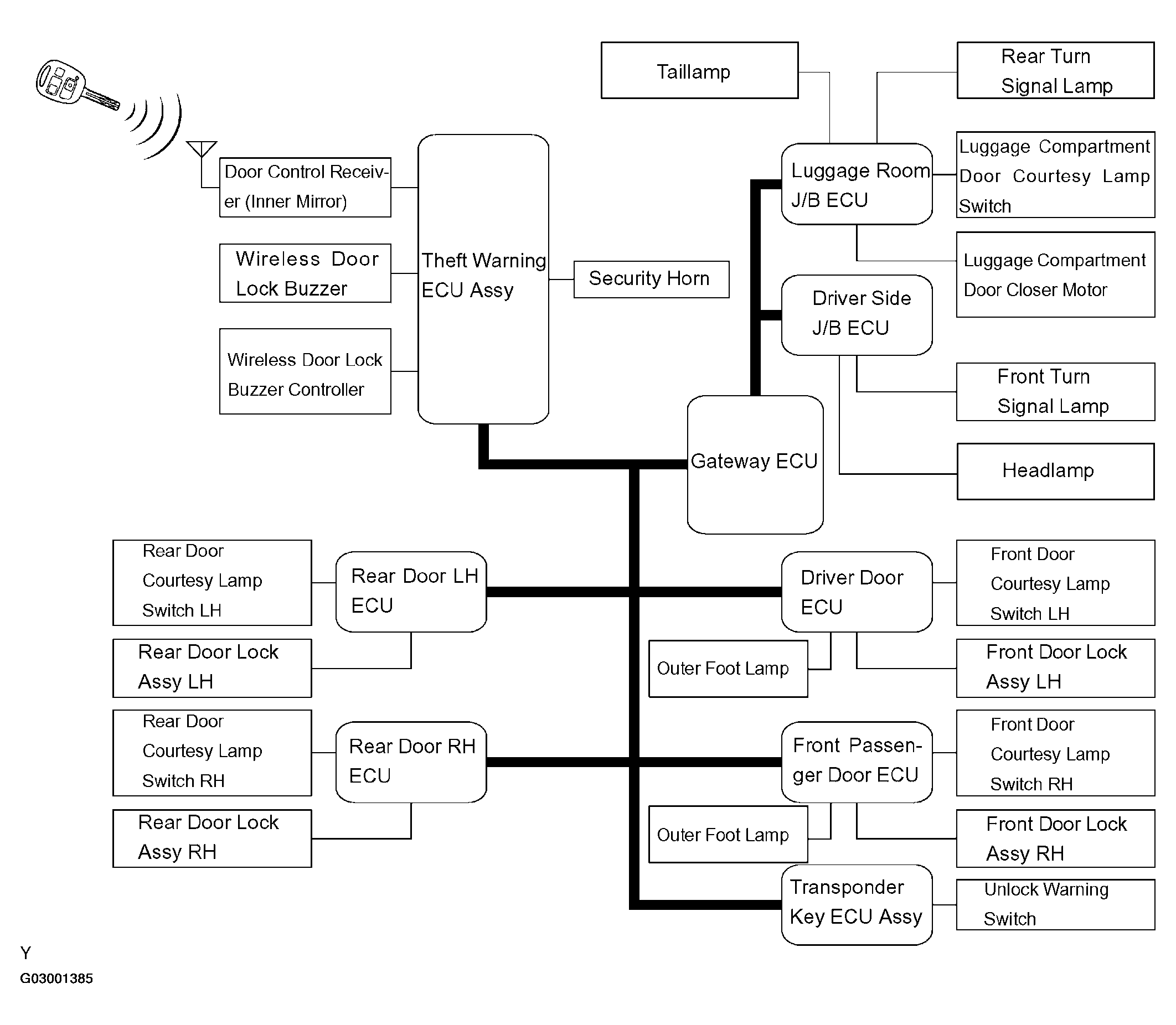

Home >> Lexus >> 2005 >> LS 430 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Wireless Door Lock Control System (W/O Smart Key) - Diagnostics >> Wireless Door Lock Control System (W/O Smart Key System) >> System Diagram
