Ecu Power Source Circuit: Wiring Diagram

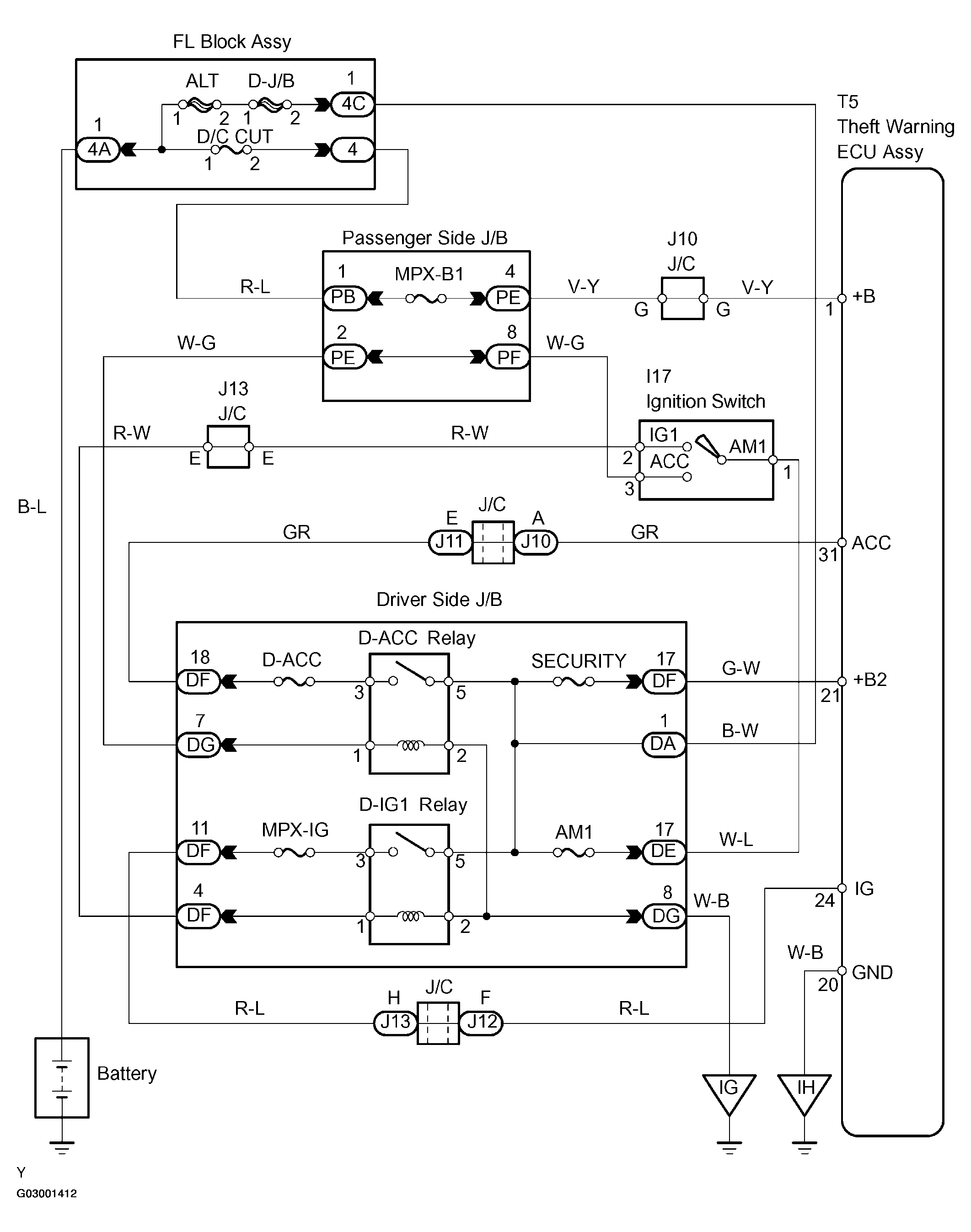

Fig 1: ECU Power Source Wiring Diagram

G03001412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
