Output Shaft: Components

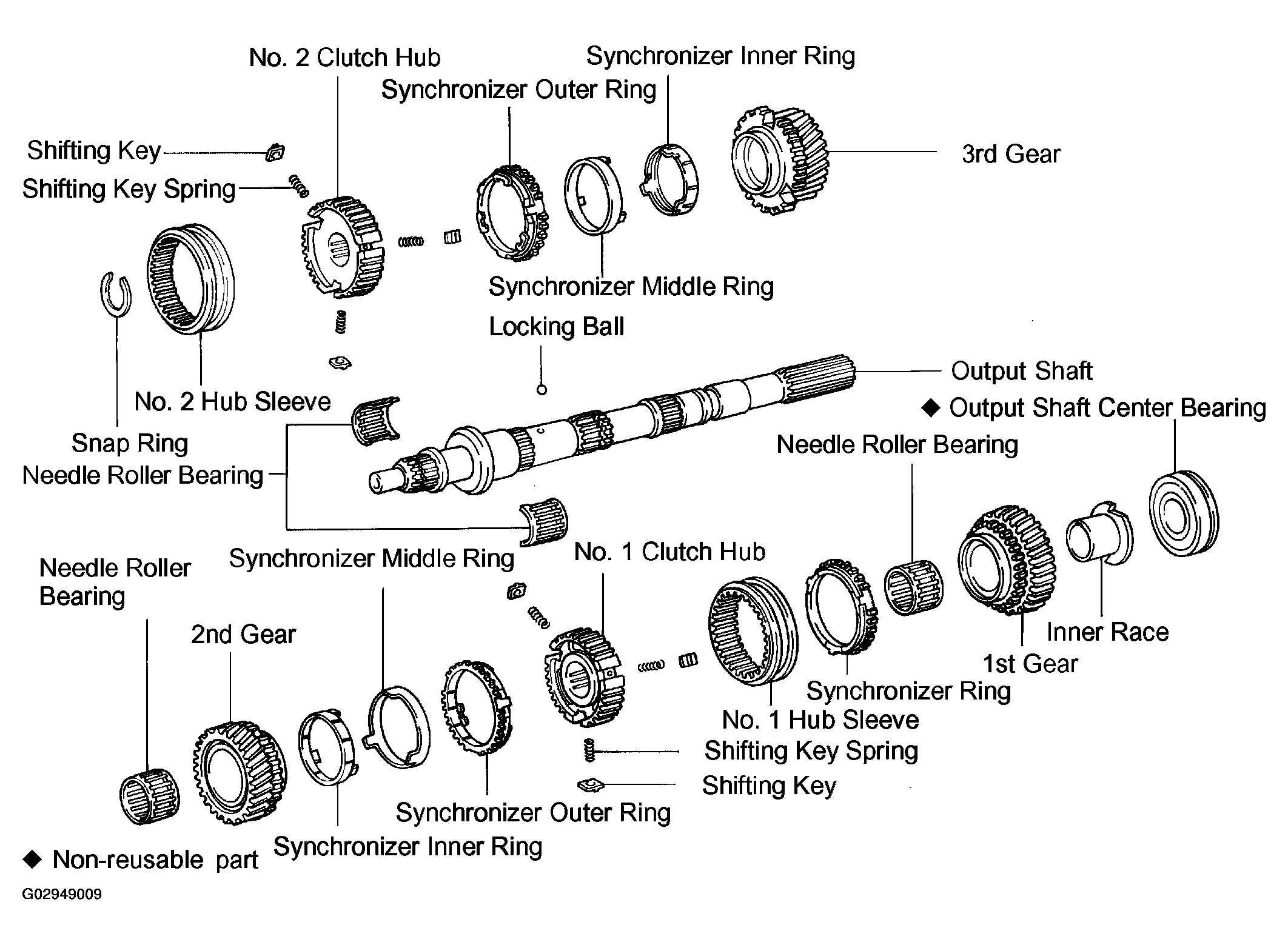

Fig 1: Exploded View Of Output Shaft

G02949009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
